NetWaySP1BTWP Series
802.3bt Media Converter/Injectors
with Integral Power
Models Include:

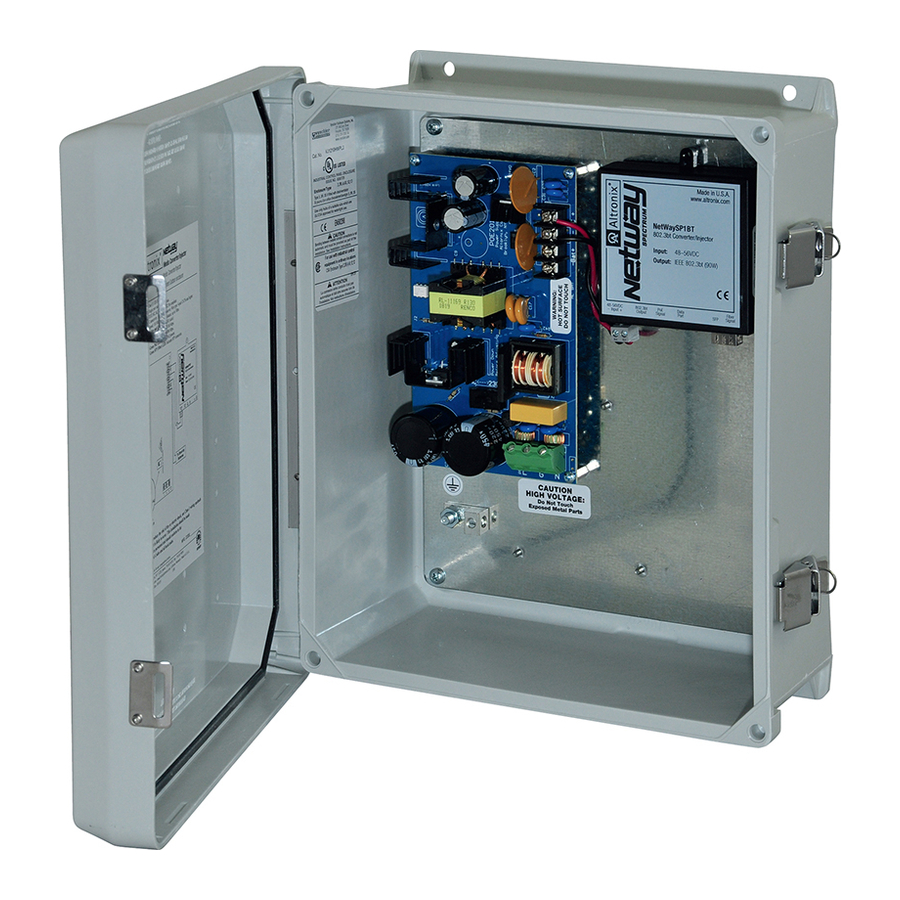

NetWaySP1BTWP
- 802.3bt Media Converter/Injector with Integral Power.
- NEMA4/4X rated outdoor enclosure.
NetWaySP1BTWPX
- 802.3bt Media Converter/Injector with Integral Power.
- NEMA4/4X rated outdoor enclosure.
- Accommodates up to four (4) 12VDC/4AH batteries.
Installation Guide
DOC#: NetWaySP1BTPWP Rev. 032620
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
More than just power.
TM
Advertisement
Table of Contents
Related Manuals for Altronix NetWaySP1BTWP Series
Summary of Contents for Altronix NetWaySP1BTWP Series
- Page 1 NetWaySP1BTWP Series 802.3bt Media Converter/Injectors with Integral Power Models Include: NetWaySP1BTWP - 802.3bt Media Converter/Injector with Integral Power. - NEMA4/4X rated outdoor enclosure. NetWaySP1BTWPX - 802.3bt Media Converter/Injector with Integral Power. - NEMA4/4X rated outdoor enclosure. - Accommodates up to four (4) 12VDC/4AH batteries.
-
Page 2: Table Of Contents
Recommended Altronix SFP Modules ........ -
Page 3: Overview
Overview: Altronix NetWaySP1BT Series 802.3bt media converter/injectors provide a single 802.3bt (4PPoE) port up to 90W and accommodate Fiber (1000Base-X/SX/LX) or structured cable to transmit data. Units can be deployed with structured cable, conventional single/multimode fiber or composite cable (fiber + copper combined). -
Page 4: Installation Instructions
Installation Instructions: Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having jurisdiction. All units should be installed by a trained service personnel. Installation: 1. Remove backplane from enclosure prior to drilling. Do not discard hardware. Note: Make sure that hardware will not interfere with components of the circuit board. -
Page 5: Netwaysp1Btwp
NetWaySP1BTWP Fig. 2 NetWaySP1BT 802.3bt Converter/Injector Input: 48–56VDC Output: IEEE 802.3bt (90W) Fig. 2a 48-56VDC 802.3bt Fiber Data 115VAC -- Input + Output Signal Signal Port 230VAC Ground 115/230VAC Input To stand-by batteries Ground Lug NetWaySP1BT Series Powered - 5 -... -
Page 6: Netwaysp1Btwpx
NetWaySP1BTWPX Fig. 3 Optional rechargeable Optional rechargeable Optional rechargeable Optional rechargeable 12VDC/4AH battery 12VDC/4AH battery 12VDC/4AH battery 12VDC/4AH battery NetWaySP1BT 802.3bt Converter/Injector Input: 48–56VDC Output: IEEE 802.3bt (90W) Fig. 3a 48-56VDC 802.3bt Fiber Data -- Input + Output Signal Signal 115VAC Port 230VAC... -
Page 7: Typical Application
Typical Application: Fig. 4 NetWaySP1BT NetWaySP1BT 802.3bt Converter/Injector Converts Ethernet or Fiber to Input: 48–56VDC Output: IEEE 802.3bt (90W) 802.3bt PoE port Factory connected to 48-56VDC 802.3bt Data Fiber -- Input + Output Signal Port Signal power supply Fiber PoE+ (90W) PTZ Data from Midspan/Endspan CAT5e/6 CAT5e/6... -
Page 8: Wall Mount Installation
This installation should be made by qualified service personnel. This product contains no serviceable parts. PMK1 and PMK2 outdoor pole mount kits are designed to simplify the installation of Altronix outdoor rated power supplies and accessories housed in models WP1, WP2, WP3 and WP4 NEMA rated enclosures. PMK1 and PMK2 can be mounted on 2”... - Page 9 NetWaySP1BTWP Enclosure Drawing and Dimensions (H x W x D approx.): 13.31” x 11.31” x 5.59” (338.1mm x 287.3mm x 142mm) FRONT VIEW RIGHT SIDE VIEW 11.31” (287.3mm) 3.96” (100.6mm) FRONT VIEW COVER REMOVED END VIEW 10.75” (273.1mm) 10.00” (254mm) STAINLESS STEEL PIANO HINGE 8.25”...
-
Page 10: Mechanical Drawing And Dimensions
NetWaySP1BTWPX Mechanical Drawing and Dimensions (H x W x D approx.): 17.53” x 15.3” x 6.67” (445.3mm x 388.6mm x 169.4mm) FRONT VIEW RIGHT SIDE VIEW 1.67” (42.4mm) 15.3” (388.6mm) 5.00” (127mm) 316 STAINLESS STEEL PADLOCK LATCH FRONT VIEW COVER REMOVED ATTACHED WITH RIVETS. - Page 11 Notes: NetWaySP1BT Series Powered - 11 -...
- Page 12 Notes: Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. MEMBER IINetWaySP1BT Series Powered G08U...
