NetWaySP1BT Series
802.3bt Media Converter/Injectors
Models Include:

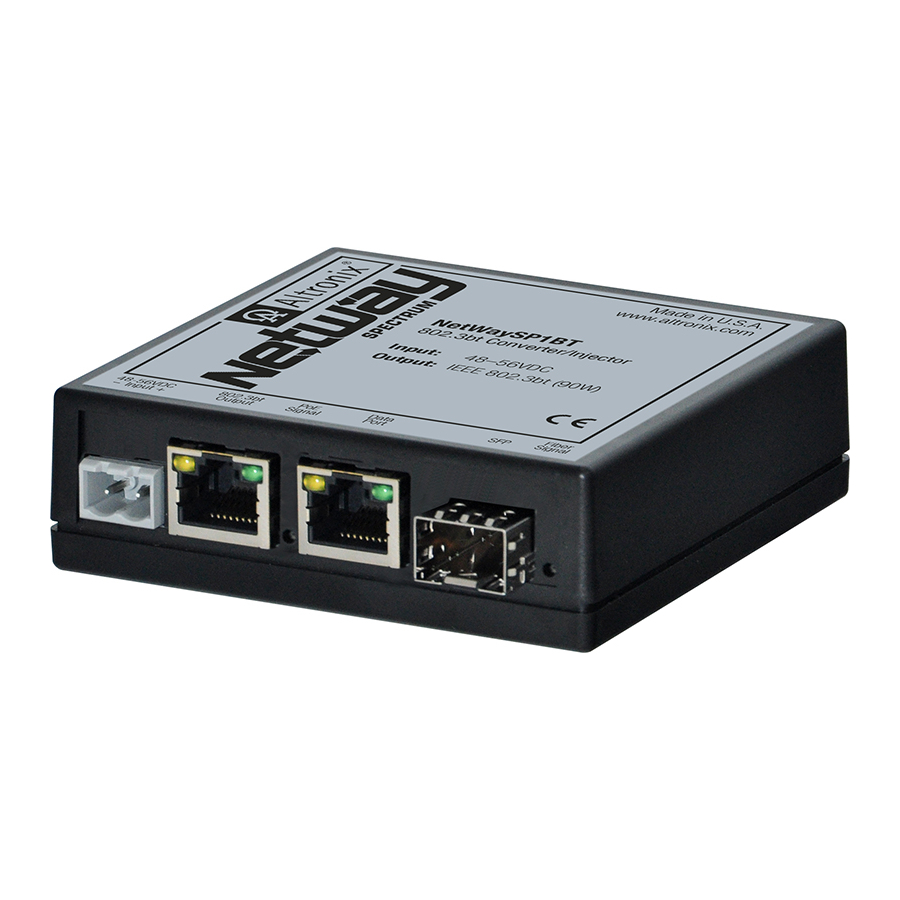

NetWaySP1BT
- 802.3bt Media Converter/Injector
- Modular plastic case.
NetWaySP1BTWPN
- 802.3bt Media Converter/Injector.
- NEMA4/4X rated outdoor enclosure.
Installation Guide
DOC#: NetWaySP1BT Rev. 032620
More than just power.
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NetWaySP1BT Series and is the answer not in the manual?

Questions and answers

Related Manuals for Altronix NetWaySP1BT Series

Summary of Contents for Altronix NetWaySP1BT Series

  • Page 1 NetWaySP1BT Series 802.3bt Media Converter/Injectors Models Include: NetWaySP1BT - 802.3bt Media Converter/Injector - Modular plastic case. NetWaySP1BTWPN - 802.3bt Media Converter/Injector. - NEMA4/4X rated outdoor enclosure. Installation Guide DOC#: NetWaySP1BT Rev. 032620 More than just power.

  • Page 2: Table Of Contents

    Recommended Altronix Power Sourcing Equipment . . . . . . . . . . . . . . . . . .

  • Page 3: Overview

    Filtered and electronically regulated output . Short circuit and thermal overload protection . Recommended Altronix SFP Modules: Altronix P1MM, P1SM10, P1AB2K and P1GCE are hot-pluggable SFP fiber transceiver modules and are readily usable with all Altronix Spectrum fiber optic equipment for 1Gb transmission rates .

  • Page 4: Installation Instructions

    Data -- Input + Output Signal Signal Port Output: IEEE 802.3bt (90W) 48-56VDC -- Input + 48-56VDC 802.3bt Fiber Data -- Input + Output Signal Signal Port Ground Optional Earth Ground 48-56VDC -- Input + - 4 - NetWaySP1BT Series...

  • Page 5: Typical Application

    Converts Ethernet or Fiber to Input: 48–56VDC Output: IEEE 802.3bt (90W) 802.3bt PoE port From power supply 48-56VDC 802.3bt Data Fiber Fiber -- Input + Output Signal Port Signal PoE+ (90W) PTZ Data from Midspan/Endspan CAT5e/6 CAT5e/6 NetWaySP1BT Series - 5 -...

  • Page 6: Technical Specifications

    Product: 0 .25 lb . (0 .11 kg) | Shipping: 0 .3 lb . (0 .14 kg) . Weights (approx.) NetWaySP1BTWPN: Product: 3 .7 lb . (1 .68 kg) | Shipping: 5 lb . (2 .27 kg) . - 6 - NetWaySP1BT Series...

  • Page 7: Wall Mount Installation

    This installation should be made by qualified service personnel . This product contains no serviceable parts . PMK1 outdoor pole mount kits is designed to simplify the installation of Altronix outdoor rated power supplies and acces- sories housed in models WP1, WP3 and WP4 NEMA rated enclosures . PMK1 can be mounted on 2” to 8” (50 .8mm to 203 .2mm) diameter round or 5”...

  • Page 8: Mechanical Drawing And Dimensions

    4 Places Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. IINetWaySP1BT Series F17U MEMBER...

This manual is also suitable for:

Netwaysp1btNetwaysp1btwpn
