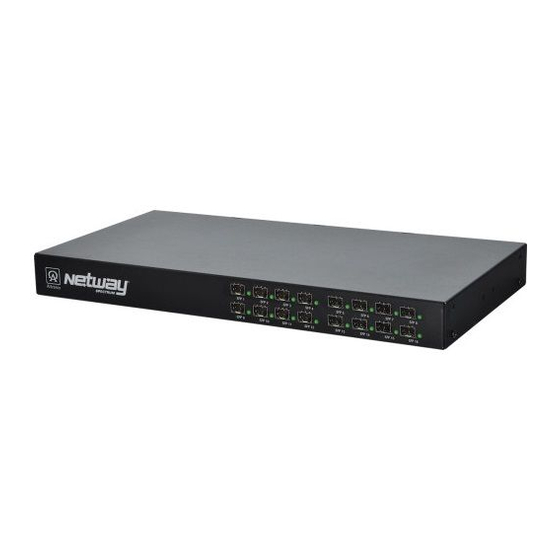

- Page 1 All manuals and user guides at all-guides.com Media Converters Installation Guide Models Include: NetWaySP8A - 8-Port Media Converter/Repeater NetWaySP16A - 16-Port Media Converter/Repeater More than just power. DOC#: NETSP8A_16A Rev. 060517...
- Page 2 5. Connect fiber optic cable to a fiber SFP module. Connect the module to the port(s) marked [SFP1-SFP8], [SFP1-SFP16] on the NetWaySP8A/16A. Connect the other end of fiber cable to an SFP module of a remote device (Fig. 1a, pg. 2). SFP LED will illuminate indicating data connection (Fig. 1b, pg. 2).
- Page 3 All manuals and user guides at all-guides.com Recommended Altronix SFP Modules: Altronix P1MM and P1SM10 are hot-pluggable SFP fiber transceiver modules and are readily usable with all Altronix Spectrum fiber optic equipment for 1Gb transmission rates. P1MM - For use with Multi-Mode Fiber for distances up to 550m.
- Page 4 Four (4) rubber pads. Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. MEMBER IINetWaySP8A/NetWaySP16A...
