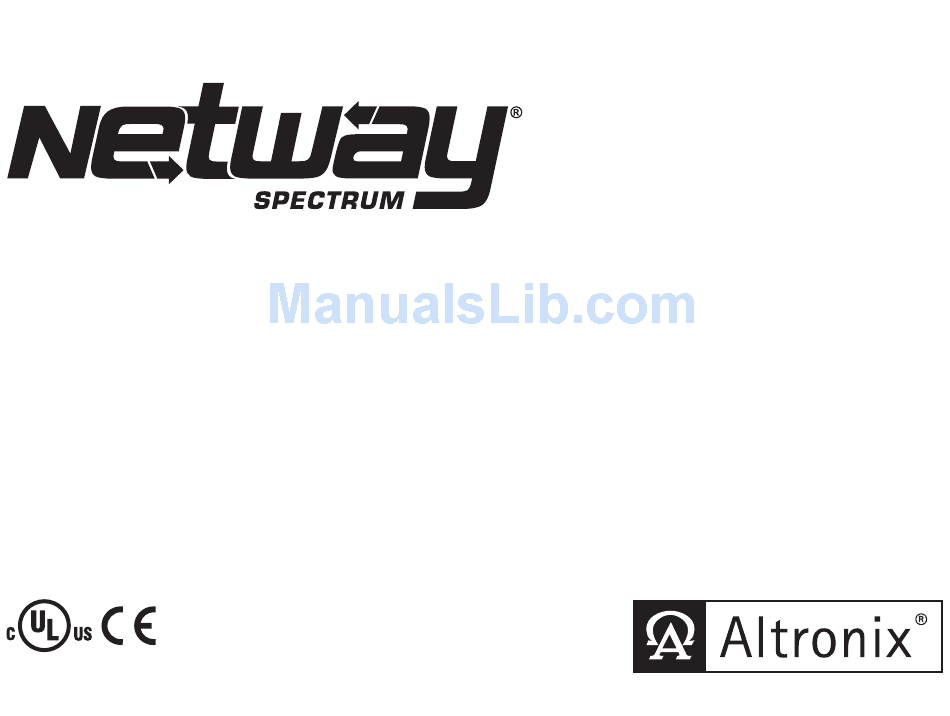

Page 1: Installation Guide

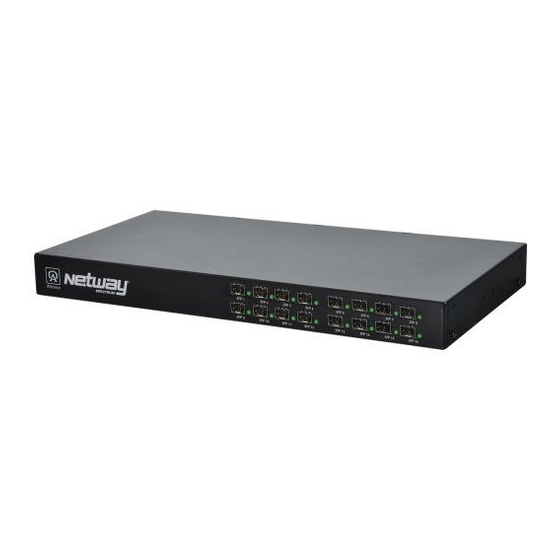

Media Converters Installation Guide NetWaySP8A - 8-Port Media Converter/Repeater NetWaySP16A - 16-Port Media Converter/Repeater I.T.E. 43KC More than just power.™ DOC#: NETSP8A_16A Rev. 060517... -
Page 2: Specifications
Do not connect to a receptacle controlled by a switch. 4. Connect structured cable from port(s) marked [1-8 or 1-16] on NetWaySP8A/16A to the corresponding input(s) of an UL Listed ethernet switch (Fig. 1c, pg. 2). 5. Connect fiber optic cable to a fiber SFP module. Connect the module to the port(s) marked [SFP1-SFP8, SFP1-SFP16] on the NetWaySP8A/16A. Connect the other end of fiber cable to an SFP module of a remote device (Fig. -
Page 3: Typical Application
Parameter Description Number of Ports NetWaySP8A: Eight (8) Gigabit SFP Ports. Eight (8) ports 10/100/1000Mbps Ethernet ports. (SFP / Ethernet) NetWaySP16A: Sixteen (16) Gigabit SFP Ports. Sixteen (16) ports 10/100/1000Mbps Ethernet ports. NetWaySP8A: 115VAC, 60Hz, 0.5A or 230VAC, 50/60Hz, 0.3A. -
Page 4: Mounting Options
Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A.
