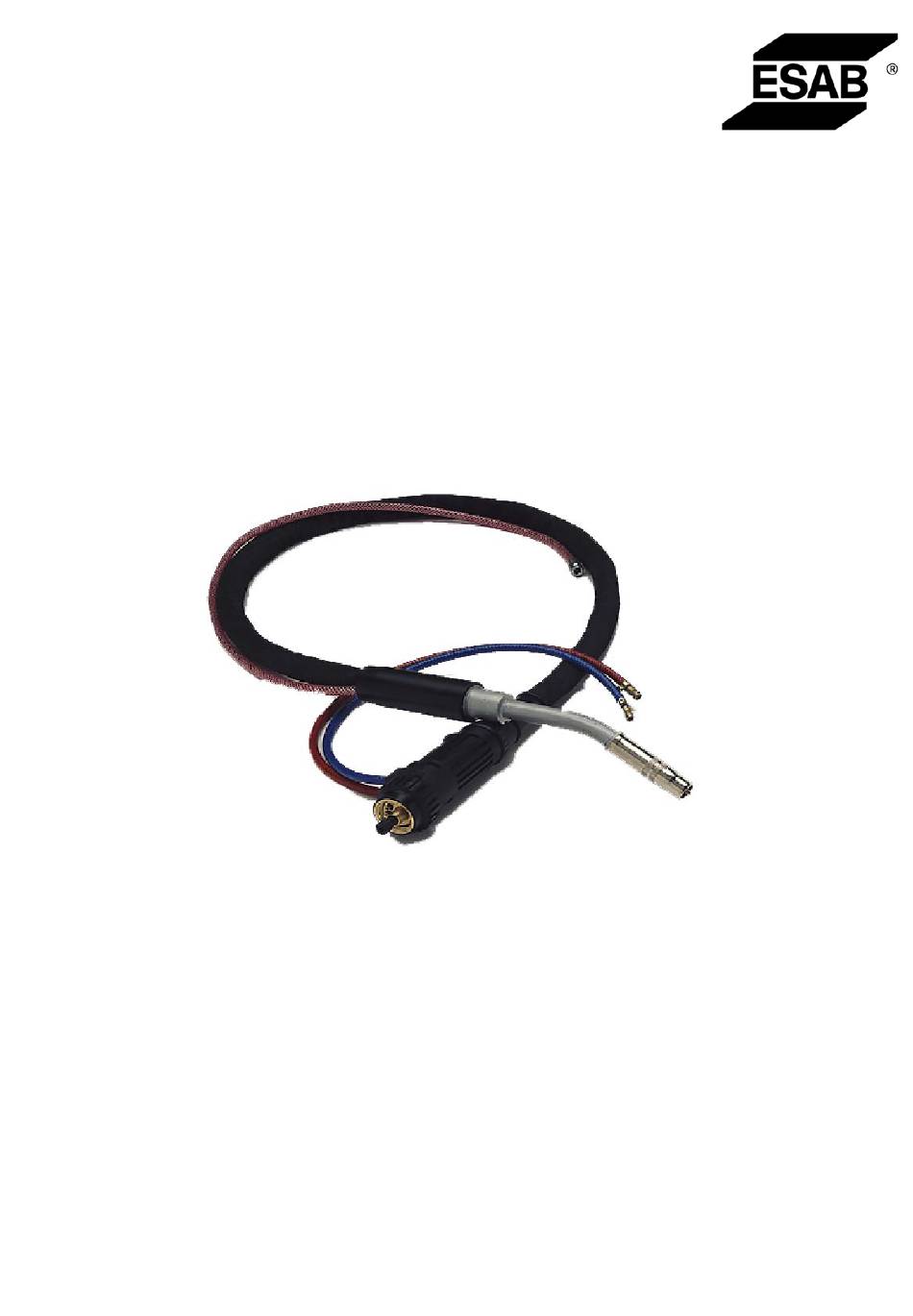

  • Page 1 PSF 315M/ME PSF 500M/ME PSF 410 MW Bruksanvisning Instrucciones de uso Brugsanvisning Istruzioni per l’uso Bruksanvisning Manual de instruções Käyttöohjeet Ïäçãßåò ÷ñÞóåùò Instrukcja obs³ugi Instruction manual Betriebsanweisung Návod k pou¾ívání Kezelési utasítások Manuel d’instructions Gebruiksaanwijzing 0457 342 001 031104 Valid from manufacturing week 217...
  • Page 2 SVENSKA ..........DANSK .

  • Page 3: Table Of Contents

    ENGLISH 1 DIRECTIVE ............2 SAFETY .

  • Page 4: Directive

    DIRECTIVE DECLARATION OF CONFORMITY ESAB Welding Equipment AB, S--695 81 Laxå, Sweden, gives its unreserved guarantee that welding gun PSF 315M/ME, PSF 500M/ME, PSF 410MW from number 217 complies with standard EN 60974--7, in accordance with the requirements of directive (73/23/EEC).

  • Page 5: Introduction

    S Lubrication and maintenance must not be carried out on the equipment during operation. INTRODUCTION The PSF 315M, PSF 315ME, PSF 500M and PSF 500ME are a series of self--cooled welding guns, while the PSF 410MW is water--cooled. The welding guns have been developed for use in robot applications or mechanised welding.

  • Page 6: Technical Data

    Changing electrode guide Replacing electrode conductors 5.1.1 Install the correct nipple ESAB Connection EURO Connection Note! 2 nipples are supplied with each welding rod guide, 1 for an ESAB connection and 1 for a EURO connection. - - 34 - - bg11ea...

  • Page 7: Interchangeable Connectors

    5.1.2 Remove the gas cover and intermediate nozzle. 5.1.3 Install the welding rod guide in the hose assembly. a) Turn the connecting piece clockwise when you encounter resistance b) The welding rod guide goes in 5.1.4 Cut the welding rod guide to the correct length. When cutting, the welding gun should be extended with the welding rod guide fully inserted in the rear connection.

  • Page 8: Contact Nozzles

    Contact nozzles Contact nozzles are selected according to electrode diameter, type of buffer gas and the strength of the current being used. See table on page 118. The contact nozzles are initially selected with the guidance of the CO table. If seizing occurs in the event of high welding data with Argon or mixed gas, select on the basis of the MIX, AR table.

  • Page 9: Operation

    It is the obligation of the service unit which has carried out the service or repair work to make sure that the product still conforms to the said standard. Spare parts may be ordered through your nearest ESAB dealer, see the last page of this publication. When ordering, please state product type, serial number, designation and spare part number in accordance with the spare parts list.
  • Page 10 Applies to both Esab and Euro connection. Gilt für Esab-- und Europaanschluß. S’applique aux connexions Esab et Europe. Zowel Esab-- als Euro-- aansluiting zijn van gelding. Vale para las conexiones Esab y Euro. Per connessione Esab e tipo Europa. Relativo a Esab e a Ligação Euro.
  • Page 11 Welding Gun PSF 500 M 3.0 m, 25˚ ESAB Connenction Spare parts are to be ordered through the nearest ESAB agency as per the list on the back of the cover. Kindly indicate type of unit, serial number, denominations and ordering numbers according to the spare parts list.
  • Page 12 Argon or gas mixture, choose contact nozzle from the sprayarc table. Welding wire Contact tip Part Number Marked Short arc Spray arc Short/Spray- PSF 315M PSF 410MW, PSF 315ME PSF 500M/ME (0.6) 0468 500 001 W0.6 ESAB (0.8) 0468 500 002 0468 502 002 W0.8 ESAB (0.8)
  • Page 13 PSF 315 M/ME, 500 M/ME, 410 MW Edition 031104 Wire liner NO TAG Welding wire *) Teflon conduit incl. wear insert (steel) Wear insert separate 1.5 m Steel Teflon (Al) 0.6 mm 0366 550 898 0366 550 899 0366 550 880 0366 545 880 0368 742 880 0.8 mm...
  • Page 14 ESAB subsidiaries and representative offices Europe NORWAY Asia/Pacific Representative offices AS ESAB AUSTRIA BULGARIA CHINA Larvik ESAB Ges.m.b.H ESAB Representative Office Shanghai ESAB A/P Tel: +47 33 12 10 00 Vienna- -Liesing Sofia Shanghai Fax: +47 33 11 52 03...

This manual is also suitable for:
