4 CABLE CONNECTION

4.2 Power Cable Connection

When using the S5U1C60N15E on its own, it must be supplied with power (5 V DC, 3 A or more) from an
external source through the power cable.
When the S5U1C60N15E is connected to the ICE, power is supplied by the ICE; therefore, the power cable
is not necessary. Disconnect the power cable if it is already connected.

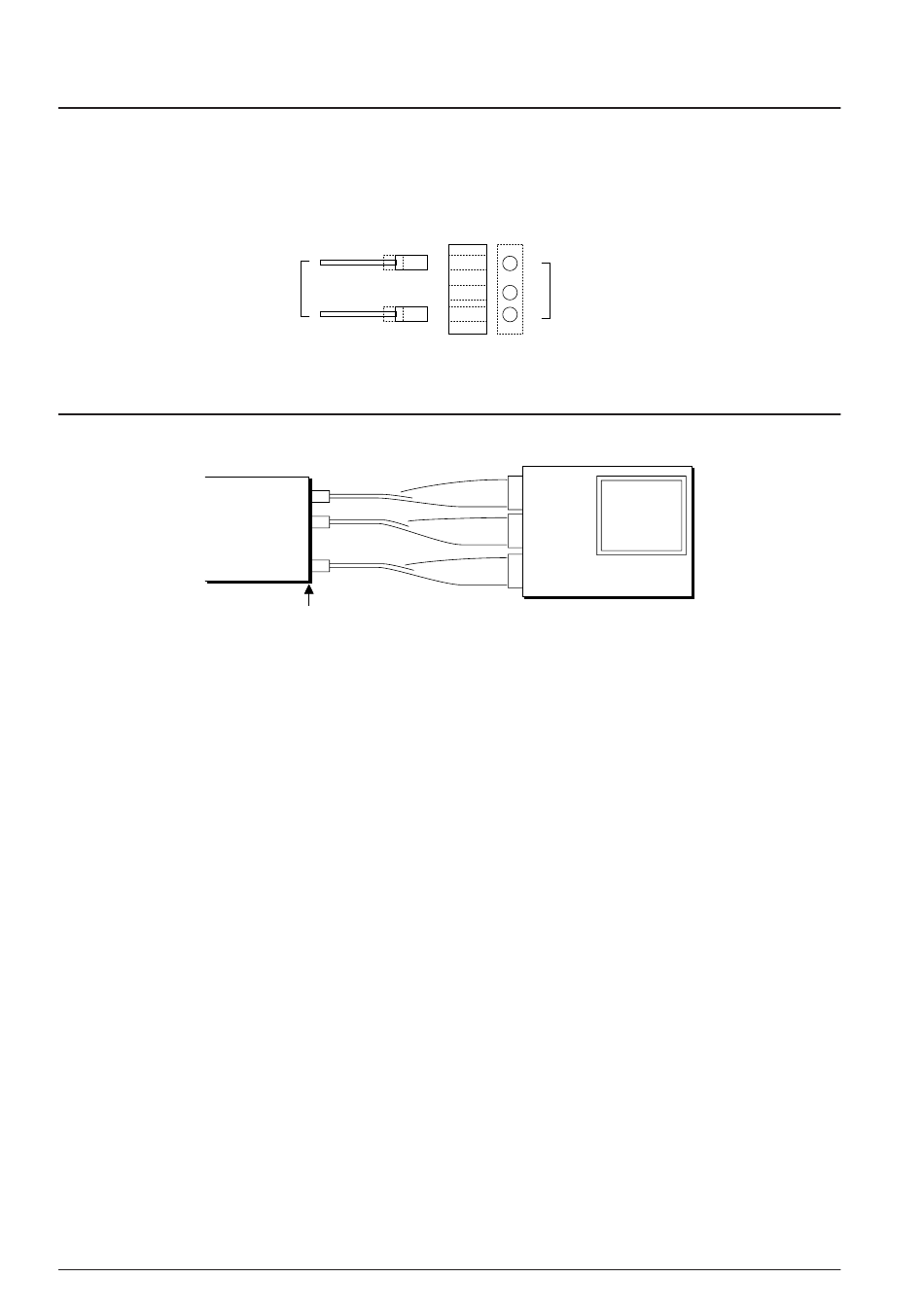

Figure 4.2.1 shows the connection of the power cable pins.
Connect to the
external power
supply

4.3 Connection to Target System

The I/O #0, I/O #1 and LCD #0 connectors are used to connect the S5U1C60N15E to the target system.
S5U1C60N15E
The signals output from the LCD #0 connector are the same as those of the actual IC at the function level.
Therefore, the S5U1C60N15E may be connected to the LCD of the target system without any changes.
8
Black
Red
Fig. 4.2.1 Connection of power cable pins
I/O #0
I/O cable
I/O #1
LCD #0
LCD cable
Front
Fig. 4.3.1 Connection of target system
EPSON
-
Connect to the
power connector
of the S5U1C60N15E
+
I/O
Target
connectors
system
LCD
connector
