4 CABLE CONNECTION

This section describes how to connect the power cable to the S5U1C60N15E, and the
S5U1C60N15E to the ICE and the target system.
Note: Turn the power of all equipment off before connecting or disconnecting cables.

4.1 Connection to ICE

The S5U1C60N15E is connected to the ICE by connecting the two interface cables (F1 and F5). Use
S5U1C60N15E connectors F1 and F5 with the projections facing outwards. Use ICE connectors F1 and F5
with the projections facing inwards (cable side).

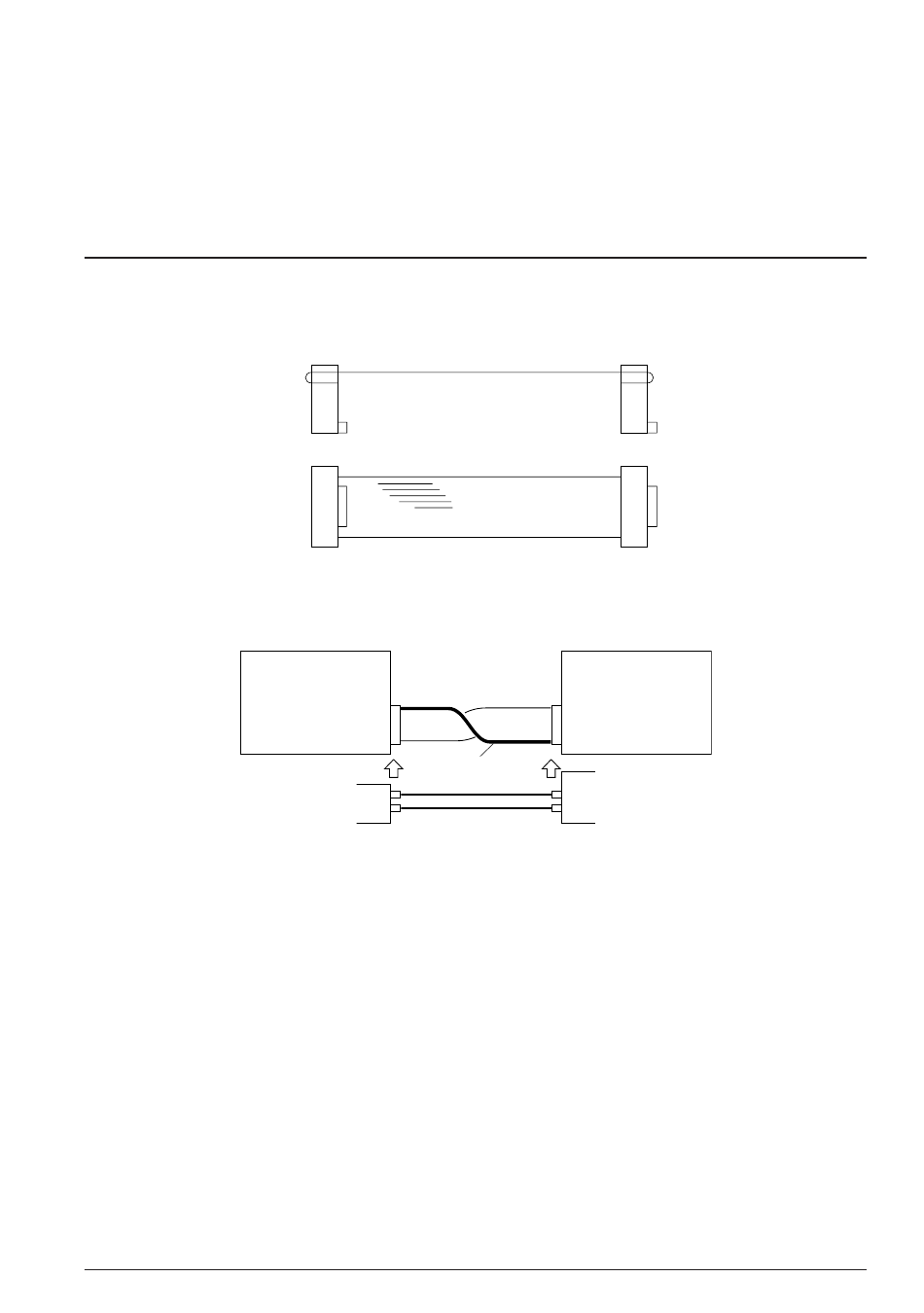

Figures 4.1.1 and 4.1.2 show the external view and connection diagram of the ICE interface cable.
ICE
Note: The S5U1C60N15E has an external power input connector for +5 V (V
these connectors unconnected when the S5U1C60N15E is connected to the ICE.
S5U1C60N15E MANUAL
(EVALUATION BOARD FOR S1C60N15)
2 1
: :
: :
: :
: :
: :
50 49
ICE side
Fig. 4.1.1 External view of the ICE interface cable
Red mark
F1 connector→
F5 connector→
Fig. 4.1.2 Connection diagram
EPSON
4 CABLE CONNECTION
2 1
: :
: :
:
:
: :
: :
50 49
S5U1C60N15E side
S5U1C60N15E
←F1 connector
←F5 connector
) and GND (V
DD
). Leave
SS
