2.3
Module Configuration
Partitions are constructed of a number of CPUs, memory, and I/O
modules. Each partition must have at least one of each type.

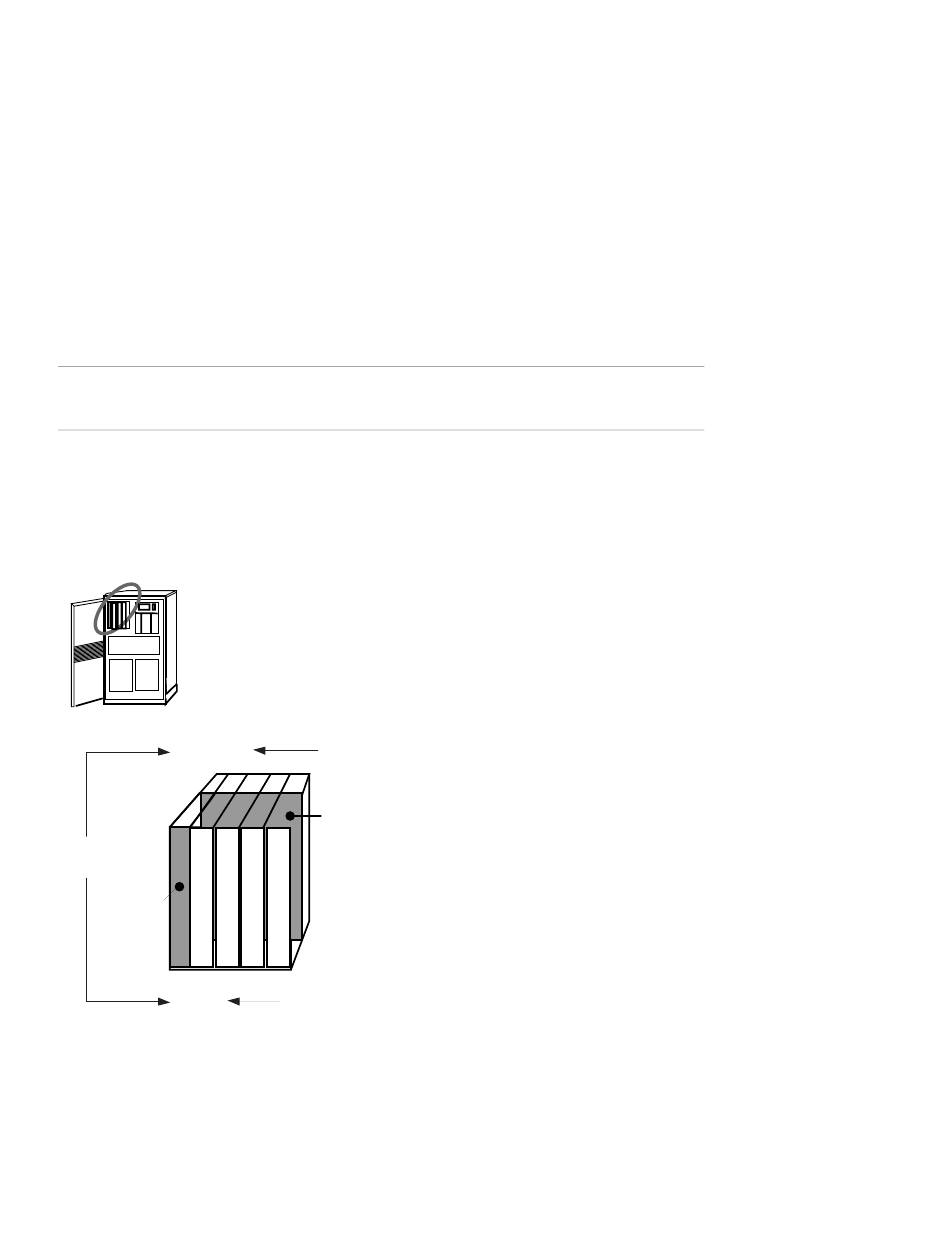

Figure 2–3 Module Configuration
AlphaServer GS140
Front
4 5 6 7 8
Memory
Modules
Power
Filter
3
2 1 0
2-6
Getting Started with Logical Partitions
I/O Modules
Centerplane
(TLSB)
Slot
Processor Modules
BX-0111F-99
