CONTROL SYSTEMS

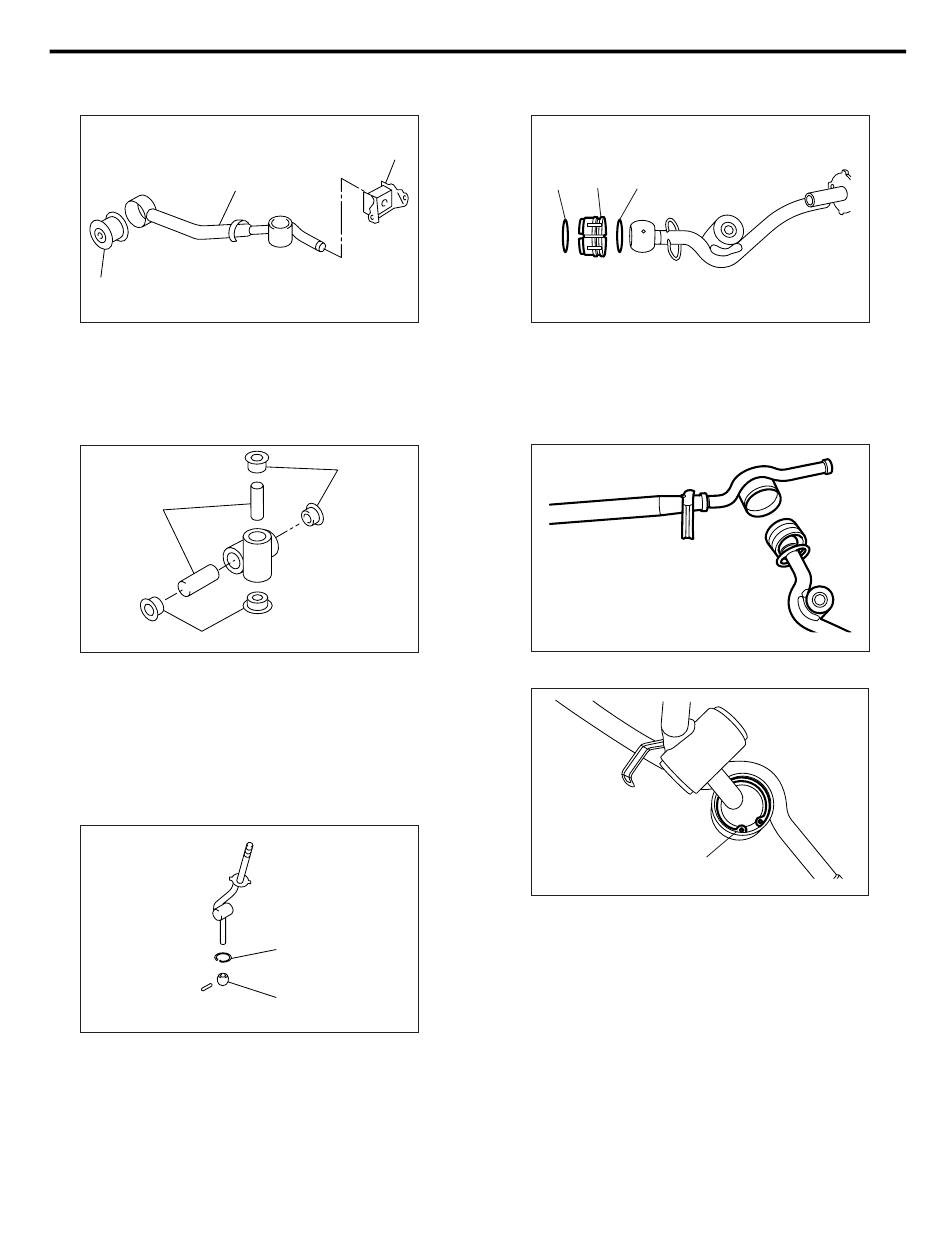

1) Mount the bushing and cushion rubber on the
stay.
(A)
(A) Bushing
(B) Stay
(C) Cushion rubber
2) Install the bushing and spacer to boss.
(B)
(A)
(A) Bushing
(B) Spacer
3) Install the snap ring to gear shift lever and install
the bushing.
NOTE:
Apply grease to the bushing.
(A) Bushing
(B) Snap ring
MT Gear Shift Lever
(C)
(B)
CS-00239
(A)
CS-00238
(B)
(A)
CS-00237
4) Apply grease to the bushing and O-ring, and
then install to the gear shift lever.
(A) (B)
(A) O-ring
(B) Bushing
5) Apply sufficient grease into boss, and then install
the gear shift lever to the stay.
6) Install the washer and snap ring.
(A) Snap ring
7) Insert the gear shift lever and rod into boot hole.
8) Install the rod.
CS-48
(A)
(A)
CS-00236
CS-00235
