9) Remove the plate assembly from vehicle body.
10) Lift-up the vehicle.
11) Remove the under cover.
12) Remove the rear exhaust pipe and muffler.
<Ref. to EX(H6DO)-7, REMOVAL, Rear Exhaust
Pipe.> <Ref. to EX(H6DO)-9, REMOVAL, Muffler.>
13) Remove the heat shield cover.
14) Remove the crossmember. <Ref. to 6MT-32,
REMOVAL, Transmission Mounting System.>

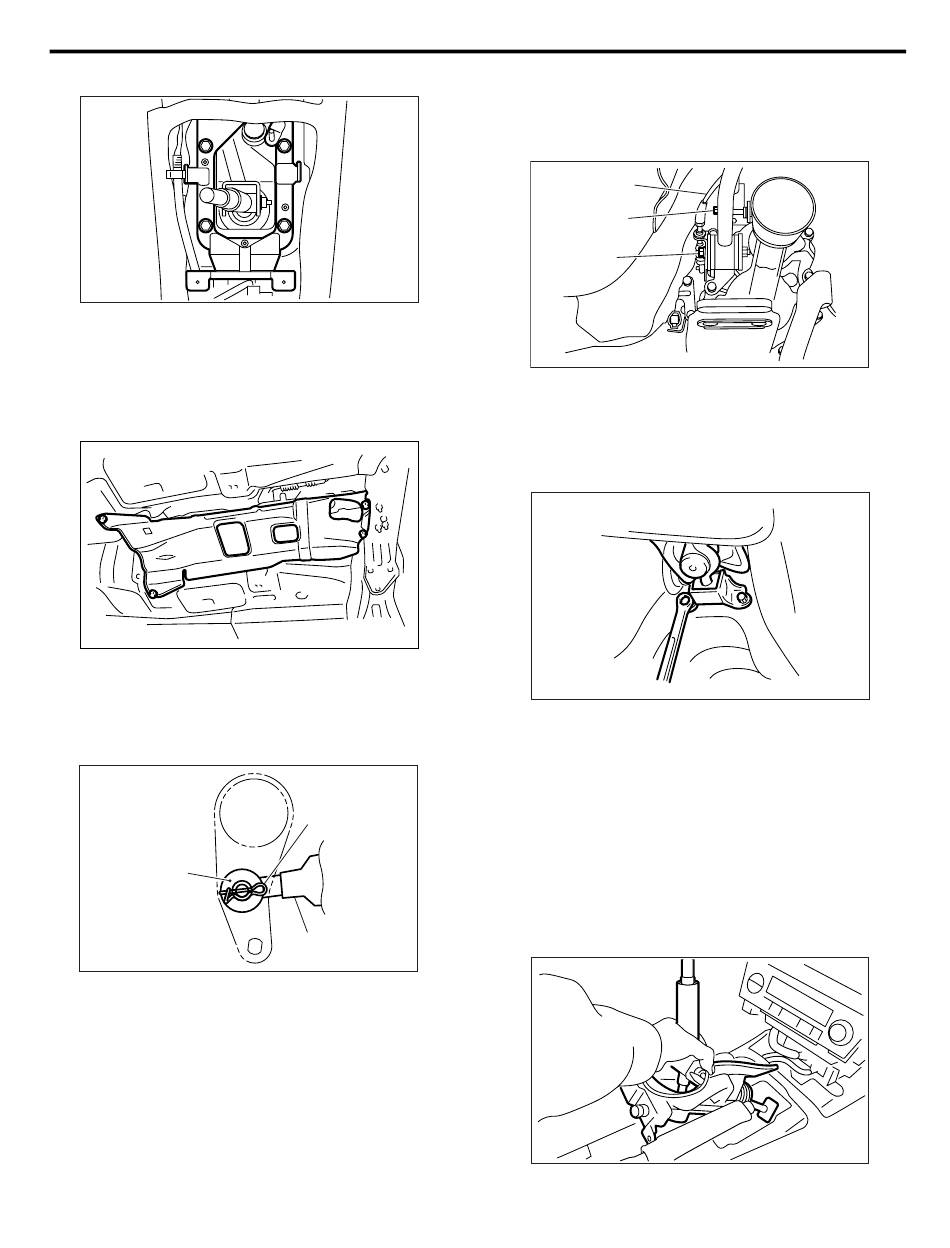

15) Remove the snap pin and washer, and then re-
move the reverse check cable from reverse check
lever.
(B)
(A) Snap pin
(B) Washer
(C) Reverse check cable
16) Move the transmission to the right side, then re-
move the joint COMPL, stay bolt and reverse check
cable.
MT Gear Shift Lever
CS-00584
AT-01331
(A)
(C)
CS-00220
CS-39
NOTE:
If the transmission is not moved, joint COMPL and
stay bolt may contact the body. It will cause dam-
age.
(C)
(A)
(B)
(A) Joint COMPL bolt
(B) Stay bolt
(C) Reverse check cable
17) Remove the cushion rubber from body.
18) Lower the vehicle.
19) Remove the gear shift lever.
B: INSTALLATION
1. 5MT MODEL
1) Install the joint to transmission and secure with
spring pin.
2) Insert the gear shift lever from the room side.
NOTE:
Insert the rod and the stay, and then temporarily set
them onto transmission mounting.
3) Lift-up the vehicle.
CONTROL SYSTEMS
CS-00221
CS-00222
CS-00315
