Ethernet Transport Provider

8 Ethernet Transport Provider
8.1

General

The Ethernet interface supports the Transport Provider protocol, which allows a host to control
the network interface on the other side of the gateway using the standard Anybus-S API.

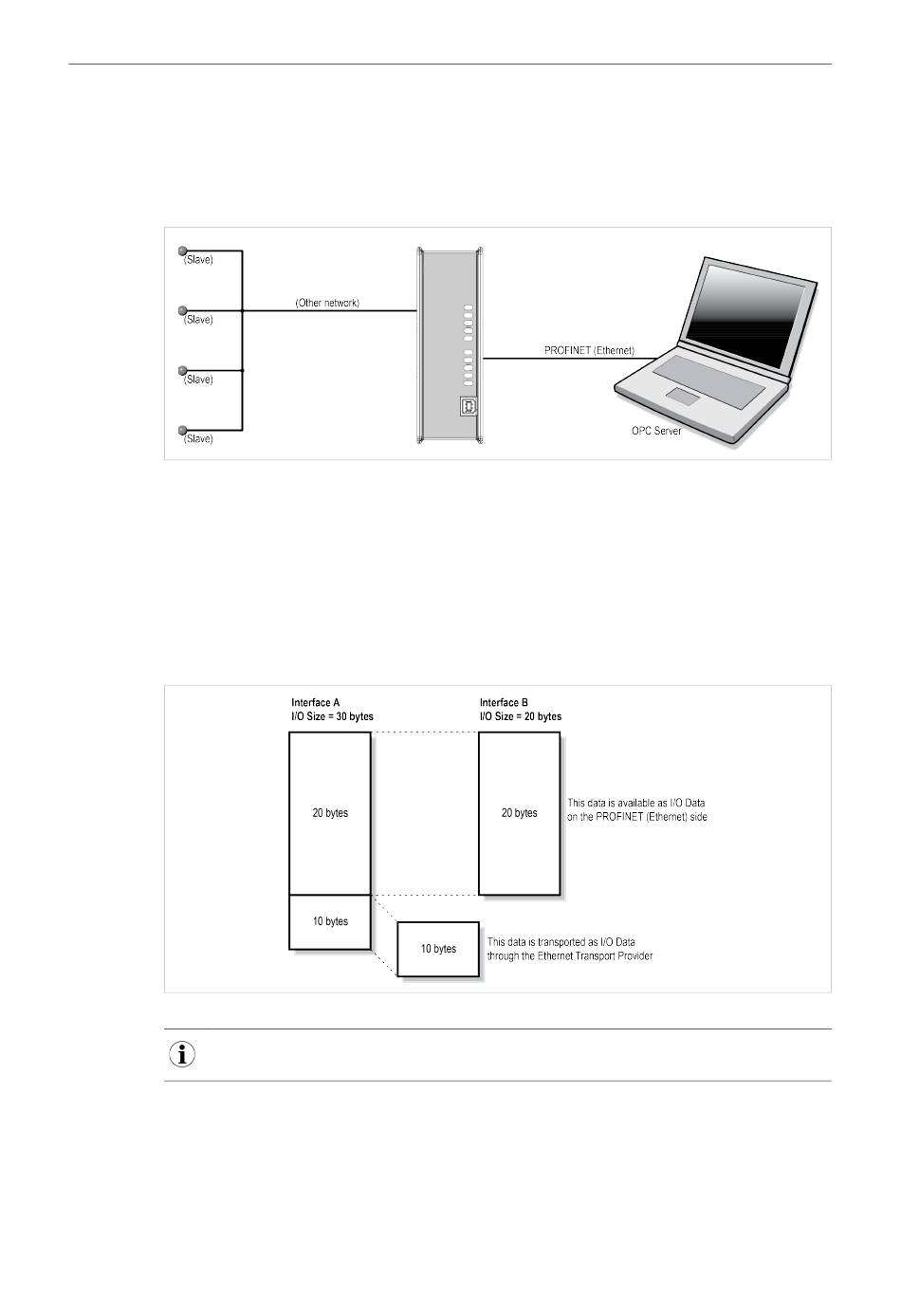

Fig. 18 Ethernet Transport Provider
8.2

Allocation of I/O Data

Example
I/O Size, Interface A = 30 bytes
I/O Size, Interface B = 20 bytes
Transport Provider I/O Size = 20 bytes - 10 bytes = 10 bytes
Fig. 19 Transport Provider example
If the Transport Provider shall handle the complete I/O image towards the other network, the I/O size
should be set to 0 (zero) on the Ethernet interface.
