PROFINET Data Exchange
Asset Management Binary File Example
The binary file structure example presented below can be used as a guide when creating the
asset management binary file.
Only instance 1 is supported.
For instance 1, only attribute 1 and 2 are defined.

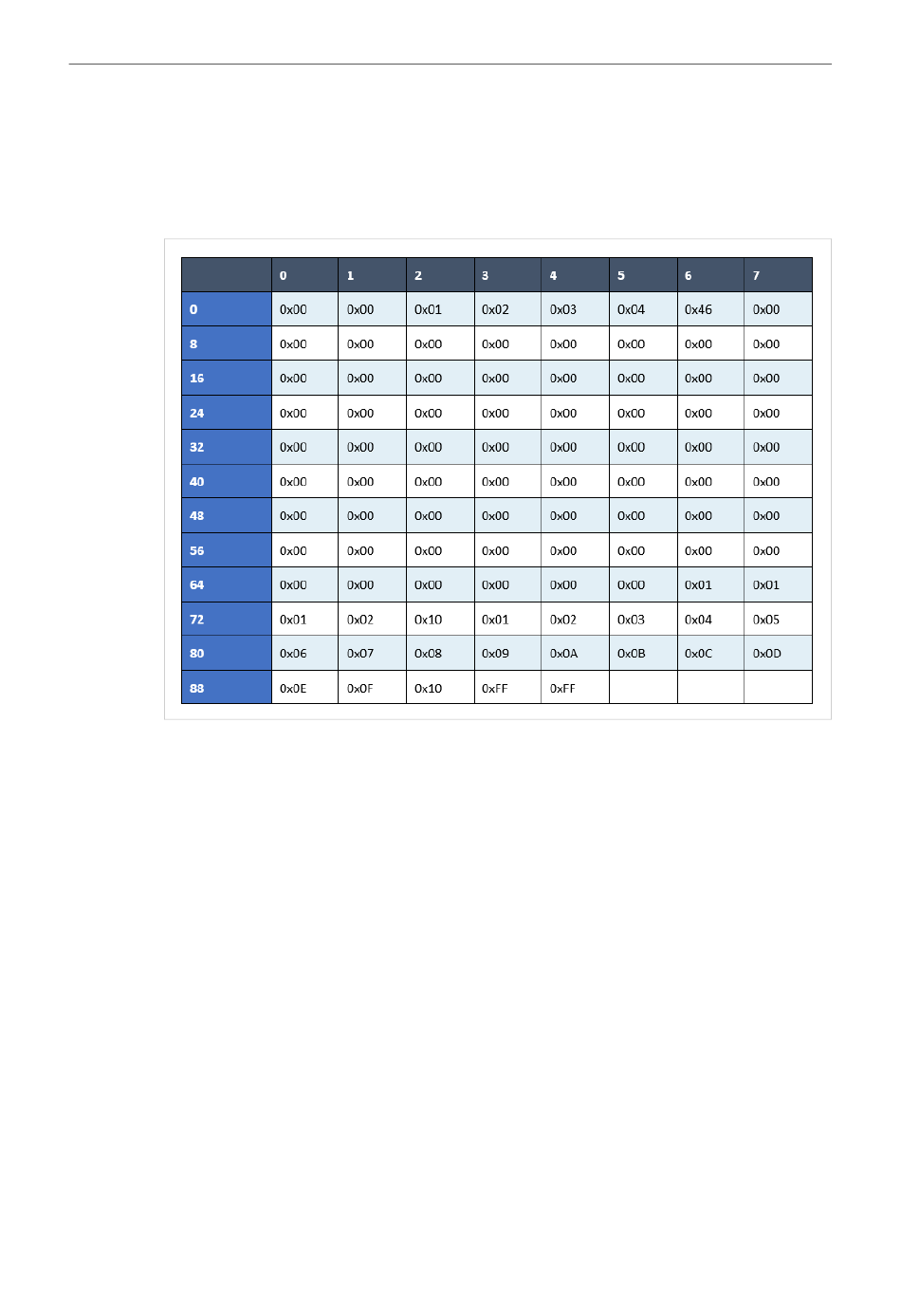

Fig. 15
Binary file example
Anybus
®
X-gateway
™
PROFINET
®
IRT (2.32) User Manual
23 (28)
SCM-1202-028 1.2 en-US
