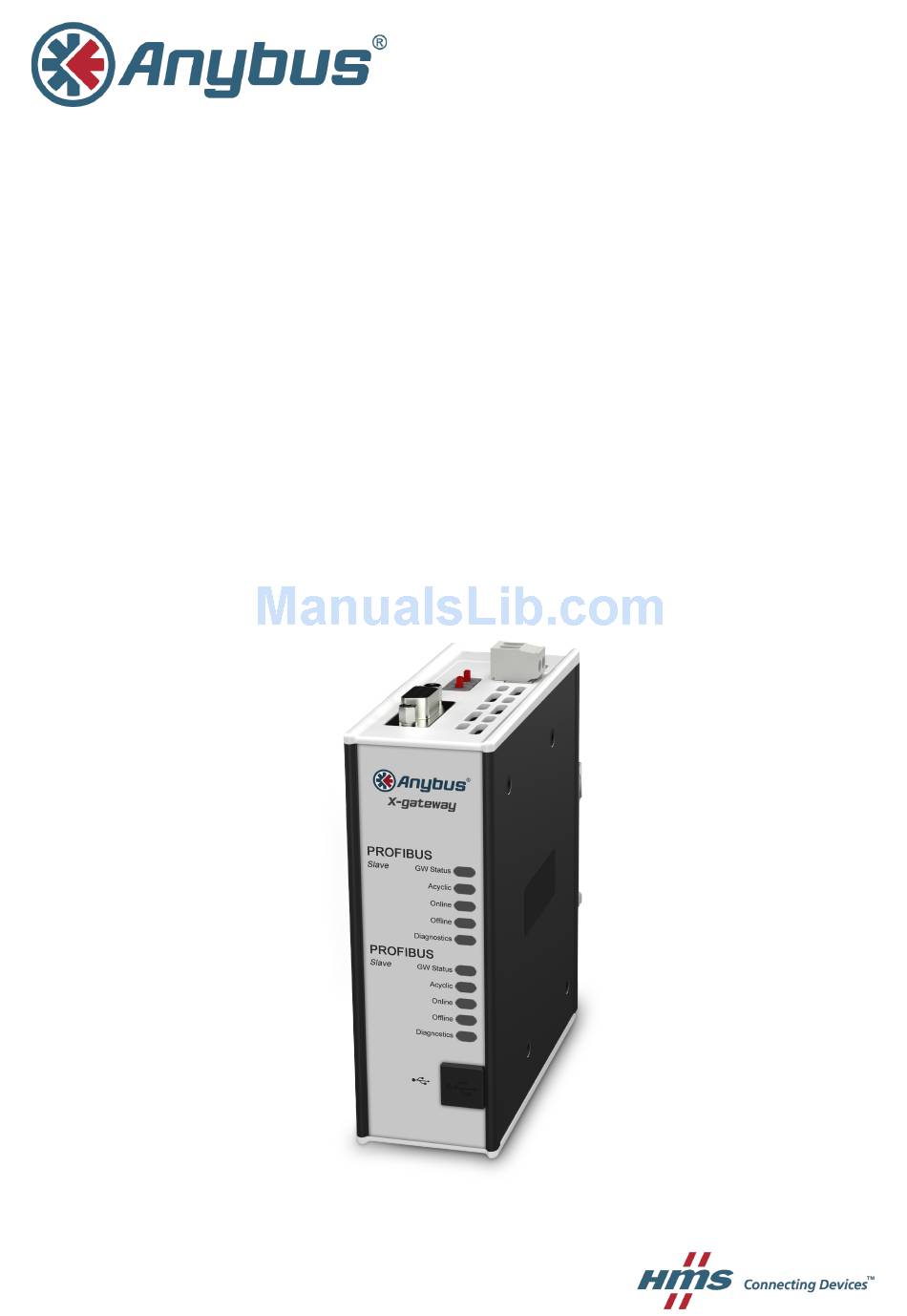

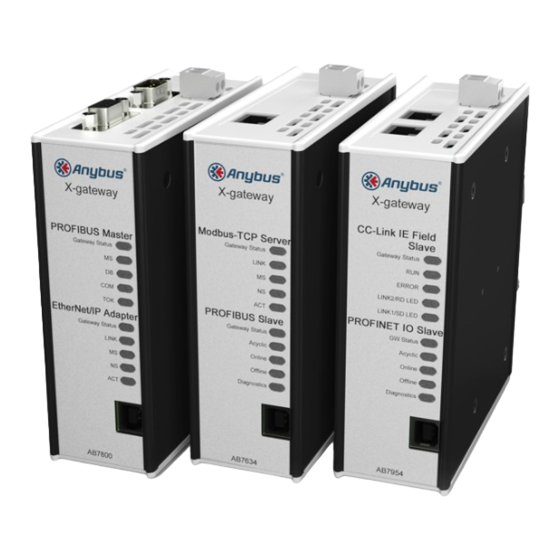

- Page 1 Anybus ® X-gateway ™ PROFIBUS Slave Interface NETWORK GUIDE SCM-1202-103 EN 1.0 ENGLISH...
- Page 2 USA and other countries. Anybus ® is a registered trademark of HMS Industrial Networks AB. All other trademarks mentioned in this document are the property of their respective holders. ® Anybus X-gateway ™ PROFIBUS Slave Interface Network Guide SCM-1202-103 EN 1.0...
-
Page 3: Table Of Contents
Description ........................5 Overview........................5 Installation ........................6 Connectors and Switches ....................6 LED Indicators .......................7 Installation Overview ......................8 Configuration ........................9 Anybus Configuration Manager ..................9 Network Configuration....................9 Data Exchange Examples ....................10 Technical Data........................ 11 Technical Specifications ....................11 ® Anybus X-gateway ™... - Page 4 This page intentionally left blank...
-
Page 5: Preface
Preface 3 (12) Preface About This Document This document describes how to configure and use the Anybus X-gateway PROFIBUS Slave Interface. For additional documentation and software downloads, FAQs, troubleshooting guides and technical support, please visit www.anybus.com/support. Document history Version Date... -
Page 6: Document Conventions
Hexadecimal values are written as NNNNh (the suffix h indicates hexadecimal notation). • 16 and 32 bit values are stored in Motorola (big endian) format unless otherwise stated. ® Anybus X-gateway ™ PROFIBUS Slave Interface Network Guide SCM-1202-103 EN 1.0... -
Page 7: Description
Fig. 1 Data flow Data from the X-gateway can consist of cyclical (DP) and acyclical (DP-V1) I/O data. The interface can exchange up to 244 bytes of I/O data in each direction, although the total data size (input + output) cannot exceed 344 bytes. The actual byte sizes of input and output data and the amount of cyclical versus acyclical I/O data are set up in Anybus Configuration Manager to match the application. -
Page 8: Installation
Use ESD prevention measures to avoid damage. Fig. 2 PROFIBUS slave adapter interface PROFIBUS Connector (9-pin D-sub) The connector is labeled X1 if the interface is top-mounted and X2 if the interface is bottom- mounted in the X-gateway. Signal Description (reserved) (reserved) -
Page 9: Led Indicators
Installation 7 (12) LED Indicators Fig. 4 PROFIBUS slave interface LED indicators The GW Status LED indicates the status of the X-gateway. The other LEDs indicate network communication and interface status. Meaning Indication No power Green Gateway running GW Status... -
Page 10: Installation Overview
• PROFIBUS cable • GSD file for the PROFIBUS slave interface The GSD file can be downloaded from www.anybus.com/support. Basic installation steps Set the PROFIBUS node address using the rotary switches. Connect the PROFIBUS slave interface to the network. Connect a computer to the USB connector. -
Page 11: Configuration
This file contains information about the device and is required by the PROFIBUS network configuration tool when adding the device to the network. The GSD file for the Anybus X-gateway PROFIBUS Slave Interface as well as a free Windows- based PROFIBUS network configuration tool called Anybus NetTool are available for download at www.anybus.com/support, where you will also find additional documentation. -
Page 12: Data Exchange Examples
Depending on the actual gateway configuration, parts of the I/O data produced by the interface may be used for status information such as Status Word and Live List. The Live List is only available on master-slave configurations. See also the Anybus X-gateway User Manual. Output Data is data going to the X-gateway. -
Page 13: Technical Data
244 bytes in each direction, 344 bytes total (input + output) Supported baud rates Automatic baudrate detection up to 12 Mbit/s Configuration method On-board switches and GSD file PROFIBUS connector 1 x D-sub 9-pin female connector ® Anybus X-gateway ™ PROFIBUS Slave Interface Network Guide SCM-1202-103 EN 1.0... - Page 14 last page © 2018 HMS Industrial Networks Box 4126 300 04 Halmstad, Sweden info@hms.se SCM-1202-103 EN 1.0 / 2018-08-17 / 9120...
