Translation of Original Operating Manual

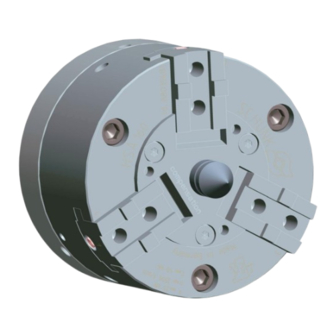

Special chuck HSA 2-jaw chuck / 3-jaw chuck
HSA 160 (88001862, 88021732, 88029313, 88035481, 88037348, 88039738, 88036995)
HSA 160/2 (88026206, 88029240, 88036160, 88041389)
HSA-NZ 170/2 (88027365)
HSA 180/2 (88036423)
HSA 200 (88002843, 88002909, 88002958, 88004159, 88018669, 88020485, 88026696, 88028474,
88028566, 88039479, 88039429)
HSA 250 (88018463, 88018469, 88019551)
HSA 250/2 (88028004, 88034564)
HSA 265 (88003413, 88003473)
HSA 315 (88037992, 88040302)
HSA 315/2 (88029693)
HSA 400 (88026570)
HSA 630/2 (88019966)
Assembly and Operating Manual
Superior Clamping and Gripping

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HSA Series and is the answer not in the manual?

Questions and answers

Summary of Contents for SCHUNK HSA Series

  • Page 1 Translation of Original Operating Manual Special chuck HSA 2-jaw chuck / 3-jaw chuck HSA 160 (88001862, 88021732, 88029313, 88035481, 88037348, 88039738, 88036995) HSA 160/2 (88026206, 88029240, 88036160, 88041389) HSA-NZ 170/2 (88027365) HSA 180/2 (88036423) HSA 200 (88002843, 88002909, 88002958, 88004159, 88018669, 88020485, 88026696, 88028474, 88028566, 88039479, 88039429) HSA 250 (88018463, 88018469, 88019551) HSA 250/2 (88028004, 88034564)
  • Page 2 Imprint Copyright: This manual remains the copyrighted property of SCHUNK GmbH & Co. KG. It is solely supplied to our customers and operators of our products and forms part of the product. This documentation may not be duplicated or made accessible to third parties, in particu- lar competitive companies, without our prior permission.
  • Page 3: Table Of Contents

    Table of contents Table of contents 1 General ........................4 1.1 Warnings ........................4 1.2 Applicable documents ....................5 2 Basic safety notes ..................... 6 2.1 Intended use ......................6 2.2 Not intended use ...................... 6 2.3 Notes on particular risks ................... 7 2.4 Notes on safe operation ..................
  • Page 4: General

    General General This operating manual is an integral component of the product and contains important information on safe and proper assembly, commissioning, operation, care, maintenance and disposal. This manual must be stored in the immediate vicinity of the product where it is accessible to all users at all times. Before using the product, read and comply with this manual, especially the chapter “Basic safety notes”.(...
  • Page 5: Applicable Documents

    WARNING Warning about hand injuries WARNING Warning about hot surfaces Applicable documents General terms of business Calculation of the jaw centrifugal forces ("Technology" chapter in the lathe chuck catalog) The above mentioned documents can be downloaded at www.de.schunk.com. 01.00| |en...
  • Page 6: Basic Safety Notes

    Report any failures and damage immediately and repair without delay to keep the extent of the damage to a minimum and prevent compromising the safety of the product. Only use original SCHUNK spare parts. Intended use The chuck is used to clamp workpieces on machine tools and other suitable technical facilities, paying particular attention to the technical data specified by the manufacturer.
  • Page 7: Notes On Particular Risks

    Basic safety notes • The technical data for use of the product specified by the manufacturer are exceeded. Notes on particular risks This product may pose a danger to persons and property if, for example: • It is not used as intended; •...
  • Page 8 Basic safety notes DANGER Possible risk of fatal injury to operating personnel if a jaw breaks or if the chuck fails because the technical data have been exceeded and a workpiece is released or parts fly off! • The technical data specified by the manufacturer for using the chuck must never be exceeded.
  • Page 9 Basic safety notes CAUTION Danger of slipping and falling in case of dirty environment where the chuck is used (e.g. by cooling lubricants or oil). • Make sure the work environment is clean before beginning assembly and installation tasks. • Wear suitable safety shoes. •...
  • Page 10: Notes On Safe Operation

    Basic safety notes CAUTION Hazard from vibration due to imbalanced rotating parts and noise generation. Physical and mental strains due to imbalanced workpieces and noise during the machining process on the clamped and rotating workpiece. • Ensure the chuck's axial and concentric runout. •...
  • Page 11 (clamping force, coefficient of friction, wear characteristics). (For product information about LINO MAX, see the "Accessories" chapter of the SCHUNK lathe chuck catalog or contact SCHUNK). • Use a suitable high-pressure grease gun to ensure that you reach all the greasing areas.
  • Page 12 Basic safety notes accounted for due to the centrifugal force acting on the chuck jaws. The operating clamping force must in this case be determined by means of dynamic measurement. • Move the clamping piston through to its end position several times after 500 clamping strokes, at the latest.
  • Page 13: Substantial Modifications

    • If the chuck is involved in a collision, it must be subjected to a crack test before using it again. Replace damaged parts with original SCHUNK spare parts. • Replace the chuck jaw mounting screws if there are signs of wear or damage.
  • Page 14: Using Personal Protective Equipment

    Only allow specialists to remedy faults. Spare parts Only ever use original SCHUNK spare parts. Environmental regulations Comply with the applicable legal norms when disposing of waste.
  • Page 15: Warranty

    Warranty / Torques per screw Warranty If the product is used as intended, the warranty is valid for 12 months from the date of delivery from the production facility under the following conditions: • Observe the applicable documents ( 1.2, Page 5) •...
  • Page 16: Scope Of Delivery

    Scope of delivery Scope of delivery 1 HSA power chuck in the version ordered HSA 160 (Id-No. 88001862, 88021732, 88029313, 88035481, 88037348, 88039738, 88036995) HSA 160 – 2-jaw chuck (Id-No. 88026206, 88029240, 88036160, 88041389) HSA-NZ 170 – 2-jaw chuck (Id-No. 88027365) HSA 180 –...
  • Page 17: Technical Data

    Technical data Technical data For the technical data for the chucks, refer to the enclosed drawings. Balancing: The HSA chuck is balanced in accordance with DIN ISO 1940. For balancing, a balancing grade of G 6.3 is selected and the mass and maximum recommended speed of the chuck are used as reference values.
  • Page 18: Grades Of Accuracy

    Technical data F: Actuating force in N n: Speed in rpm a: Static chuck constant: 1.94 on HSA-NZ 170 2.00 on HSA 160, 180/2, HSA 200 2.40 on HSA 265, HSA 250, HSA 250/2, HSA 400 2.30 on HSA 315 2.50 on HSA 315/2 Maximum distance from front face of chuck to center of workpiece (reach):...
  • Page 19: Assembly

    Assembly Assembly The specified item numbers for the corresponding individual components relate to the enclosed drawings or to the Drawings chapter ( 12, Page 30). Pre-assembly measures Carefully lift the product (e.g. using suitable lifting gear) from the packaging. CAUTION Danger of injury due to sharp edges and rough or slippery surfaces Use personal protective gear, especially safety gloves.
  • Page 20 Assembly • Screw the power chuck onto the draw tube as far as it will go. (Make sure that the draw tube thread is flush.) The HSA 160,160/2, HSA-NZ 170/2,180/2, HSA 250, HSA 250/2 and HSA 400 is screwed onto the draw bar using the screw (Item 15).
  • Page 21 Assembly Mounting the chuck Cylinder piston in foremost position R1 = Push the chuck piston to its foremost position and measure with a depth gauge R2 = R1 – 0.5 mm (max. – 1 mm) 01.00| |en...
  • Page 22: Chuck Function

    Chuck function Chuck function The item numbers specified for the corresponding individual components relate to chapter drawings.( 12, Page 30) Functional principle The HSA compensation chuck in wedge-hook design is actuated by a rotating solid or through-hole cylinder. The axial tensile or pressure forces are converted to the radial jaw clamping force by the wedge hook angle in the piston and base jaws.
  • Page 23: Replacement Or Renewal Of Jaws

    Chuck function Replacement or renewal of jaws Chuck jaws for maximum repeat clamping accuracy must be turned or ground in the chuck under clamping pressure. Self-centering clamping (see drawing) must be selected in this case. • When turning or grinding, ensure that the turning ring or turning pin is clamped by the top jaws and not by the base jaws.
  • Page 24 Chuck function HSA-NZ 170/2 • Remove all screws (Item 26) and then remove the center (Item 16). Unscrew the screws (Item 18) and remove the cover (Item 13). Then unscrew further screws (Item 18) and remove the guide bushing (Item 4). •...
  • Page 25 Only use genuine SCHUNK spare parts when replacing damaged parts. The chuck must be completely assembled, including all the small components, before start-up. Each small component may have a safety function in the chuck.
  • Page 26: Maintenance

    Lubrication To maintain the safe function and high quality of the chuck, it has to be regularly lubricated at the lubrication nipples. Use SCHUNK LINO MAX special grease for this purpose. • For optimum grease distribution, the clamping piston must travel the entire clamping stroke several times after lubrication.
  • Page 27: Disposal

    • Remove any identifiable plastic or aluminum parts installed in or on the chuck and dispose of them properly in line with the statutory provisions. • Dispose of the chuck's metal parts as scrap metal. Alternatively, you can return the chuck to SCHUNK for proper disposal. 01.00| |en...
  • Page 28: Parts Lists

    Parts lists Parts lists When ordering spare parts, it is imperative to specify the type, size and above all the manufacturing no of the chuck. Seals, sealing elements, screw connections, springs, bearings, screws and wiper bars plus parts coming into contact with the workpiece are not covered by the warranty.
  • Page 29 Parts lists HSA-NZ 170 Item Designation Chuck body Base jaws (1 set) Piston Compensating guide bushing Guide part Bolt Chuck flange Cover Screws Screw Center point Screws Screws Screws Set-screw Set-screw Screws Lubrication nipple Set-screw 01.00| |en...
  • Page 30: Drawings

    Drawings Drawings HSA 315 - without center point 01.00| |en...
  • Page 31 Drawings HSA 400 - Compensation chuck with center point 01.00| |en...
  • Page 32 Drawings HSA-NZ 170 - Compensation chuck 01.00| |en...
