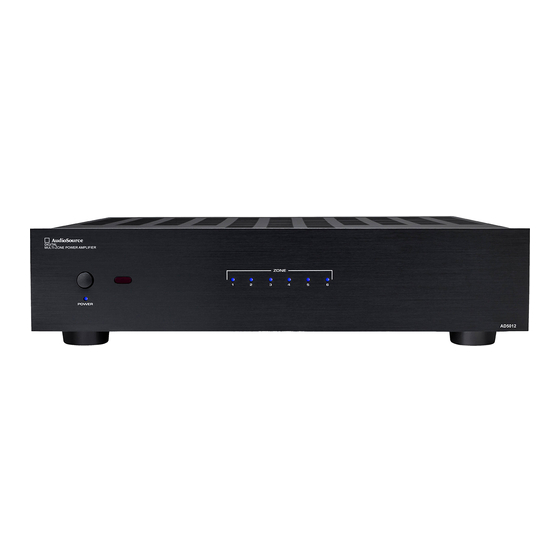

AD5012
Digital Multi-Zone Power Amplifier
FEATURES:
12 Channels (6 stereo zones)
12 Rear mounted level controls
12 Independent inputs, 2 Bus inputs, 1 optical input
Bus 1 and Bus 2 master level controls
Multi-function IR remote control
Normal, signal sensing, and trigger power modes
Rear mounted treble and bass controls for bus 1 & 2
Phoenix-style speaker connectors
LED status indicator lights
Bridgeable channel outputs
Rack mountable (rack mount included)
SPECIFICATIONS
Stereo (8 ohm):
12 x 50W per channel, <0.2% THD+N
Stereo (4 ohm):
12 x 75W per channel, <0.2% THD+N
Bridged Mono (8 ohm):
125W, 1kHz, <0.2% THD+N
Frequency Response:
20Hz ~ 20kHz, +/-0dB
Signal to Noise Ratio:
100dB below 50W output into 8 ohms
w/20kHz lowpass filter/A-Wgt
Channel Separation:
65dB @ 1kHz, referred to 50W output
into 8 ohms
Input Sensitivity:
Variable, 430mV for full output with
Input Level control at maximum
AC Power Consumption:
1000W maximum
Net Weight:
34.5lbs / 15.6kgs
Gross Weight:
39.5lbs / 17.9kgs
Input:
120/230V~, 60/50Hz, 1000W
AudioSource®
13970 SW 72nd Ave
Portland, OR 97223
503.914.4688
www.audiosource.net
Congratulations on your purchase of the AudioSource® AD5012.
Please take a few moments to read this entire manual, and be sure to
retain this document for future reference. Please read and observe all
safety instructions detailed on page 2.
NOTE: If any part of this product is damaged or missing, please call your
dealer or AudioSource® directly at 1.877.715.5439 or 503.914.4688.
Please read your warranty and retain your receipt and original carton
for possible future use.
For more information about AudioSource® electronics, speakers and
accessories please visit www.audiosource.net
MULTI-ZONE POWER AMPLIFIER
4.0"
(102mm)
14.75"
(375mm)
AD5012
OWNER'S MANUAL
16.63" (423mm)
AD5012 Owner's Manual 30117
AD5012
Advertisement
Table of Contents
Related Manuals for AudioSource AD5012
Summary of Contents for AudioSource AD5012
-
Page 1: Specifications
AD5012 OWNER’S MANUAL AD5012 Congratulations on your purchase of the AudioSource® AD5012. Digital Multi-Zone Power Amplifier Please take a few moments to read this entire manual, and be sure to retain this document for future reference. Please read and observe all safety instructions detailed on page 2. - Page 2 If an equipment rack is used, we recommend locating the in the bottom of the rack and the pr or other sensitive equipment at the top. 13970 SW 72nd Ave, Portland, OR 97223 • 503.914.4688 • www.audiosource.net...
- Page 3 ON mode. When using the three main inputs are Bus 1, Bus 2 and LINE IN. The selection or these inputs AD5012 with a receiver without a trigger output, the voltage can come a 12V is done via the Input Selection switch associated with each channel.
-
Page 4: Limited Warranty
AudioSource®, or damage that is attributable to Acts of God. It does not cover cost of transportation to AudioSource® or damage in transit. The customer should return his defective product, freight prepaid and insured, to AudioSource®...
