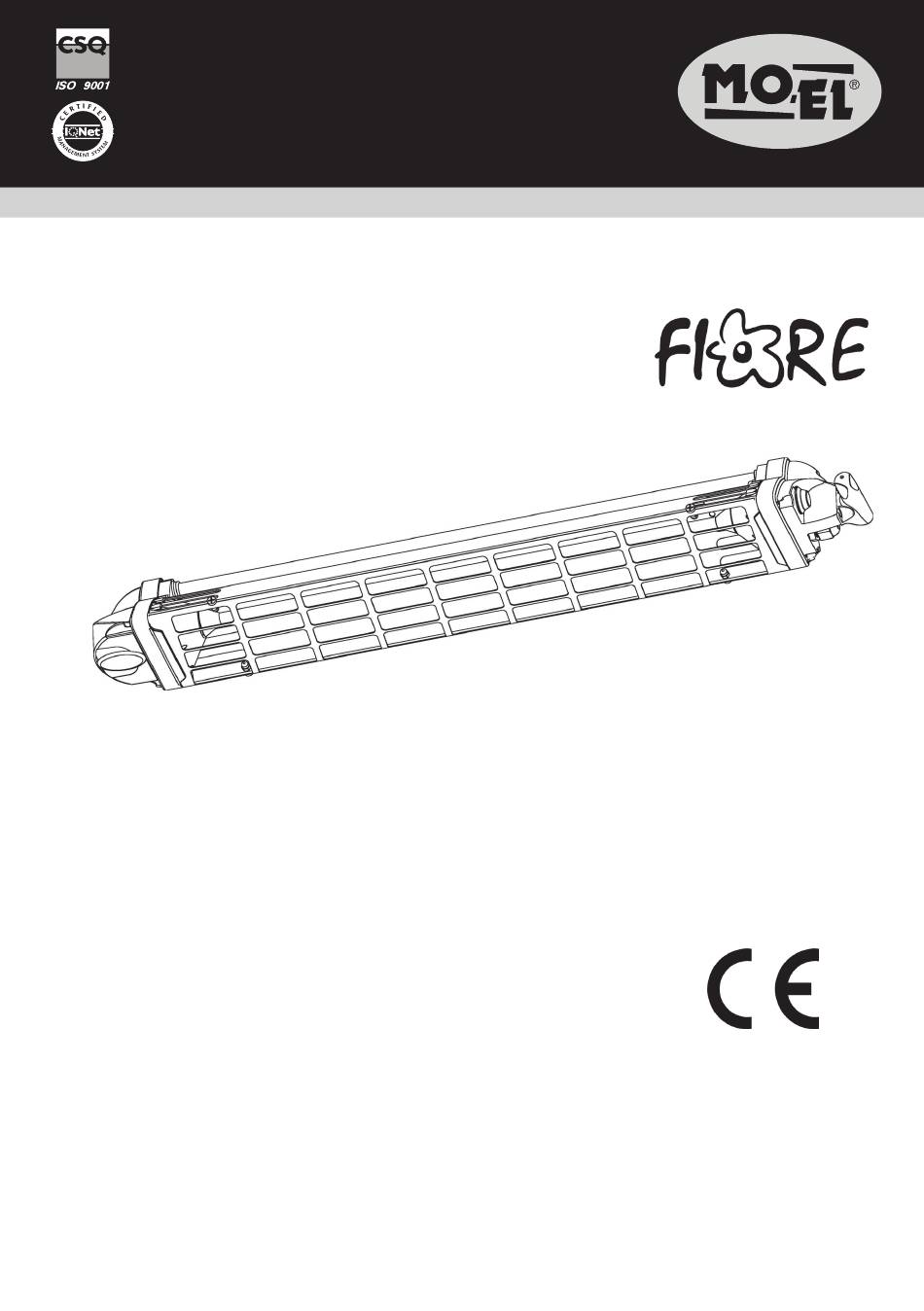

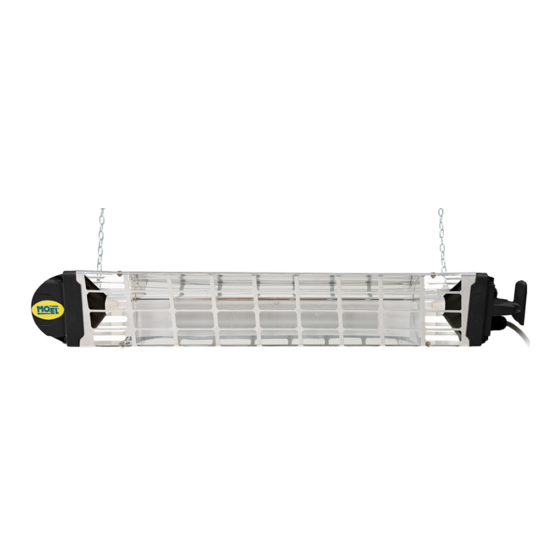

- Page 1 MO-EL S.r.l. Via Galvani, 18 FIORE 42027 Montecchio Emilia (RE) ITALY tel +39 (0522) 868011 fax +39 (0522) 864223 www.mo-el.com - info@mo-el.com HALOGEN QUARTZ INFRARED HEATER USE AND MAINTENANCE Classe I - IP 65...
-
Page 2: Use And Maintenance
USE AND MAINTENANCE 1. IMPORTANT SAFETY INSTRUCTIONS Instructions should be carefully read before installation and retained by the user. The booklet must be keeped and delivered to the new user in case of cession of the machine. The Manufacturer reserves the right to vary the features of the product without prior notice. - Page 3 60 cm far from the walls (fig.1). A safety distance of not less than 100 cm should always be left in • front of the FIORE heaters or too near. This unit should be mounted at a minimum of 180 cm above ground •...
- Page 4 Before pressing the switch, seize firmly the grip and avoid to touch • the metal parts. 3. LOCATION The Fiore range of heaters is deliberately designed to be very flexible in the choice of position. There are three basic options: A wall mounting bracket version with a specifically designed •...
- Page 5 4. USE The Fiore range consists of a 1200 W heater and an 1800 W heater. The essential element of the heater is the halogen filled quartz linear lamp with a tungsten element. The heater operates at full output al- most immediately.
-
Page 6: Maintenance
6. EMITTER AND SILICON BUMPERS REPLACEMENT The emitters used in the Fiore are robust and if knocks and shock vibrations are avoided, they will last for around 5000 hours. When changing the lamp, also the silicon bumpers connected with the lamp must be substituted. - Page 7 7. TECHNICAL FEATURES Power supply 230 V ~ 50-60 Hz 230 V ~ 50-60 Hz Power 1200 W 1760 W Insulation Class Protection level IP65 IP65 Lamp Quartz - tungsten wire Lamp life (hours) 5000 5000 Emission IR-A IR-A Range (m 4÷6 8÷10 Weight (kg)
- Page 8 Fig. 1 Fig. 2...
- Page 9 Fig. 3 Fig. 4...
- Page 10 Fig. 5 Fig. 6...
- Page 11 Fig. 7...
- Page 12 CODE 766P 767P 768M 768P 768S 1200W 1800W 1200W 1800W SWITCH 3.5x16 4MAx10...
