6.3 Connecting Sensors and Transducers

Sensors or Transducers are connected to the screw terminals that are
accessible under the lid.

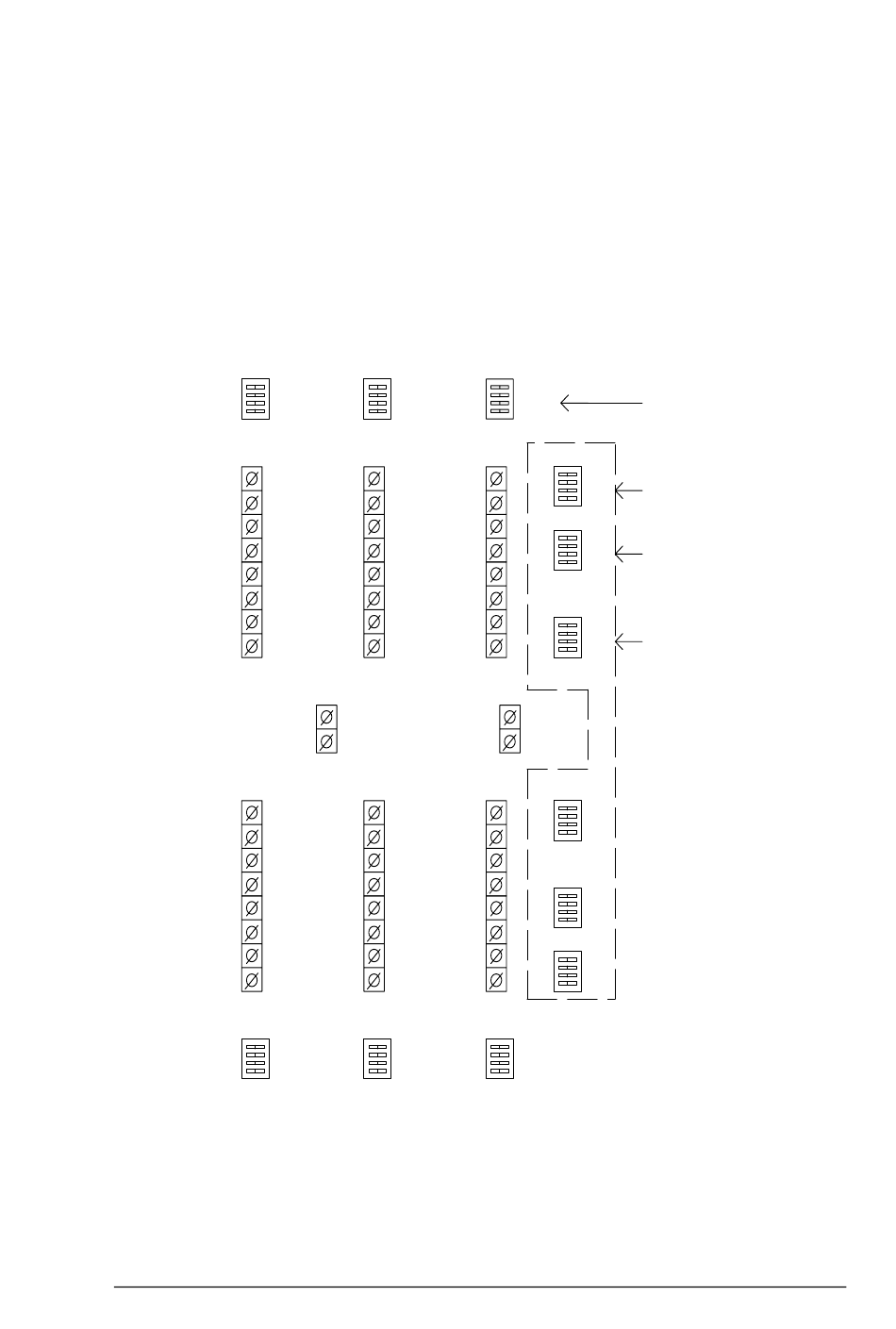

The terminals are detachable and can be tilted 90°. Terminal assignment and
polarity can be seen in the figure below.
Use the 16 hole bracket as strain-relief for transducer cables. You can use a
tie-wrap or simply thread the wire trough two holes.
DIFF GND
8
7
6
5
-
CHANNEL 8 CHANNEL 16
+
-
CHANNEL 7 CHANNEL 15
+
-
CHANNEL 6 CHANNEL 14
+
-
CHANNEL 5 CHANNEL 13
+
-
CHANNEL 4 CHANNEL 12
+
-
CHANNEL 3 CHANNEL 11
+
-
CHANNEL 2 CHANNEL 10
+
-
CHANNEL 1 CHANNEL 9
+
DIFF GND
4
3
2
1
DIFF GND DIFF GND
16
15
14
13
- -
CHANNEL 24
+ +
- -
CHANNEL 23
+ +
- -
CHANNEL 22
+ +
- -
CHANNEL 21
+ +
GND
- -
CHANNEL 20
+ +
- -
CHANNEL 19
+ +
- -
CHANNEL 18
+ +
- -
CHANNEL 17
+ +
DIFF GND DIFF GND
12
11
10
9
BASIC UNIT
Switches for choice
between single ended
(GND) or differential
24
23
inputs
22
21
U I
Software Range-
16
15
14
Switchable units have
13
U I
these switches.
12
11
10
9
In position "I" they
connect a shunt
U I
resistor across the
24
23
22
input for current
21
measurements.
GND
Note the irregular
numbering of the
switches.
U I
20
19
18
17
U I
8
7
6
5
U I
4
3
2
1
20
19
18
17
