Summary of Contents for ProFire PF2100

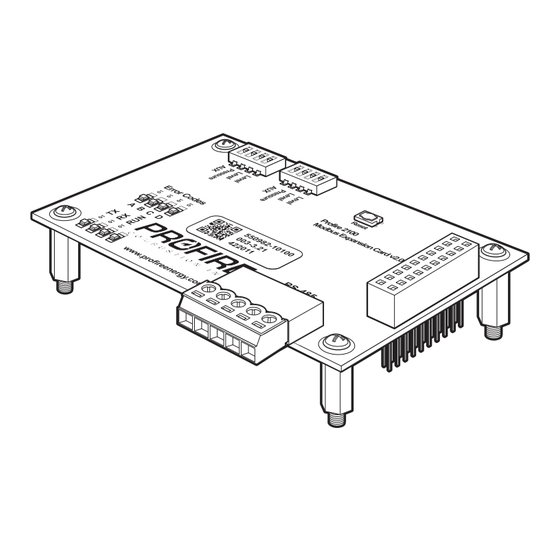

- Page 1 PROGRAMMING GUIDE 2100 MODBUS EXPANSION CARD REGISTER MAP v2.1 FOR HARDWARE v2.0 ONLY FOR FIRMWARE v2.0, v4.0, v4.1, v4.3 PF2100 MODBUS EXPANSION CARD REGISTER MAP v2.1 | PROFIRE ENERGY INC. www.profireenergy.com 1-855-PRO-FIRE...
-
Page 2: Firmware Version History
MODBUS COMMANDS Only the following Modbus RTU commands are supported by the PF2100 Modbus Card. All other Modbus RTU commands are not supported. Modbus TCP is not directly supported but can be used if a third party bridge is purchased. - Page 3 NAMES AND VALUES DESCRIPTION VER. The Run bit is set when the PF2100 is running in any state other than Ready, Alarm, Shutdown. It 10001 2.0+ is also set when the system is waiting for an enabled wait condition before relighting. This 0 = Not Running indicates that the system is actively firing or is attempting to light.
- Page 4 Low or High Voltage Latched version of 10028. 4.3+ (Latched) (43) 10045 HiTemp Alarm (Latched) Latched version of 10029. 4.3+ (44) 4-20 Alarm (Latched) 10046 Latched version of 10030. 4.3+ (45) PF2100 MODBUS REGISTER MAP | PROFIRE ENERGY INC. www.profireenergy.com 1-855-PRO-FIRE...
- Page 5 The higher the number the better the flame. * These thermocouple readings are all encoded using 16-bit signed integers and are always reported in °C even if the PF2100 is set to display temperature in Fahrenheit. PF2100 MODBUS REGISTER MAP | PROFIRE ENERGY INC.
- Page 6 Will reset to zero when register 30015/40015 = 0. * These thermocouple settings are all encoded using 16-bit signed integers and are always reported in °C even if the PF2100 is set to display temperature in Fahrenheit. PF2100 MODBUS REGISTER MAP | PROFIRE ENERGY INC.
- Page 7 * Note that a setpoint cannot be set above/below the setpoint that bounds it above/below. These thermocouple settings are all encoded using 16-bit signed integers and are always reported in °C even if the PF2100 is set to display temperature in Fahrenheit.
