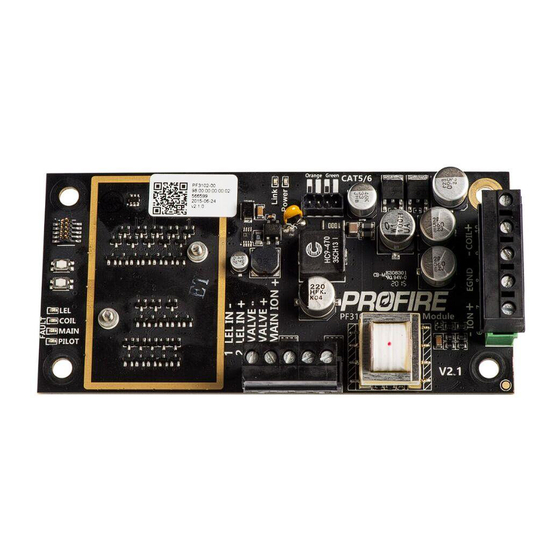

- Page 1 PF3100 Ion Pilot Card Product Manual R 1.0 PROFIRE PF3100 Ion Pilot Card PF3102-00 The PROFIRE PF3100 Ion Pilot card is an igniter and uses ionization to detect flame. PROFIRE 1.855.776.3473 solutions@profireenergy.com Page 1 of 12...
-
Page 2: Table Of Contents
Wiring Diagram ............................6 Mounting Instructions ..........................9 Enclosure Specifications ........................10 Instructions for Use ..........................10 Preventative Maintenance & Inspection ....................10 Important Safety Information ......................11 PROFIRE Contact Information ....................... 12 PROFIRE 1.855.776.3473 solutions@profireenergy.com Page 2 of 12... -
Page 3: Introduction
Functional Description The PROFIRE PF3100 Ion Pilot card is used to generate a spark to ignite a pilot burner and to detect the flame of both a pilot and main burner. This card is powered through the PFRN network via a controller or network card (a BMS controller card, or a Network card). -
Page 4: Card Information
PF3100 Ion Pilot Card Product Manual 3. Card Information Card Specifications The ambient temperature rating for the Ion Pilot Card is -40°C (-40°F) to +60°C (+140°F). Card Diagram PROFIRE 1.855.776.3473 solutions@profireenergy.com Page 4 of 12... - Page 5 The input can be configured in software to be disabled, to require an LEL switch, or to require an LEL 4-20mA transmitter. The system will not start if the contact is open, or if the PROFIRE 1.855.776.3473 solutions@profireenergy.com...
-
Page 6: Wiring Diagram
This terminal must be connected to the same earth ground as the pilot and main burner assemblies. Modules come pre-wired with a connection to the enclosure ground lug, which must be connected to earth ground. 4. Wiring Diagram General Wiring Diagram PROFIRE 1.855.776.3473 solutions@profireenergy.com Page 6 of 12... - Page 7 Single Rod Pilot Wiring The single rod pilot configuration is used for a single rod for flame detection and pilot detection. Older Model with Gen 2 Coil Newer Model with Gen 3 Coil PROFIRE 1.855.776.3473 solutions@profireenergy.com Page 7 of 12...
- Page 8 Dual Rod Pilot Wiring Dual rod configuration is used when two separate rods for pilot ignition and flame detection are used. Older Model with Gen 2 Coil Newer Model with Gen 3 Coil PROFIRE 1.855.776.3473 solutions@profireenergy.com Page 8 of 12...
-
Page 9: Mounting Instructions
1. Install four (4) #10-32 screws through the Ion Pilot card (as indicated in the image below) and attach them to the upper set of enclosure stand-offs. Please note the board orientation. 2. Torque to 26 in*lb. PROFIRE 1.855.776.3473 solutions@profireenergy.com... -
Page 10: Enclosure Specifications
➢ Routine inspections of all equipment should be performed. If any abnormality is found, corrective actions should be taken. If the abnormality cannot be corrected, contact PROFIRE. ➢ A qualified technician should perform any tests necessary to confirm that the equipment is still in a safe condition. -
Page 11: Important Safety Information
Before installing the PF3100 Ion Pilot card, please review the list of warnings below. Product use in a manner not specified by PROFIRE is not recommended. Failure to observe the following warnings may result in death, electrocution, property damage, product damage, product damage, government fines, or malfunction of the product itself. -
Page 12: Profire Contact Information
Coil – terminals, as well as the Ion+ and the secondary of the ignition coil all pose this risk. 10. PROFIRE Contact Information If you have any concerns or questions about this product, please contact PROFIRE as follows: U.S. 1.801.796.5127...
