PS Engineering PAC45 System Pilot's Manual And Operation Manual

Hide thumbs Also See for PAC45 System:
Table of Contents

Advertisement

Quick Links

Download this manual

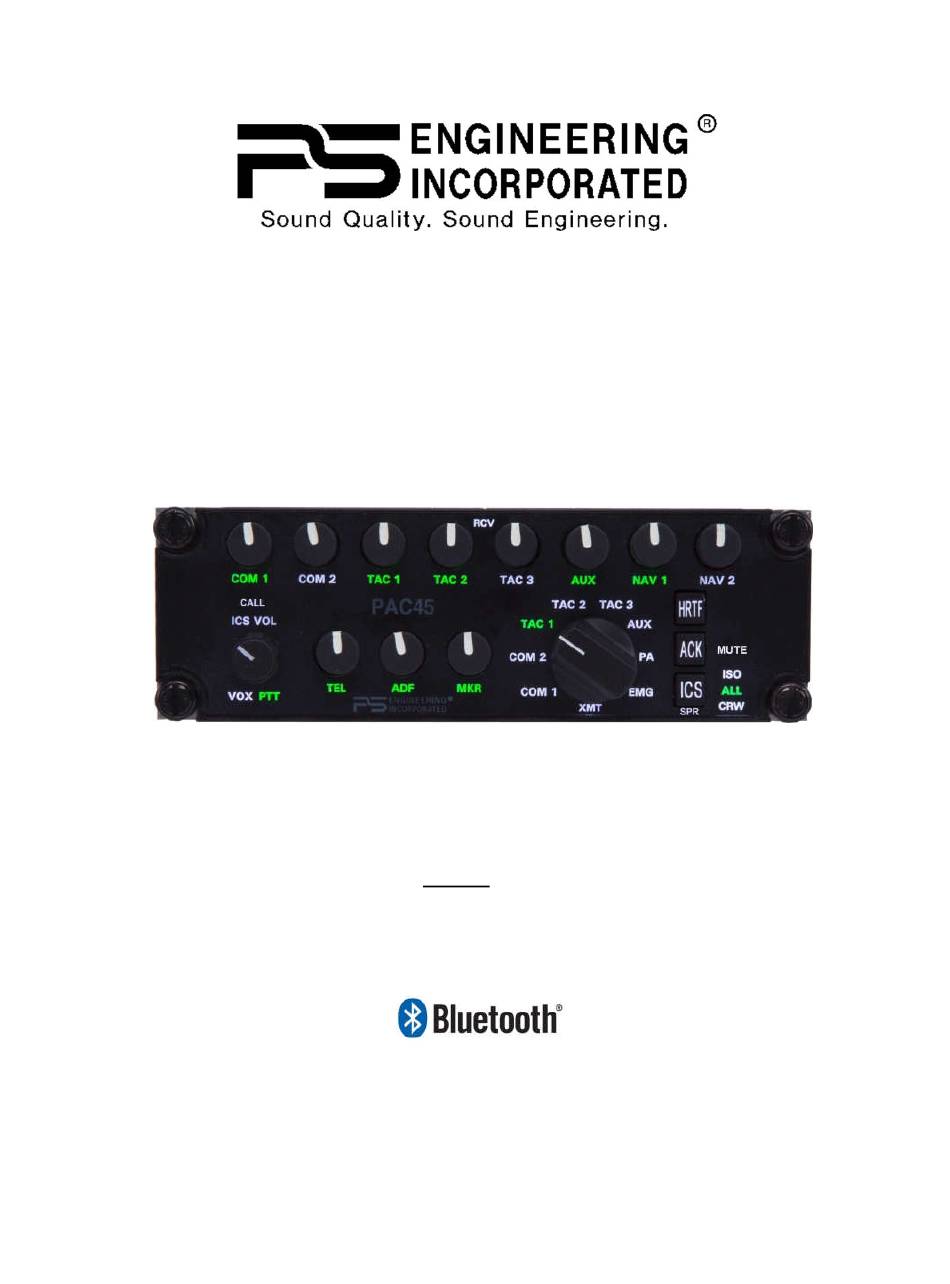

9800 Martel Road
Lenoir City, TN 37772
www.ps-engineering.com
PAC45 System
Flying Never Sounded So Good!®
Pilot's Guide
and
Operation Manual
FOR SINGLE SYSTEMS
202-045-0100
Revision 2
July 2019
Serial Number GH01139 and above
FAA TSO C139a
PS Engineering, Inc. 2019 ©
Copyright Notice
Copyrighted information in this manual is subject to change without notice. PS Engineering reserves the right to
improve or change the products or contents of this manual, without notification of any person or agency. The
contents of this pilot's guide may be downloaded, stored and reprinted for personal use provided that this copyright
information is included. Commercial use is strictly prohibited. For further information contact the Publications
Revision 2 PAC45 Pilot Guide
202-045-0100
Page 1
Manager at PS Engineering, Inc., 9800 Martel Road, Lenoir City, TN 37772. Phone (865) 988-9800

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAC45 System and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PS Engineering PAC45 System

Summary of Contents for PS Engineering PAC45 System

  • Page 1 PS Engineering, Inc. 2019 © Copyright Notice Copyrighted information in this manual is subject to change without notice. PS Engineering reserves the right to improve or change the products or contents of this manual, without notification of any person or agency. The contents of this pilot’s guide may be downloaded, stored and reprinted for personal use provided that this copyright...

  • Page 2: Power And Fail Safe

    This section provides detailed operating instructions for the PS Engineering PAC45, Audio Selector Panel/Intercom Systems. Please read it carefully before using the equipment so that you can take full advantage of its capabil- ities. This section is divided into sections covering the basic operating areas of the PAC45 systems.

  • Page 3: Communications Transmit (Xmt) Selection

    Communications Transmit (XMT) Selection The PAC45 has a rotary control knob to select communications transceiver functions. To select a transceiver for transmit; turn the knob to select the desired radio from the six available. The radio is automatically selected to receive in- coming radio calls when the XMT is selected.

  • Page 4: Telephone Control

    This adjustment allows the six Spatial Audio inputs to be “relocated” on any of nine (9) pre-defined “Head Related Transfer Function” (HTRF) lo- cations. MultiTalker™ places the communications receiver audio in one of nine apparent locations in the crew’s headset. This has been scientifically shown to allow the brain to focus on multiple conversations and improve compre- hension for the listener.

  • Page 5: Intercom Operation

    This is normal. For optimum microphone performance, PS Engineering recommends instal- lation of a Microphone Muff Kit from Oregon Aero (1-800-888-6910). This will not only optimize VOX performance, but will improve the overall clar- ity of all your communications.

  • Page 6: Intercom Modes

    Monaural headsets The pilot and copilot positions work with stereo or mono headsets. Howev- er, MultiTalker will not be presented correctly unless stereo headsets are used, and oriented correctly on the head, left and right. NOTE: For the full effect of MultiTalker™ Dimensional Sound, stereo headsets must be used, and the left/right orientation observed.
  • Page 7 Bluetooth® connection The PAC45 has a internal Bluetooth module, no external boxes required. The audio controller is always “discoverable,” so you just need to search for the PAC45 from your Bluetooth-equipped phone or music source. Default access code is not required. Once the PAC45 has been “paired” with your Bluetooth device, the TEL distribution will act as described below.
  • Page 8 NOTE PS Engineering does not guarantee compatibility with personal cellular telephones. Bluetooth Reset To reset the Bluetooth module, clearing out the connected devices, press HRTF and ICS for more than three seconds. Music Muting Control The PAC45 incorporates PS Engineering’s trademark “SoftMute.
  • Page 9 2. COM1 will blink, to indicate the recording of ALERT #1. 3. Start speaking message. 4. When finished with Alert #1, press the “ACK”. 5. Now COM2 will blink, to indicate the recording of ALERT #2. 6. Speak message. 7. When finished with Alert #2, press the “ACK” 8.
  • Page 10 THIS PAGE INTENTIONALLY LEFT BLANK Page 10 202-045-0100 July 2019 PAC45 Pilot Guide...
  • Page 11 Subject Index Page Audio Location Bluetooth® connection Bluetooth Reset Bluetooth® Telephone Mode Pairing and unpairing Bluetooth devices Pairing separate music and telephone devices COM Audio Selector Communications Transmit (XMT) Selection IntelliVox® Intercom VOX-Squelch Intercom Modes Intercom Operation Intercom Volume Control Monaural headsets MultiTalker™...

  • Page 12: Warranty And Service

    All domestic transportation charges for returning the exchange or repaired unit to the purchaser will be borne by PS Engineering, Inc. The risk of loss or damage to the product is borne by the party making the shipment, unless the purchaser requests a specific method of shipment. In this case, the purchaser assumes the risk of loss.
