1.1 Hardware components + accessories (continued)

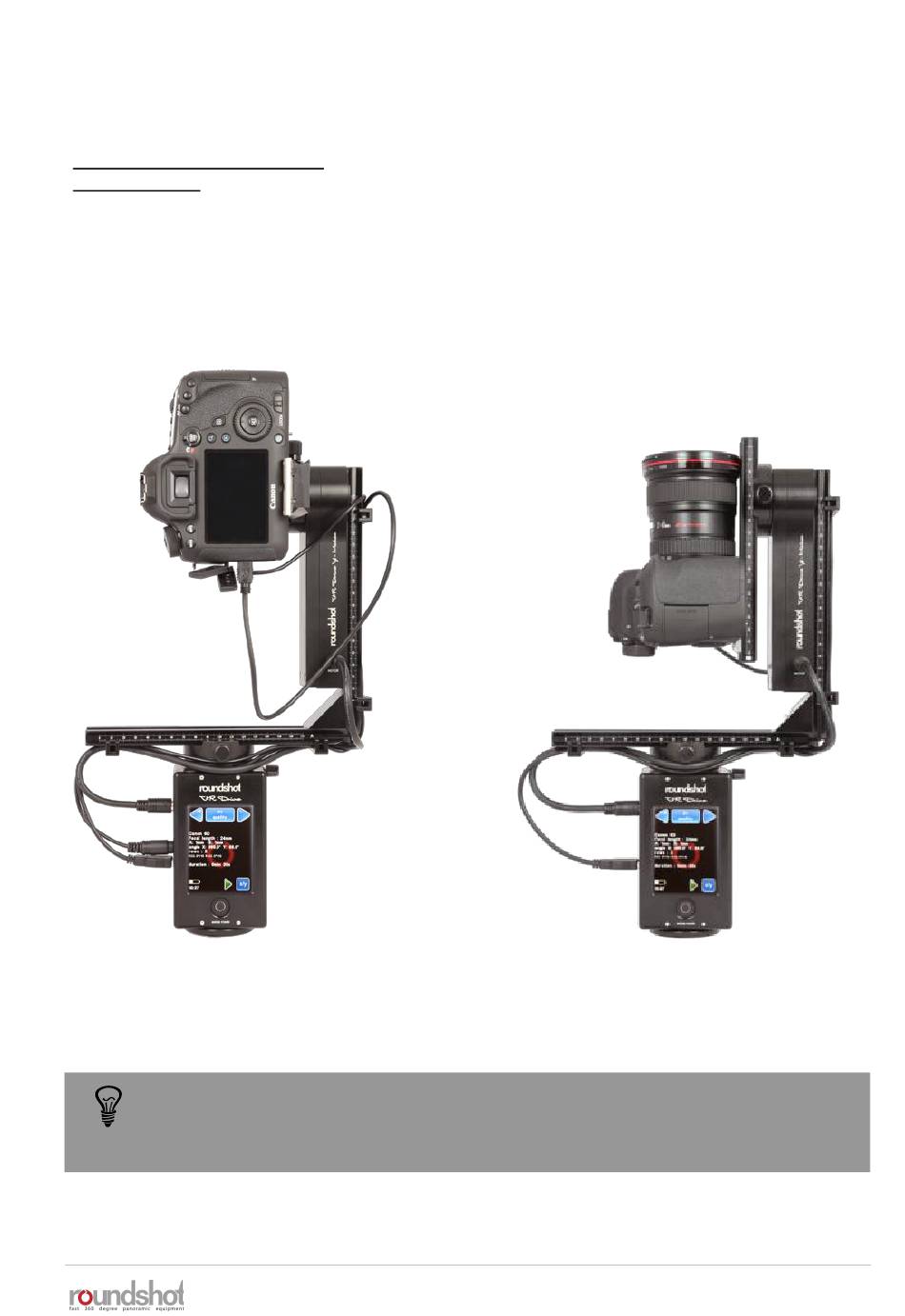

Correctly assembled VR Drive
with L-bracket:
• Camera points in opposite direction of
touch screen
• y-motor on the right-hand side
If the camera points to the ground after turning the VR Drive off, the nodal rail with
the camera was attached from the wrong side. This will invert the image capturing
sequence with the effect that the xml file for stitching will not be valid.
Roundshot VR Drive Instruction Manual – Firmware Version 2.023
• After turning the VR Drive off, the camera
points into the sky at +90° (zenith)
