Roundshot VR Drive Instruction Manual page 103

5.1 Nodal point (continued)
A
mm
[1..999]
Roundshot VR Drive Instruction Manual – Firmware Version 2.023

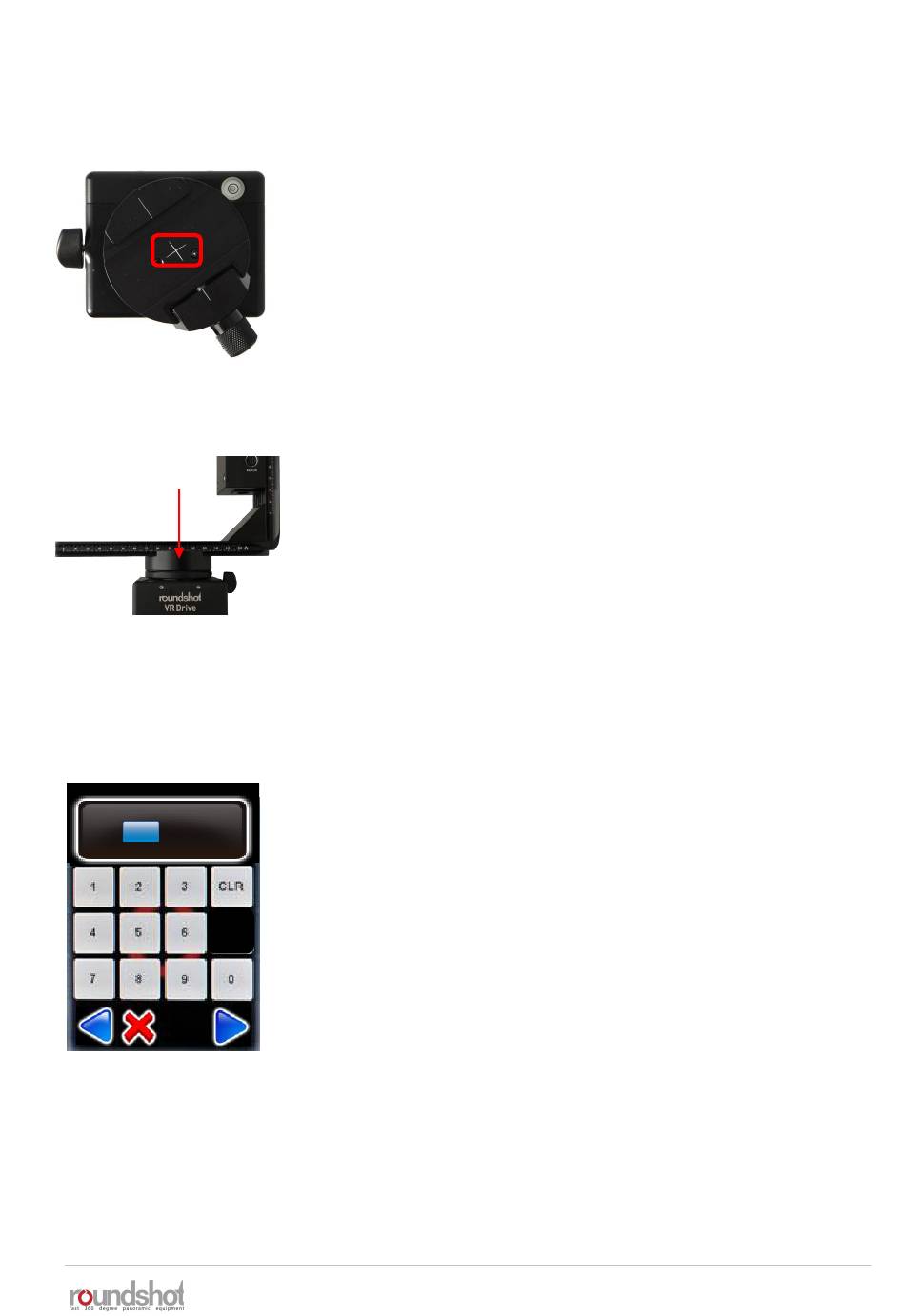

Look through the camera viewfinder, open the VR bracket holder
and slide the VR bracket sideways so that the centre of the
viewfinder is exactly on the centre cross of the rotation axis.
Read the exact A-value (in mm) on the scale of the VR Holder.
[1..999]
Enter the exact A-value (in mm) in the software.
When the camera was moved 90° down with a VR Drive "full", it
will be lifted back up into the 0° position after confirming with
"next".
23/05/2019 102
