Masking the nadir

Removing the remaining fixed elements with pano2VR
If it is necessary to remove also the tripod and the x-motor from the image and get a perfectly
clean nadir, it is possible to patch it with a modified image using the software Pano2VR as
follows.

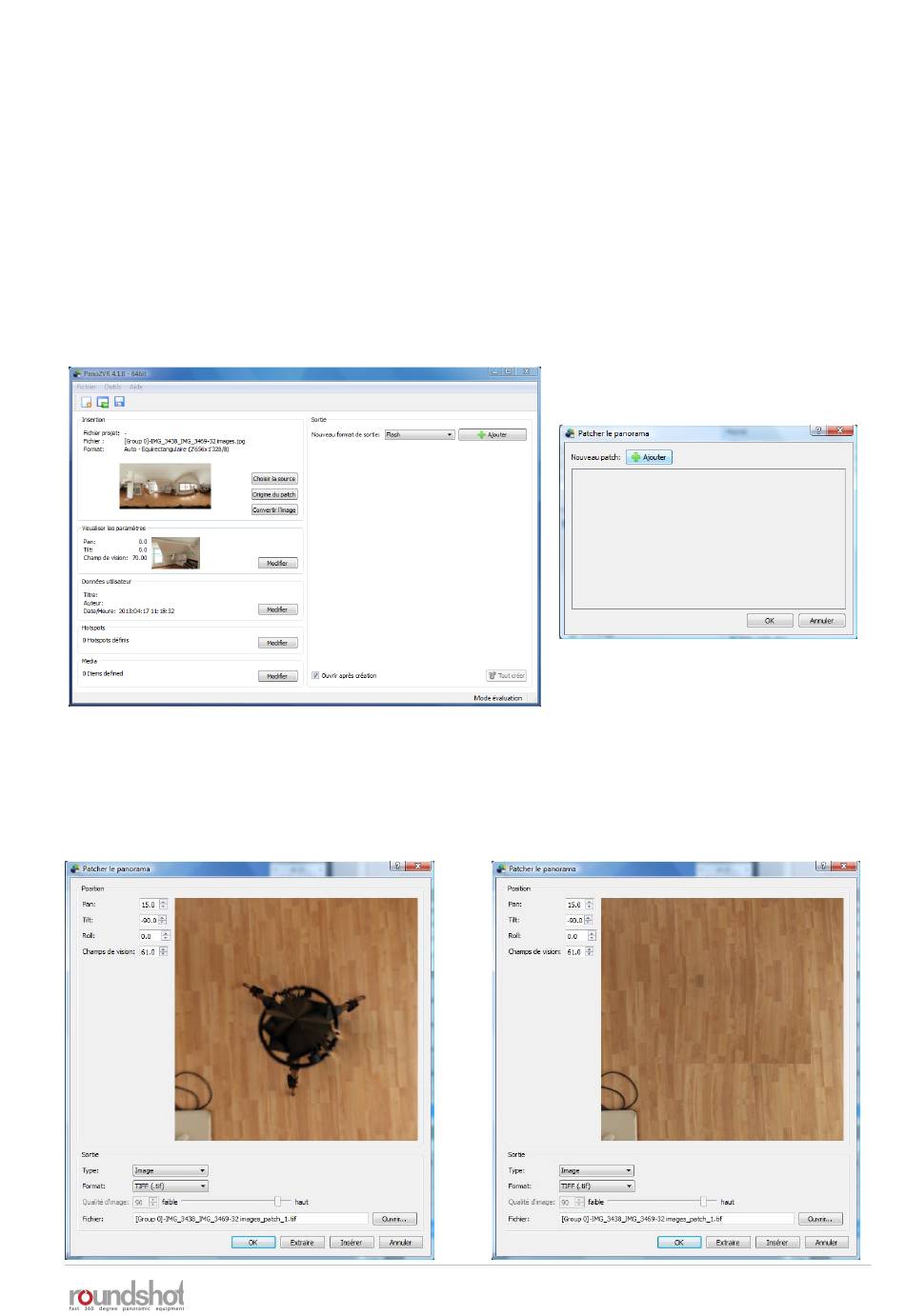

Open Pano2VR and load the panoramic image in tiff or jpeg. Then click on Patch Input to add a
new patch to the nadir area. Click on add.
A new window with a spherical viewer will be opened. Pan tilt the image until you can see only
the area necessary for nadir editing. Then click on extract. The visible image is then saved on
the disk. Open this image and edit it in Photoshop (or similar) then load the patch by clicking on
insert. The image is now corrected and can be exported again into a tiff file.
