2.1.2 Attaching y-motor on bottom plate

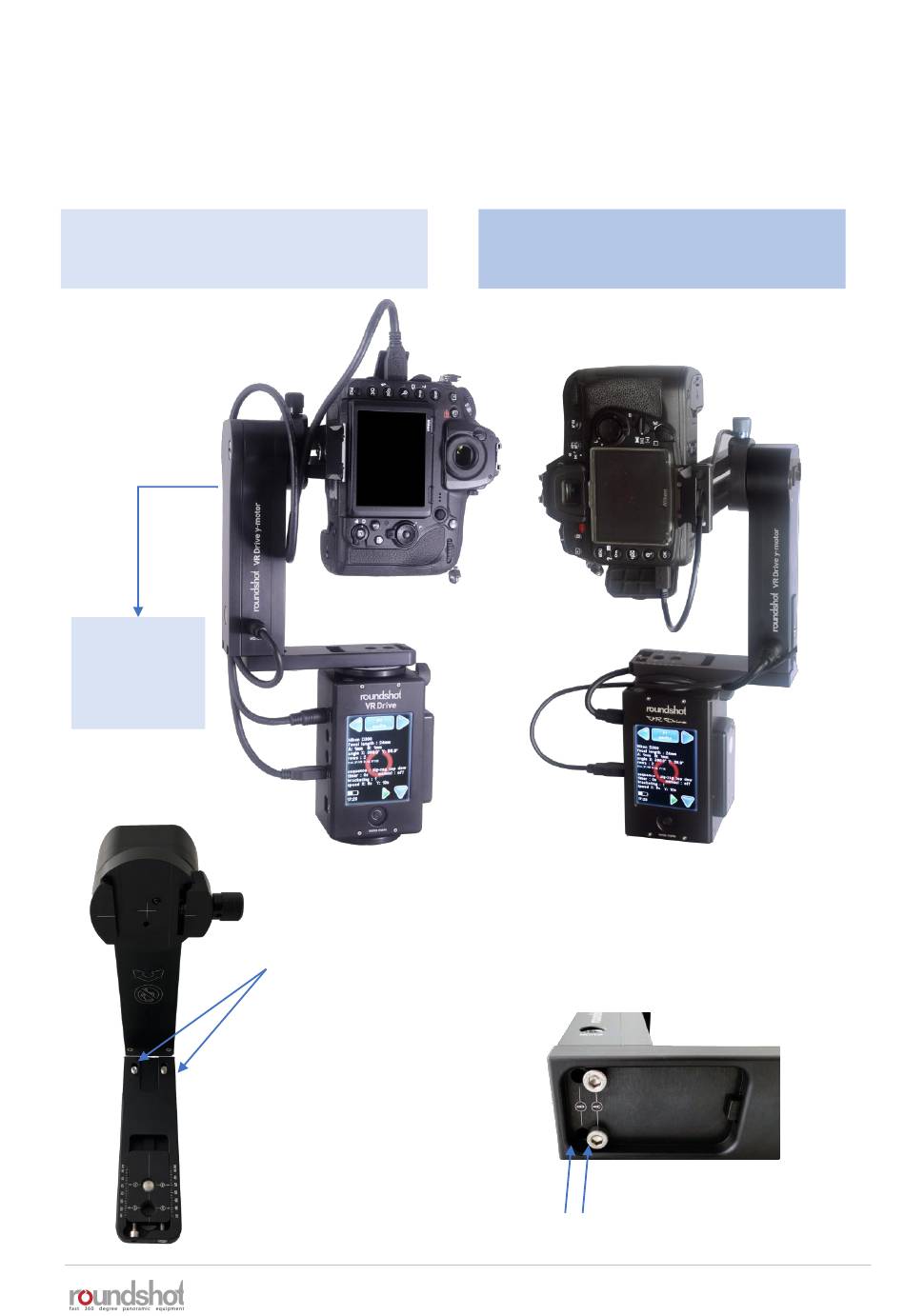

The VR bottom plate (for fixed camera centre position) can be mounted in two ways:
VR Drive with bottom plate, inverted y-
motor (on left) and with slide cover to
protect cables
Requires
inversion of
y-motor at
Seitz factory
Roundshot VR Drive Instruction Manual – Firmware Version 2.023
The VR Drive y-motor is attached on top of
the bottom plate using two screws.
These two screws can be
placed in position "A" or
"B"
VR Drive with bottom plate, standard
VR holder and with standard y-motor
(on right)
"B" "A"
