Summary of Contents for FAAC 746

  • Page 1 VSS LIMITED Sales@vssystems.co.uk 0800 018 2324 & 746 MPS & 746 MPS UNI EN ISO 9001-085...
  • Page 2 Les descriptions et les illustrations du présent manuel sont fournies à titre indicatif. FAAC se réserve le droit d’apporter à tout moment les modifications qu’elle jugera utiles sur ce produit tout en conservant les caractéristiques essentielles, sans devoir pour autant mettre à...
  • Page 3 Via Benini, 1 40069 - Zola Predosa BOLOGNA - ITALY Hereby declares that: the 746 automation system • is intended to be incorporated into machinery, or to be assembled with other machinery to constitute machinery in compliance with the requirements of Directive 89/392 EEC, and subsequent amendments 91/368 EEC, 93/44 EEC and 93/68 EEC;...
  • Page 4: General Safety Instructions

    6) FAAC S.p.A. shall not be liable for any damage or injury caused by improper use of the automation or by any use other than that for which it is intended.
  • Page 5: Description And Technical Characteristics

    AUTOMATION 746 & 746 MPS These instructions apply to the following models: where: 746 EMC Z20 - 746 EMC CAT - 746 EMC RF Ta = opening time The FAAC model 746 automation for sliding gates is an Tc = closing time...
  • Page 6: Mechanical Installation

    Fig. 2 Values are expressed in mm. 3. ELECTRICAL SET-UP (standard system) 230V~ 3x1,5 mm 90° 0÷50 Fig. 5 746 operator with 746 MPS control unit Photocells Key switch 90° Flashing light Fig. 3 Radio receiver 0÷50 4. INSTALLING THE AUTOMATION Fig.
  • Page 7 ENGLISH ENGLISH 5) Secure the gear motor onto the base plate by thightening the nuts as shown in Fig. 12. 6) Set the operator for manual operation as described in section 7. 7) Remove the breather screw as shown in Fig. 13 and keep it in a safe place.
  • Page 8 Z16 or Z20 chain pinion. Proceed as follows: Rest the first rack element level 4.5.1. MODEL 746 EMC CAT (Figs. 19 - 20) on the pinion and mark the point to - Insert the spring pin in the shaft with the aid of a hammer.
  • Page 9: Electrical Connections

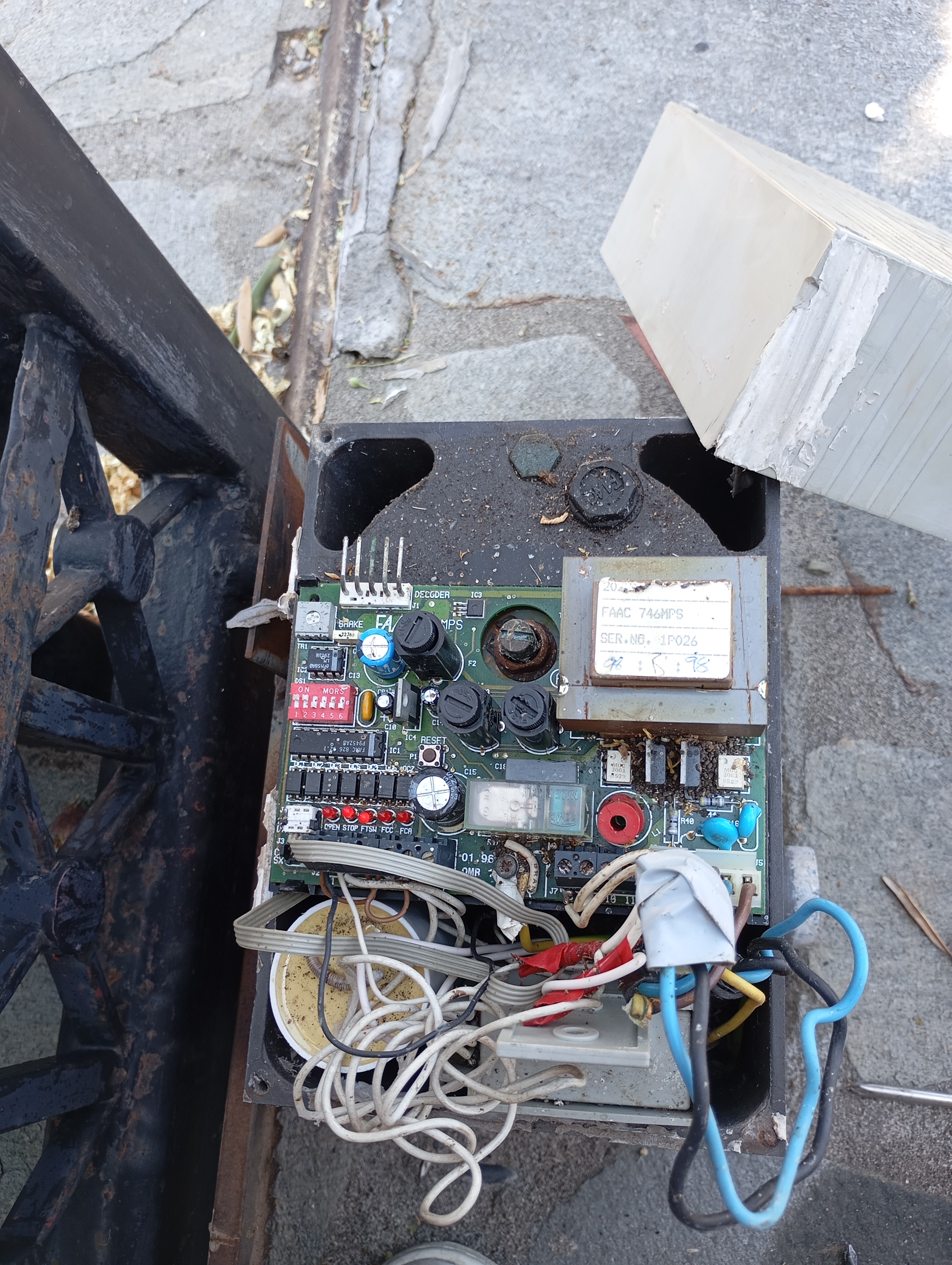

    ENGLISH ENGLISH 5. START-UP 5. 1. 2. 746MPS LAY-OUT 5.1. CONNECTION TO ELECTRONIC CONTROL UNIT Ü Always disconnect the electrical power supply before carrying out any operations on the control unit (connections, programming, maintenance). Warning: On disconnecting connector J6, high voltages 746MPS BRAKE may be present on the capacitor output.
  • Page 10: Indicator Leds

    ENGLISH ENGLISH 5.2. DESCRIPTION 5.2.1. CONNECTOR J1 The connector J1 is used for the quick connection of MINIDEC, 746MPS DECODER, RP RECEIVER boards (Figs. 25,26,27). Accessory boards are to be inserted with their component sides facing the inside of the 746MPS electronic control unit. Always disconnect the power supply before inserting or removing accessory boards.
  • Page 11: Dip Switch Settings

    POSITIONING THE TRAVEL STOP PLATE before any gate movement. This serves to warn any persons in The 746 operator is fitted with an inductive proximity limit switch the vicinity that the gate is about to start moving. (Fig.1 - ref.3). When the latter detects the passage of a plate fastened to the top of the rack, it stops the movement of the gate.
  • Page 12: Torque Adjustment

    When the LED of the opening travel limit switch ment. (FCA) in the 746 electronic control unit (Fig. 23) goes out, Switch on the power supply and check whether the anti- advance the travel stop plate by approximately 45 mm, crushing system operates correctly.
  • Page 13: Manual Operation

    Fig.37. Open or close the gate manually. Fig. 38 REPAIRS For repairs contact an authorised FAAC Repair Centre. Fig. 37 RETURN TO NORMAL OPERATION To prevent accidental operation of the gate during this procedure, turn off the electricity supply to the system before relocking the operator.
  • Page 14 DESCRIPTION The FAAC 746 automation is ideal for controlling vehicle access areas with medium transit frequencies. The FAAC model 746 automation for sliding gates are electromechanical operators which transmit movement to the leaf by means of a pinion with rack or chain coupled in appropriate manner to the sliding gate.
