- Page 1 740D Vertaling van de oorspronkelijke gebruiksaanwijzing Translation of the original instructions Übersetzung der Original-Anleitung Traduction de la notice originale Traducción del manual original...
- Page 2 Eloigner de la portée des enfants les radiocommandes ou tout autre générateur d’im- FAAC declines all liability caused by improper use or use other than that for which the pulsions, pour éviter tout actionnement involontaire de l’automatisme.
-
Page 3: Table Of Contents
7. AUTOMATED SYSTEM TEST page.7 EU DECLARATION OF CONFORMITY The Manufacturer Company name: FAAC S.p.A. Soc. Unipersonale Address: Via Calari, 10 - 40069 Zola Predosa BOLOGNA - ITALY hereby declares on his sole responsibility that the following product: Description: Control unit... -
Page 4: Warnings

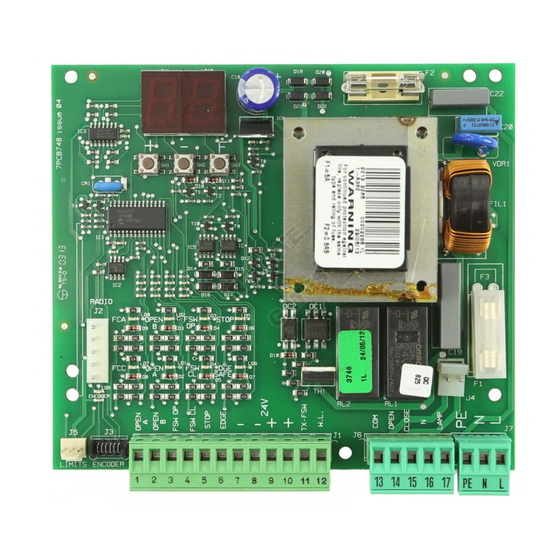

CONTROL BOARD 740D 1. WARNINGS 3. LAYOUT AND COMPONENTS Before attempting any work on the control board (connections, maintenance), always turn off power. Install, upstream of the system, a differential thermal breaker with adequate tripping threshold. Connect the earth cable to the appropriate terminal on the J7 connector of the equipment (see fi... -
Page 5: Connection Of Photocells And Safety Devices
Fig. 5 The most common photocell and safety device lay-outs are shown below (from fi g. 6 to fi g. 13). Connection of a closing safety device and an opening safety device Fig. 6 Fig. 10 740D 732697 - Rev.D... -
Page 6: J7 Terminal Board - Power Supply (Fi G. 2)
In the B and C logics, it always commands gate closure. To install several partial opening pulse generators, connect the N.O. contacts in parallel (see fi g. 14). Fig. 12 740D 732697 - Rev.D... -
Page 7: Connector J2 - Rapid Connection To 5-Pin Radio-Receiver Module
To avoid geopardising correct operation of the system, do not exceed reverses the gate leaf for 2 seconds. If the encoder operates again during the the indicated power. 2-seconds reversing time, it STOPS movement without commanding any reversing. 740D 732697 - Rev.D... -
Page 8: Programming
There is 3 seconds of pre-fl ashing before the closing manoeuvre. = ‘traffi c lights’ function: the output is active only in “closed” status. Do not exceed the output’s maximum load (24Vdc-3W). If necessary, use a relay and a power supply source outside the equipment. 740D 732697 - Rev.D... -
Page 9: Start-Up
“Cycle programming”) it effects 2 sec. of pre-fl ashing (in addition to the value already set with the PF function) at every Open pulse (job request). Can be useful for setting scheduled maintenance jobs. = Active = Disabled 740D 732697 - Rev.D... - Page 10 740D 732697 - Rev.D...
- Page 11 740D 732697 - Rev.D...
- Page 12 740D 732697 - Rev.D...
- Page 13 746 E R 732099 - Rev.D...
- Page 15 ALLGEMEINE SICHERHEITSVORSCHRIFTEN nationale voorschriften ook de bovenstaande normen in acht worden genomen. FAAC is niet aansprakelijk als de regels der goede techniek niet in acht genomen zijn bij de bouw van het sluitwerk dat gemotoriseerd moet worden, noch voor vervormingen ACHTUNG! Um die Sicherheit von Personen zu gewährleisten,...
- Page 16 FAAC S.p.A. Soc. Unipersonale Via Calari, 10 - 40069 Zola Predosa BOLOGNA - ITALY Tel. +39 051 61724 - Fax +39 051 09 57 820 www.faac.it - www.faacgroup.com 740D 732697 - Rev.D...
