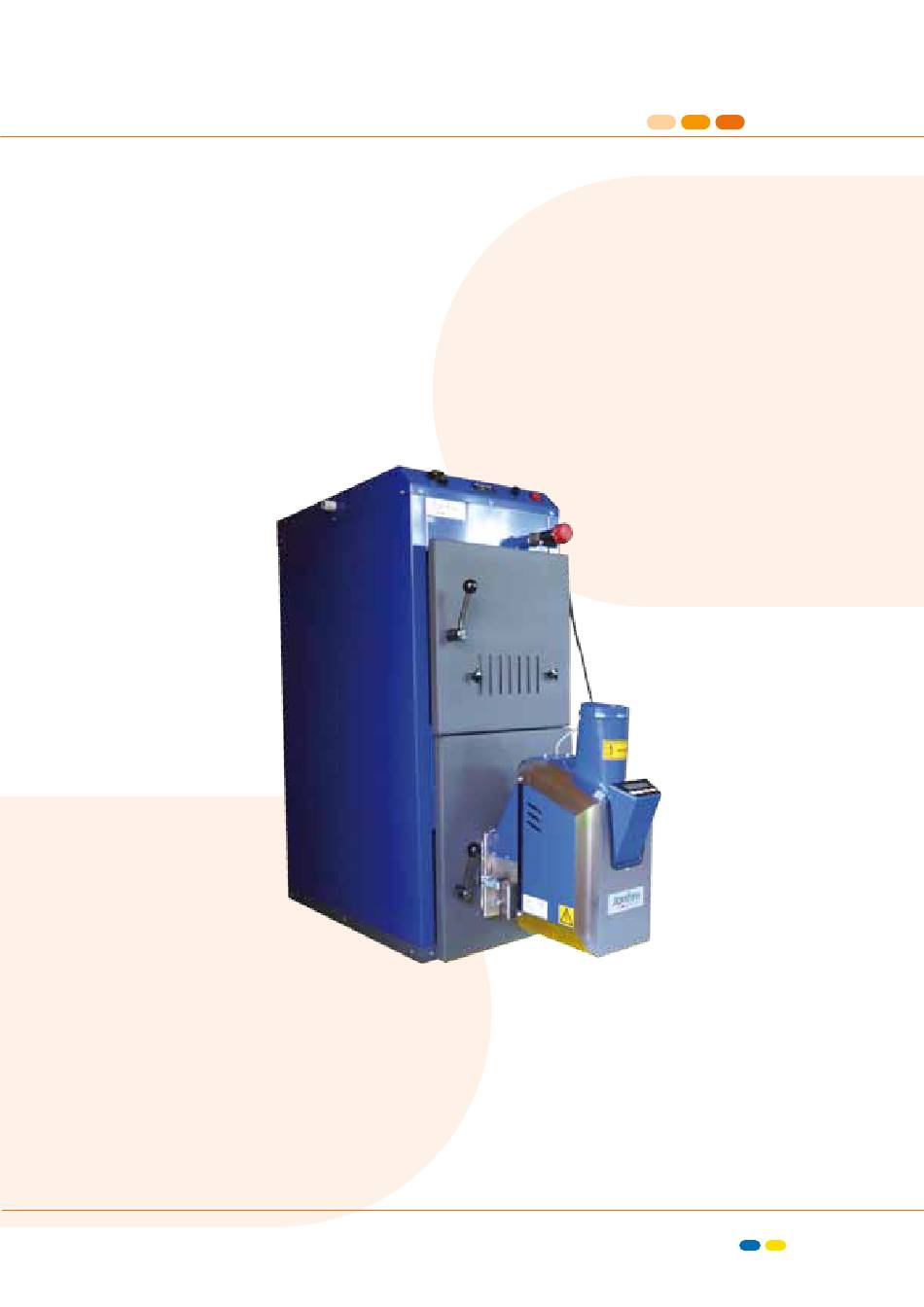

- Page 1 Janfire pelletswärme Janfire Combiflame Boiler for wood pellets, log and brown coal manual swedish quality...
-
Page 2: Warranty Terms
None of our products may be used until they were set into operation by a Janfire authorised expert. The protocol has to be signed by the expert and the customer. It has to be sent to Janfire AB. Otherwise there will be no warranty claim at all. - Page 3 • easy to change from pellets into a log boiler and reverse • easy to clean and maintain The Combiflame is a steel boiler conform with EN 303-5. The combustion chamber consists of 5 mm sheets from ST35JR (EN10025). The outside of the pressure vessel consists of 3 mm. 100 mm...
- Page 4 The connectors for flue gas, thermal relief valve and the water supply are on the backside of the Combiflame. The boiler can be placed on 4 adjustable feet. The Combiflame will be delivered including the catalytic converter, the Janfire pellet burner NH and this manual.
- Page 5 Allowed fuel: The Janfire NH burner can burn pellets from 6 up to 10 mm. We specify pellets which are conform with EN 14961-2 A1. If the boiler is changed into a solid fuel boiler untreated log up to a length of log from about 50 cm and briquets of brown coal can be burned, too.
-
Page 6: Technical Data
(∆ t = 10 K) opening upper door (B x H) 297 x 335 * Take care of the connection piece between boiler and chimney. The resistance of that piece has to be added to the required natural draft of the boiler. Janfire 06.2011... -
Page 7: Safety Installations
15 mm. It is not allowed to set the Combiflame into operation without this safety system! The thermal safety relief system has to be installed by an expert and checked every year. -
Page 8: Mode Of Operation
(3). From the end of the auger system the pellets will reach the store of the burner (5) through a plastic hose (2). The hose is part of the burner safety system. Only Janfire certified hoses may be used. - Page 9 A separate central heating room is required for the installation of the Janfire Combiflame. The use of this room should be only for heating. This room has to be conform to the local terms. The Combiflame may not be installed in living space. The heating room has to be vented and lighted properly. Ask your local authorities for permission before installation.
- Page 10 An additional outside temperature sensor can be added to the burner too. 8.2.3 Operation with external controller The pellet burner can be controlled by an external controller too. Because of this the Combiflame can be integrated in a solar system easily.
- Page 11 180 mm. The flue gas system should be as tight, as short and should have as few angles as possible. If you like to run the Combiflame as an additional boiler to an existing heating system, a separate flue gas system for each boiler is required. Ask you local authorities for permission if you like to connect the Combiflame and a second boiler to the same chimney.
- Page 12 But it is allowed to operate the boiler with pellets in this case. The Combiflame is equipped with a built-in thermal safety relief switch conform with EN 303-5 clause 3.21. In case of the risk of overheating during the operation with pellets, the thermal safety relief switch closes down the power supply of the NH pellet burner and stops the combustion immediately.
- Page 13 Because of that the discharge of the auger system and the infeed of the pellet burner have to be eccentric (min 20 cm). A distance in high from at least 30 cm has to be adhered too. Only Janfire certified hoses my be used. mind. 20 cm...
- Page 14 This part has be put in as last. • Put the front grill in its adapter. • If you want to run the boiler with pellets again, all steps have to be done reverse. 12.1 Draft flap assembly and adjustment Janfire 06.2011...
-
Page 15: Electric Power Supply
14 Setting into operation The Combiflame has to be set into operation by a Janfire certified expert. We do not take any response for any damage which is founded in a not proper setting into operation of the boiler. - Page 16 Ten minutes after you ignite the fire the start-up flap has to be closed. Make sure that a strong fire is burning. Than push in the lever as much as possible to close the flap. Janfire 06.2011...
- Page 17 3. Additionally to Nr. 1 and 2 clean the main heat exchanger an the flue gas system two times a year. We suggest to do this service before christmas and easter. Ask your Janfire Service to help you with this work.
- Page 18 Surface and lever can be very hot. By using the lever on the front of the cartridge drag the cartridge of the catalytic converter out of the boiler. Be careful, the cartridge is heavy. Prevent the catalytic converter from any shock! Janfire 06.2011...
- Page 19 Janfire pelletswärme Clean the surface of the catalytic converter with a mellow brush. Use a vacuum cleaner to suck out the dirt in the converter ducts. Never use compressed air to clean the catalytic converter. Put the cartridge back into position.
-
Page 20: Safety Instructions
Cleaning should only happen if the boiler is cold. Never store any inflammable goods in front of the boiler. You may not dry any laundry or other inflammable goods on the surface of the Combiflame or the flue gas system. - Page 21 Janfire pelletswärme swedish quality...
