TECHNICAL SHEETS

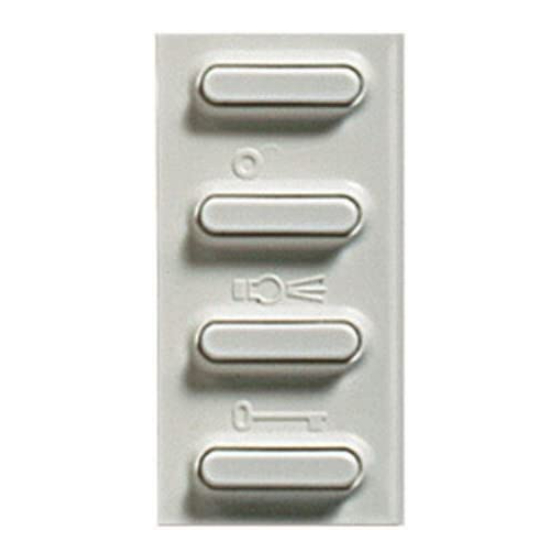

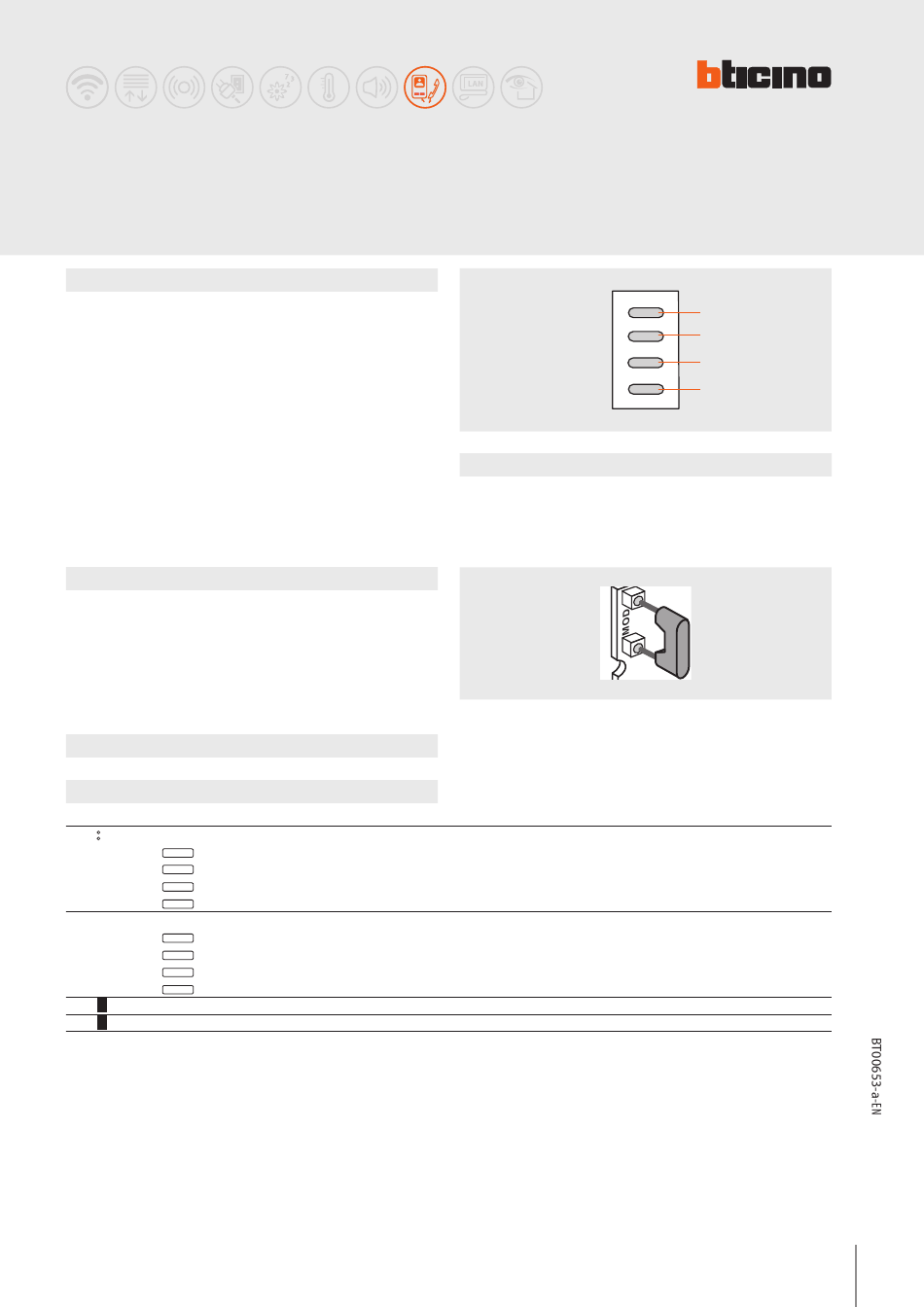

PIVOT 4 key
handset accessory

Description

4 key accessory for handsets item 344032, and video handsets item 344102, 344122, .
It must be installed inside the handset, in the preset location.
It can be used to perform the listed functions, based on the type of configuration set:
- Intercom call among various system devices and apartments (max. 5)
- control of actuators for additional door locks
- control of actuators for general uses and auto-switching on of the entrance panel
- mixed activations
- paging function through the 2 WIRE sound system
- enabling/disabling of home automation scenarios
- apartment intercom in two-family system

Configuration

The device must be configured fisicamente per stabilirne la operating mode:
M - Operating mode
It sets the operating mode allocated to the individual keys of the accessory block.
The mode changes depending on whether the apartment interface, item 346850, has
been installed or not.
Configuration

Selection of MOD configurators

MODE FUNCTION OF KEYS WITHOUT item 346850
MOD= Direct switching on of the EPs
Direct switching on of the EPs configured with P+1
1
Direct switching on of the EPs configured with P+2
2
Direct switching on of the EPs configured with P+3
3
Direct switching on of the EPs configured with P+4
4
Control of the actuator for generic loads (Item 346200)
346200 configured with MOD=9 and P=P+1
1
346200 configured with MOD=9 and P=P+2
2
346200 configured with MOD=9 and P=P+3
3
346200 configured with MOD=9 and P=P+4
4
MOD= 1 Intercom among the apartment with N-1-5
MOD= 2 Intercom among apartments with interface item 346850 – N=1-4

Legend

1 - Key 1
2 - Key 2
3 - Key 3
4 - Key 4
FOR MULTI-FAMILY SYSTEMS WITHIN THE APARTMENT WITH item 346850
Intercom among Handsets with N=1-5
Intercom among apartments configured with N=1-4
346812
1
1
2
2
3
3
4
4
1
2
3
4
1
