Non-Automatic Transfer Switch
Quick Start Instructions
Instruction Leaflet
Effective June 2003
!
THIS INSTRUCTION LEAFLET IS NOT A COMPLETE
SOURCE OF INFORMATION ON THE TRANSFER
EQUIPMENT. INSTALLATION SHOULD NOT BE
STARTED UNTIL THE ENTIRE INSTRUCTION BOOK
HAS BEEN REVIEWED AND UNDERSTOOD. FAIL-
URE TO FOLLOW INSTRUCTIONS CAN RESULT IN
DEATH, SEVERE PERSONAL INJURY OR PROPER-
TY DAMAGE.

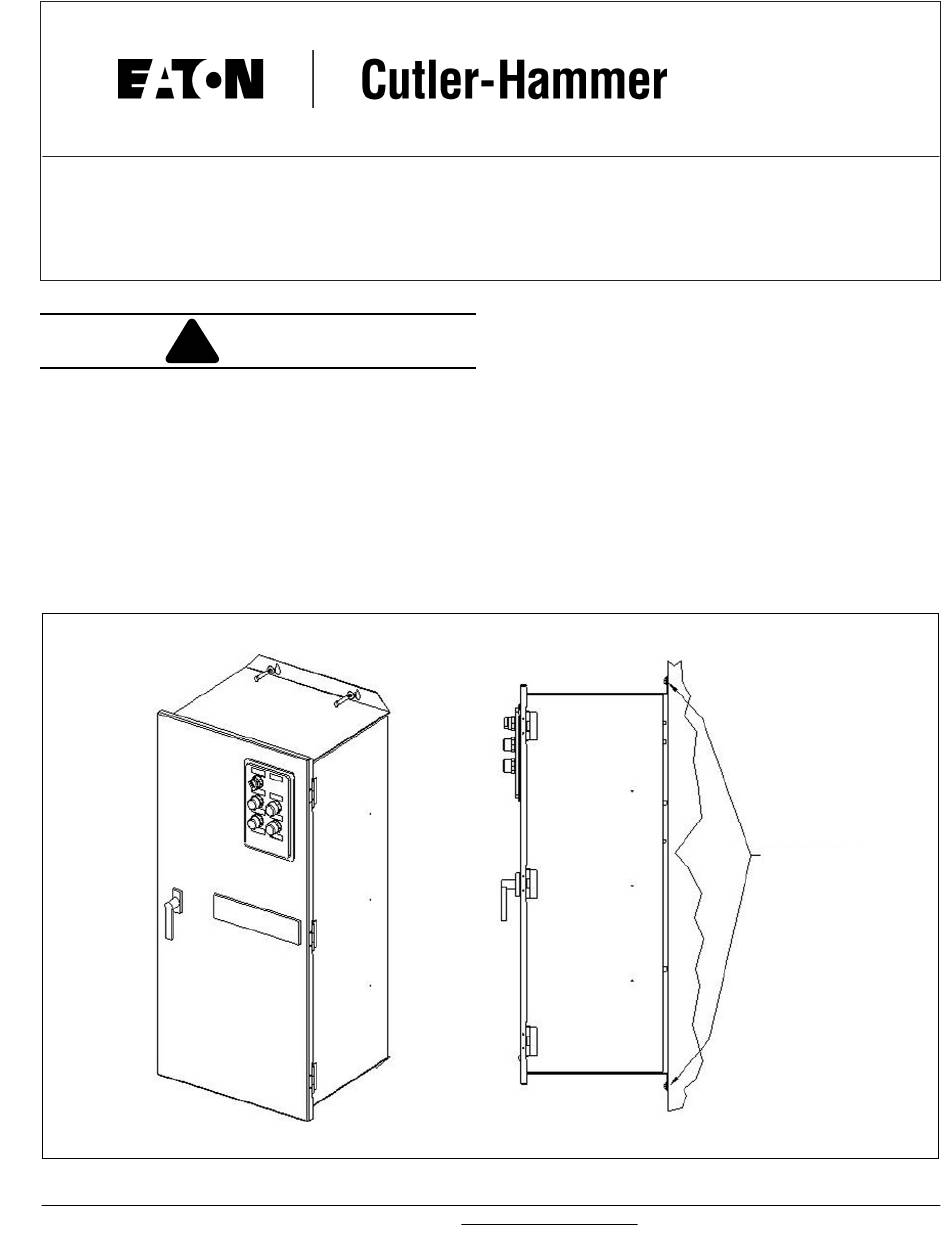

Step 1: Mount the transfer switch on a flat rigid surface
(Figure 1). Shim if necessary. For seismic mounting
requirements, check the instruction book.
Figure 1 Mounting Details
IM01602002E
WARNING
For more information visit: www.cutler-hammer.eaton.com
Shim if Necessary
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Eaton Cutler-Hammer
Summary of Contents for Eaton Cutler-Hammer
- Page 1 DEATH, SEVERE PERSONAL INJURY OR PROPER- TY DAMAGE. Step 1: Mount the transfer switch on a flat rigid surface (Figure 1). Shim if necessary. For seismic mounting requirements, check the instruction book. Shim if Necessary Figure 1 Mounting Details IM01602002E For more information visit: www.cutler-hammer.eaton.com...
- Page 2 Availability Relay (Not for Customer Use) Transfer Motor Disconnect Mechanism KV Voltage Relay Source 2 Molded Voltage Selection Case Device Connectors Source 2 (S2) Power Terminals Figure 2 400A, 4 Pole, Non-Automatic Transfer Switch Interior For more information visit: www.cutler-hammer.eaton.com IM01602002E...
- Page 3 Voltage measurements should be taken the switch is properly applied for the system voltage phase to phase and phase to neutral. The following lights must be ON: Source 1 Available Source 1 Connected Figure 5 Non-Automatic Device Panel IM01602002E For more information visit: www.cutler-hammer.eaton.com...
- Page 4 The following lights should be ON: Source 1 Available Source 1 Available Source 1 Connected Source 2 Available Source 2 Available Source 2 Connected Figure 6 Utility Supplying Load and Generator Running Figure 7 Generator Supplying Load For more information visit: www.cutler-hammer.eaton.com IM01602002E...
- Page 5 Source 1/Source 2 Selector Switch is Figure 8 Service Disconnect Energized Figure 9 Disconnect Energized Disconnected Position Indicated by Both Connected Lights being Extinguished Figure 10 Service Disconnect Disconnected Figure 11 Disconnect Disconnected IM01602002E For more information visit: www.cutler-hammer.eaton.com...
- Page 6 Non-Automatic Instruction Leaflet Transfer Switch Page 6 Effective: June 2003 Quick Start Instructions For more information visit: www.cutler-hammer.eaton.com IM01602002E...
- Page 7 Instruction Leaflet Non-Automatic Transfer Switch Effective: June 2003 Page 7 Quick Start Instructions IM01602002E For more information visit: www.cutler-hammer.eaton.com...
- Page 8 Non-Automatic Instruction Leaflet Transfer Switch Page 8 Effective: June 2003 Quick Start Instructions Eaton Corporation Cutler-Hammer business unit 1000 Cherrington Parkway Moon Township, PA 15108-4312 tel: 1-800-525-2000 www.cutler-hammer.eaton.com © 2003 Eaton Corporation All Rights Reserved Printed in USA Publication No. IM01602002E (ISI)
