120 and 240 vdc electrical (solenoid) operator on j-frame and k-frame series c circuit breakers and molded case switches

Advertisement

Quick Links

Instructions for Installation of 120 and 240 Vdc Electrical
(Solenoid) Operator on J-Frame and K-Frame Series C Circuit
Breakers and Molded Case Switches
!
DO NOT ATTEMPT TO INSTALL OR PERFORM MAIN-
TENANCE ON EQUIPMENT WHILE IT IS ENERGIZED.
DEATH, SEVERE PERSONAL INJURY, OR SUBSTAN-
TIAL PROPERTY DAMAGE CAN RESULT FROM CON-
TACT WITH ENERGIZED EQUIPMENT. ALWAYS VER-
IFY THAT NO VOLTAGE IS PRESENT BEFORE PRO-
CEEDING WITH TASK, AND ALWAYS FOLLOW GEN-
ERALLY ACCEPTED SAFETY PROCEDURES.
CUTLER-HAMMER IS NOT LIABLE FOR THE MISAP-
PLICATION OR MISINSTALLATION OF ITS PRODUCTS.
The user is cautioned to observe all recommendations,
warnings, and cautions relating to the safety of person-
nel and equipment, as well as, all general and local
health and safety laws, codes and procedures.
The recommendations and information contained herein
are based on Cutler-Hammer experience and judge-
ment, but should not be considered to be all-inclusive or
covering every application or circumstance which may
arise. If any questions arise, contact Cutler-Hammer for
further information or instructions.
1-0 INTRODUCTION
General Information
The electrical operator (Figure 1-1) is a dual-solenoid
mechanism for local and remote circuit breaker ON and
OFF (reset) switching. The electrical operator is mount-
ed on the cover of the circuit breaker and provides high
speed switching with operating times of less than 5
cycles (80 ms), making it suitable for small generator
synchronizing operations. The electrical operator has a
terminal block for control connections. Catalog numbers
and electrical rating data are shown in Table 1.1. The
electrical operator is Underwriters Laboratories, Inc.
Iisted as a circuit breaker accessory suitable for field
installation under UL File E64983 .
The electrical operator is suitable for application with 3
and 4-pole Series C circuit breaker types J-Frame and
K-Frame.
UL listing pending.
Effective April 2004 Supersedes I.L. 29C211D dated October 2002
WARNING

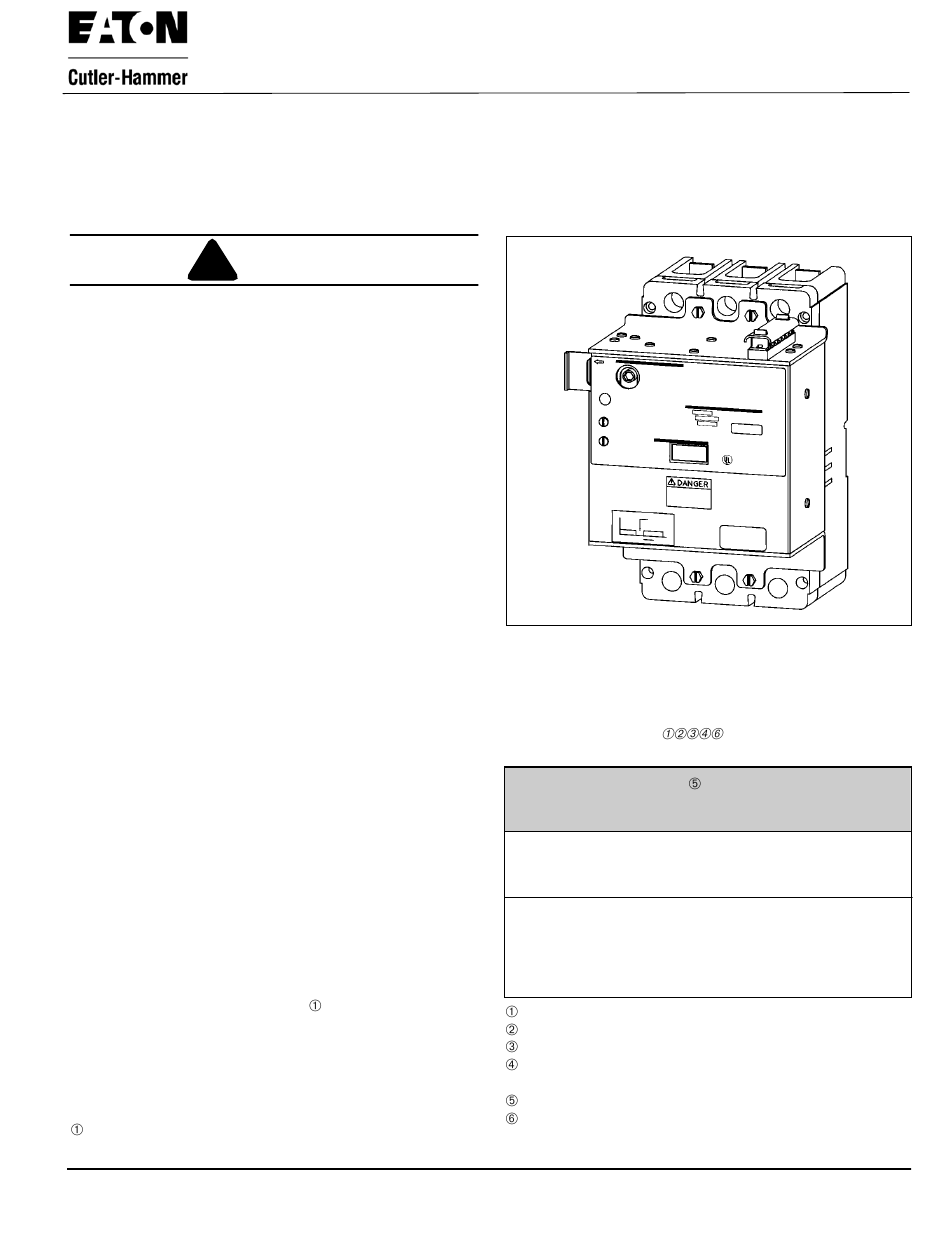

Figure 1-1 Electrical (Solenoid) Operator Installed on K-
Frame Circuit Breaker
Table 1.1 Electrical (Solenoid) Operator Catalog Numbers
Electrical Rating Data
Additional Data)
Catalog
Voltage
Numbers
(V)
J-Frame
EOP2T07DC
120
240
EOP2T11DC
K-Frame
EOP3MT07DC
120
EOP3MT11DC
240
Frequency: DC
Maximum operating time: 5cycles (80ms)
Maximum rate of operation: 4 operations per minute
Tolerance: ±10% of nominal voltage. Short lead
length from DC power supply recommended
Maximum coil on time: 5 seconds
Power supply to be one KVA minimum
I.L. 29C211E
(See Figure 1-4 for
Inrush
Fuse
Current
(A)
(A) DC
31
10
20
5
31
10
20
5
