Adjustment Description
Required Test Instruments
Radio communication test set (HP8921)
10V/3A regulated DC power supply
Digital voltmeter
Ammeter
Preparation
Place the board to be tested on the test fixture (please ensure good connection between each test point
and the fixture), and connect the board to a power supply.
Tuning Procedures
1. Operations before Tuning
1)
PCB Tuning:
Before the PCB arrives each work station for specification inspection, programs must be
downloaded and EEPROM must be initialized by the profiles (downloading with a test
framework/ initializing via programming software or through wired clone). If any adjustment is
required, apply a programming cable to enter the adjustment mode for PC programming or
manual adjustment.
2)

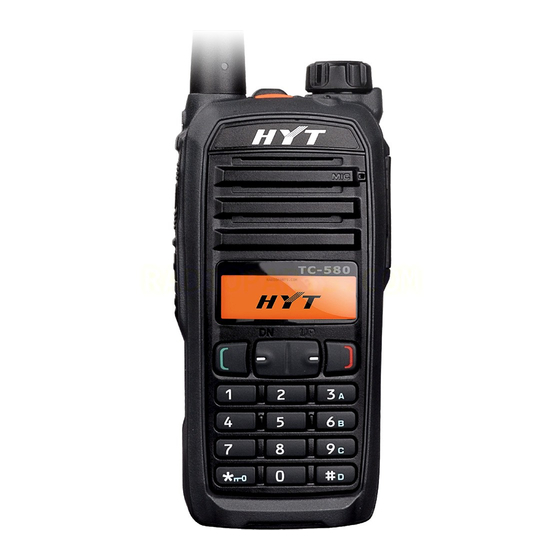

Radio Tuning:
1) Manual Tuning: Hold down PTT and SK1 for 2 seconds while powering on the radio. Then
the LCD displays "Tuning Mode". After the keys are released, press OK, and then press
UP/DN to select your desired tuning item. To enter this item, press OK again. To return to the
previous menu, press C. The LED solidly glows red for TX group items and green for RX
group items. Follow the operation instructions to tune each item.
2) Automatic Tuning: Connect a programming cable to the radio for real-time tuning through
PC.
3)
Wired Clone:
1) Connect two radios using a cloning cable. Then hold down SK1 for 2 seconds while
powering the source radio on, and the radio enters Clone mode, with red LED flashing once.
The target radio can be directly turned on to enter the mode.
2) Press SK2 in Clone mode to switch to Factory Clone mode, with red LED flashing twice.
1 set
1 set
1 set
1 set
40
TC-580 Service Manual
