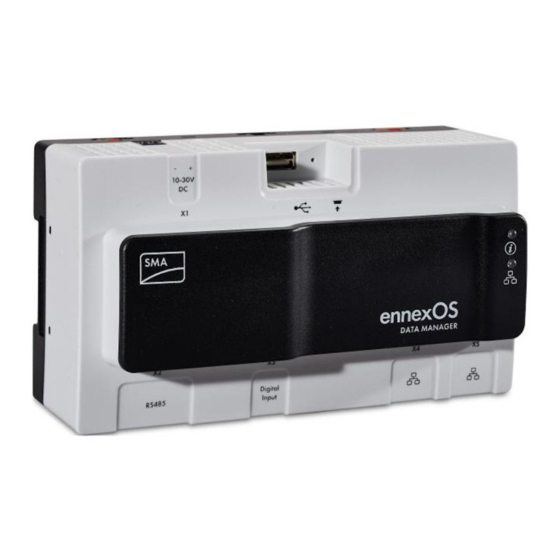

- Page 1 Technical Information SMA Modbus® Interface SMA DATA MANAGER M ENGLISH EDMM-10-Modbus-TI-en-11 | Version 1.1...
- Page 2 It is the user’s responsibility to determine whether the downloaded content is up to date and to comply with it. SMA shall not be held liable for any damage as well as any assumption of consequential costs for customer systems by SMA that may result from the user’s failure to do so.
-
Page 3: Table Of Contents
Register Address, Register Width and Data Block ....... 3.4.3 Data Transmission................... 3.4.4 Reading and Writing of Data ..............3.4.5 SMA Data Types and NaN Values ............10 3.4.6 SMA Data Formats................. 10 3.4.7 SMA Firmware Data Formats ..............11 Modbus Ports ......................12 Data Processing and Time Behavior ................. -
Page 4: Information On This Document
• Knowledge of and compliance with this document and all safety information Content and Structure of this Document This document does not contain any information on the Modbus registers provided by SMA products. Furthermore, no information on the firmware version to be installed on the respective SMA product is included. -
Page 5: Symbols In The Document
SMA Solar Technology AG 1 Information on this Document Symbols in the Document Symbol Explanation Information that is important for a specific topic or goal, but is not safety-relevant Indicates a requirement for meeting a specific goal ☐ Desired result ☑... -
Page 6: Safety
SMA Solar Technology AG Safety Intended Use The Modbus interface of the supported SMA products is designed for industrial use and has the following tasks: • Remote control of the grid management services of a PV system • Remote-controlled querying of the measured values of a PV system •... - Page 7 The reading and writing access to data points is possible after activating the Modbus interface. All parameter changes are shown on the user interface of the SMA product. • Ensure that the Modbus interface is still active after resetting the SMA product to default settings.
-
Page 8: Product Overview
For supported Modbus register (see Section 4, page 15). System Topology An SMA product with Modbus interface is connected with the SCADA system of the electric utility company or the grid operator via Ethernet. The Modbus interface also enables communication via the Modbus protocol. From the perspective of the Modbus protocol, an SMA product with Modbus interface constitutes a Modbus server that supports the SMA Modbus profile. -
Page 9: Data Transmission
Reading and Writing of Data The Modbus interface can be used via the protocol Modbus TCP. Using Modbus TCP enables read- and write access to the Modbus register. SMA products with Modbus interface use the Modbus TCP as standard. Access type... -
Page 10: Sma Data Types And Nan Values
The following SMA data formats describe how SMA data is to be interpreted. The data formats are used, for example, for the display of data or for its further processing. The SMA data formats are listed in the Format column of the assignment tables. -
Page 11: Sma Firmware Data Formats
SMA Solar Technology AG 3 Product Overview Format Explanation ENUM Coded numerical values. The breakdown of the possible codes can be found directly under the designation of the Modbus register in the assignment tables. TAGLIST FIX0 Decimal number, commercially rounded, without decimal place. -
Page 12: Modbus Ports
NOTICE Damage of SMA products due to cyclical changing of parameters The parameters of SMA products that can be changed with writable Modbus registers (RW) are intended for long-term storage of device settings. Cyclical changing of these parameters leads to destruction of the flash memory of the SMA products. -
Page 13: Frequently Used Number Codes
3 Product Overview Signal runtime via the SMA product with Modbus interface The signal runtime of the SMA product with Modbus is usually 100 ms. The signal runtime is the time required by the SMA product to process incoming Modbus commands. - Page 14 3 Product Overview SMA Solar Technology AG Code Explanation Code Explanation 1391 Active power limitation P via digital in- puts Operation 1392 Errors Open 1393 Wait for PV voltage Contact the manufacturer 1394 Wait for valid AC grid Contact the installer...
-
Page 15: Assignment Tables
The following table lists the parameters provided by the communication product and measured values that can be accessed at Unit ID = 1: Description/number codes Type Format Access 30001 Version number of the SMA profile 30003 SUSyID (Device ID) 30005 Serial number 30007... - Page 16 4 Assignment Tables SMA Solar Technology AG Description/number codes Type Format Access 30513 Total energy fed in on all line conductors FIX0 (in Wh) 30775 Current active power on all line conductors FIX0 30805 Reactive power on all line conductors (VAr) 2...
- Page 17 SMA Solar Technology AG 4 Assignment Tables Description/number codes Type Format Access 34653 Digital input group 1, coded as status: ENUM • 311 = Open • 2055 = DI1 • 2056 = DI1 DI2 • 2057 = DI1 DI2 DI3 •...
- Page 18 4 Assignment Tables SMA Solar Technology AG Description/number codes Type Format Access 40022 Reactive power setpoint Q, in % of the FIX2 maximum active power (PMAX) of the PV plant. Value range: • -100% to -1% = load • 0% = no reactive power •...
-
Page 19: Contact
SMA France S.A.S. Ελλάδα SMA Service Partner AKTOR Lyon Κύπρος Αθήνα +33 472 22 97 00 +30 210 8184550 SMA Online Service Center : www.SMA-Service.com SMA Online Service Center: www.SMA-Service.com España SMA Ibérica Tecnología Solar, United King- SMA Solar UK Ltd. - Page 20 SMA Solar (Thailand) Co., Ltd. 대한민국 SMA Technology Korea Co., Ltd. กรุ ง เทพฯ 서울 +66 2 670 6999 +82-2-520-2666 South Africa SMA Solar Technology South Argentina SMA South America SPA Africa Pty Ltd. Brasil Santiago de Chile Cape Town Chile +562 2820 2101 08600SUNNY (08600 78669) Perú...
- Page 22 www.SMA-Solar.com...
