SMA PIGGY-BACK Quick Start Manual

SMA BLUETOOTH
Version: 1.0
This document gives additional information on the installation of the SMA Bluetooth
This instruction does NOT replace the Bluetooth Piggy-Back Installation Guide. Pay attention to all
operation and safety instructions listed in the Installation Guide of the Bluetooth Piggy-Back. The
Installation Guide describes how to connect the Bluetooth Piggy-Back. The Installation Guide is
delivered with the Bluetooth Piggy-Back.
Determine a free NetID before installation of the SMA
Bluetooth Piggy-Back
SMA Solar Technology recommends the determination of a free NetID using a mobile
communications device (e.g. Sunny Beam with Bluetooth or a laptop with Bluetooth and the Sunny
Explorer software) before installation of the communication interface. To find out how to determine a
free NetID please refer to the relevant instructions of the communications product.
Commissioning of a Bluetooth PV system always with 1 master only.
Always carry out the commissioning of a Bluetooth PV system with only 1 master (e.g.
Sunny Beam with Bluetooth, Sunny Explorer). You may integrate further masters into the
Bluetooth Network as soon as the Bluetooth network exists.
Sunny Beam with Bluetooth and SMA Bluetooth Repeater
The Sunny Beam with Bluetooth and the SMA Bluetooth Repeater can not register any
Bluetooth devices which are set to NetID 1. Only NetIDs from 2 to 9 and from A to F are
possible.
Information for the installation of
the communication interface
Take note of the following additions to the installation of the
communication interface:

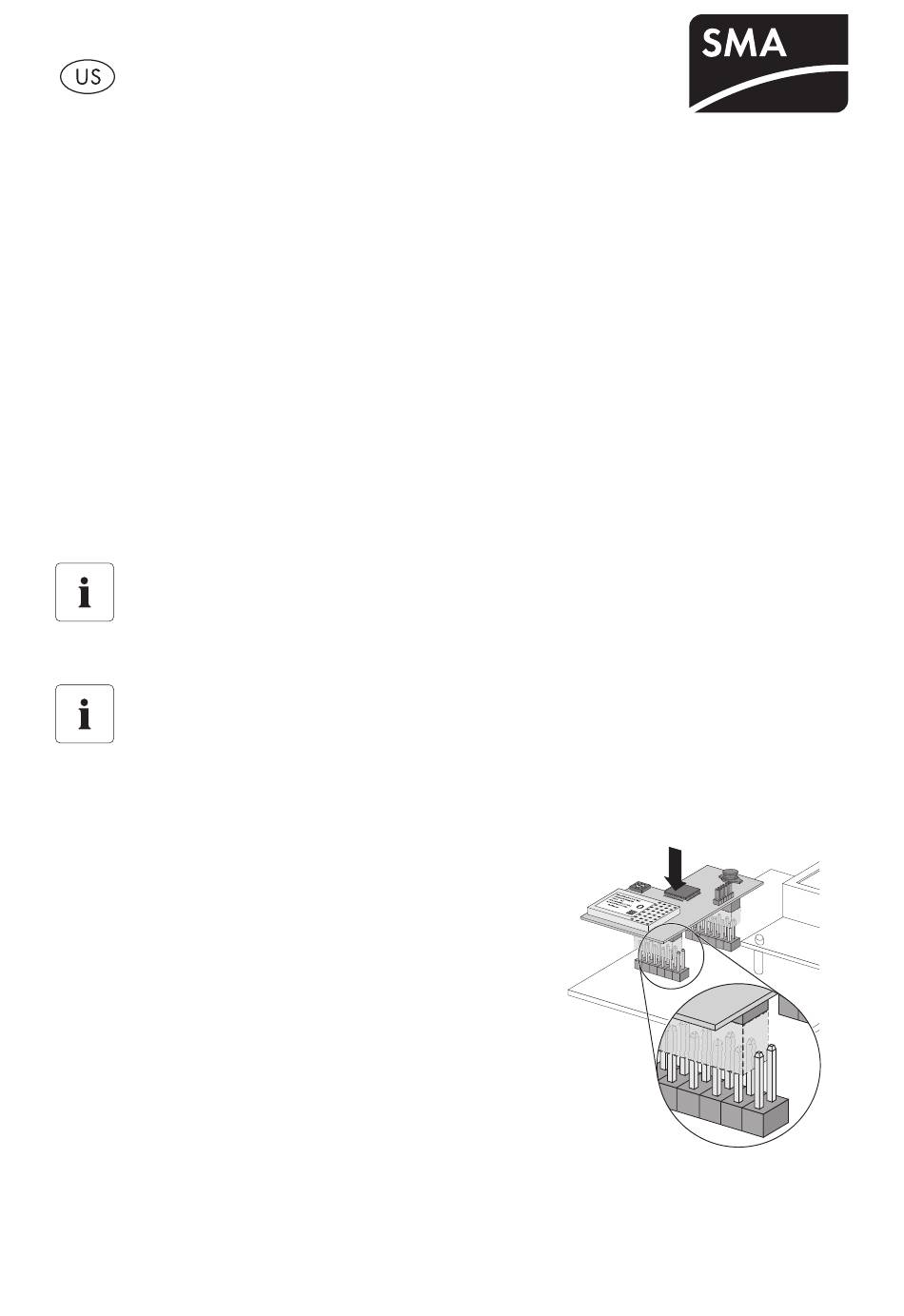

• During installation of the communication interface,
ensure that the communication interface is left-aligned
on the interface socket. The far right pins on the lower
short row of pins remain free.
®
PIGGY-BACK
Mat.-Nr.:
1/2
98-0019110
®
Piggy-Back.
BTPB_E-IUS092910
