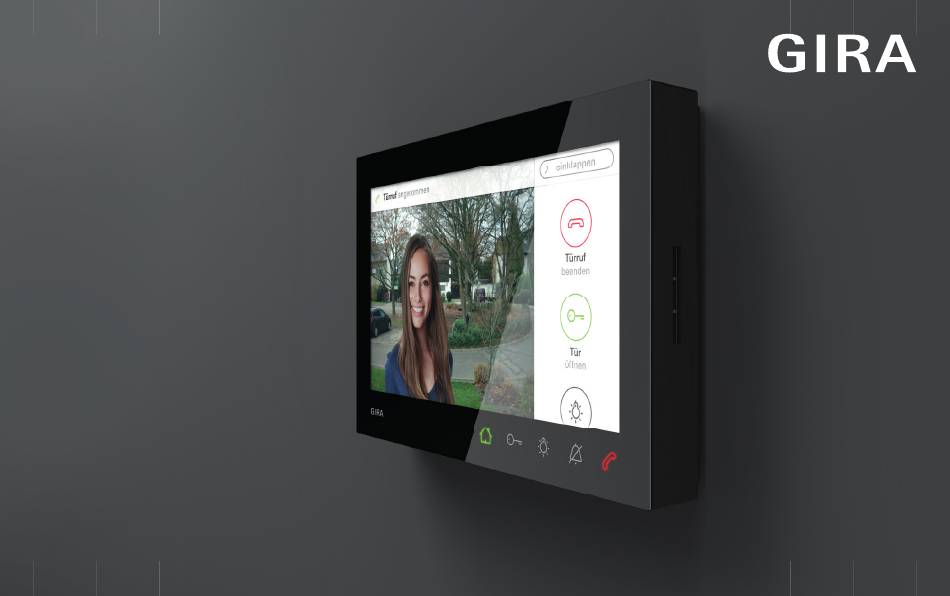

Gira surface-mounted
video home station 7
Operating
instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Surface-mounted video home station 7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gira Surface-mounted video home station 7

Summary of Contents for Gira Surface-mounted video home station 7

  • Page 1 Gira surface-mounted video home station 7 Operating instructions...

  • Page 2: Table Of Contents

    Table of contents Table of contents Menu bar — quick access .... 12 Expanding or collapsing menu bar ....12 Setting ring tone melody volume ....13 Product features ......3 Opening image memory ......13 Device description ......4 Opening cameras ........

  • Page 3: Product Features

    Device ........... 30 Product features Activating 30s screen lock ......30 The surface-mounted video home station 7 from the Setting ring tone melodies and button tones 31 Gira door communication system is a fully pre- Setting device parameters ......32 assembled unit with a 17.78 cm (7") colour TFT...

  • Page 4: Device Description

    Device description Device description Device description – details collapse Functions Cameras access Office GIRA Door communication call up Device Ringtone volume change Settings access Screen with touch function Menu bar, can be expanded or collapsed Speaker opening Accept/end door call...

  • Page 5: Operation

    Functions Controlling the door opener (see also page 11). Cameras access Direct switching of a switching actuator Office GIRA Door communication call up (see also page 11). Device Switching the ring tone off and back on Ringtone volume (see also page 10).

  • Page 6: Normal Conversation Mode

    Normal conversation mode Normal conversation mode Maximum conversation duration The maximum call duration is 2 minutes. The call is automatically terminated when 2 minutes Door call Front door have elapsed. When using an additional power supply Door call accept If there is an incoming call (audio, video, internal call), flashes for 2 min and the home screen opens automatically.

  • Page 7: Accepting Door Call

    Normal conversation mode Accepting door call Accept the call either via " Door call accept" in the menu bar or directly via , and start the voice Door call Front door communication. Door call accept Setting the speaker volume Select "Settings access" and "Voice volume change" Door in the menu bar during voice communication.

  • Page 8: Saving Image

    Normal conversation mode Saving images (Only possible if enabled by the installer) collapse Saving images manually If a door call is accepted, images can be saved Door manually during the call. open For this, press " Image capture" in the menu bar. Please note the data privacy notice on page 23.

  • Page 9: Enforcement Function

    Normal conversation mode Enforcement function Use the enforcement function as soon as the background noise at the door station prevents the Override function activated collapse person at the front door from hearing you. 1. Keep pressed during the conversation. Door conversation The message "Override function activated"...

  • Page 10: Resuming Door Call

    1. Press briefly. lights up red continuously: The ring tone is permanently switched off. Door call accept GIRA Door communication 2. Press again briefly: The ring tone is switched on again. Door open...

  • Page 11: Switching Functions

    • With " Door open" in the menu bar. Door call accept GIRA Door communication • By pressing In the case of several doors, the door opener for the Door open door station from which the door call originated is activated within 2 min.

  • Page 12: Menu Bar - Quick Access

    You can see the standard menu bar on the left Ringtone volume change (Changing the ring tone volume and opening Settings GIRA Door communication settings). access The menu bar can be collapsed or expanded at any time. 1. Press "Collapse" to collapse the menu bar.

  • Page 13: Setting Ring Tone Melody Volume

    The ring tone volume can be changed Functioins Cameras in seven stages using the slider. The volume is saved access Office GIRA Door communication call up automatically. Switching off ring tone, see page 10. Device Ringtone volume change...

  • Page 14: Opening Cameras

    (Only visible when enabled by the installer) collapse You can switch the listed camera(s) on and off Funktionen Cameras Image memory access manually. Cameras access GIRA Door communication access Gerät Ringtone volume Switching the camera on Camera 1 change Settings switch on access Images can only be saved manually when the camera is switched on and the image memory is unlocked.

  • Page 15: Internal Call

    1. Select the target (here: "Office call up") in the Funktionen Cameras access menu bar. The assigned home station is called Office GIRA Door communication call up flashes red. Gerät Ringtone volume 2. The internal call has been accepted. Feedback via...

  • Page 16: Switching On And Off Autom. Internal Call

    Switching on and off automatic internal call (Only visible when enabled by the installer) collapse Functions Cameras access Office GIRA Door communication call up Auto. internal calling switch on Internal call from another home station AUTO Auto. door open. switch on...
  • Page 17 Functions Cameras access An incoming internal call is accepted automatically. Office GIRA Door communication call up lights up continuously red). Auto. internal calling switch on AUTO Auto. door open. Switching on or off automatic door opener...

  • Page 18: Settings

    Settings Settings Press and select “Settings access” in the menu bar. The following view appears: exit Settings Functions Cameras Image meomry Door calls Internal calls Floor calls Manage favourites Navigate the menu by scrolling with your finger.
  • Page 19 Find details regarding the firmware and hardware versions, bus address and index version here. You can also review the EULA and legal notices here. You Licence agreement Information can save the EULA to a microSD card. Gira hotline's contact details can also Legal information be found here. Contact details...

  • Page 20: Input Screen

    Input screen Input screen The surface-mounted video home station 7 has two input screens: • A numerical input screen (A) for entering date and time or PIN. • An alphabet input screen (B) for spelling out designations. HH:MM to delete characters. Each character is deleted separately.

  • Page 21: Functions

    Functions Functions Manage cameras (Only visible when at least one camera assigned by exit Settings the installer). Functions Cameras Cameras Activate cameras manually Set the camera switch-off time Switch off camera after Image memory (Only visible when enabled by the installer) Door calls The slider sets the duration for which the camera Internal calls...
  • Page 22 The settings "Brightness", "Contrast" and "Colour" always only apply to the connection between the Colour active surface-mounted video home station 7 and colour camera. This means that if there are multiple home stations or cameras, the parameters need to be adjusted separately for each camera in every home station.

  • Page 23: Setting Image Memory

    Functions Image memory settings (Only visible when enabled by the installer) exit Settings Functions Configure image memory Data protection law Activate automatic image capture Cameras upon door call Please note that, in the EU, surveillance of publicly Number of images upon door opening Image memory accessible spaces using opto-electronic technology Door calls...
  • Page 24 Functions Image memory settings Select image memory and adjust the following Archiving behaviour parameters: Manually captured images are saved in the home • Enable automatic image capture upon door station’s internal image memory. call With automatic image capture upon door call •...

  • Page 25: Renaming Door Calls

    Functions Rename door call 1. Select a door call and tap the name field. The Settings input screen for renaming appears. Functions Door call 1 Name Cameras 2. Change the name in the input screen and tap Door call 1 Image memory to confirm (e.g.: Door call 1 ->...

  • Page 26: Renaming Internal Calls

    Functions Rename internal call (Only visible when assigned by the installer) exit Settings Internal calls are either: Functions Outgoing internal calls • outgoing internal calls (from the surface-mounted Cameras Internal calls 1 video home station 7 to another home station) or Image memory Incoming internal calls •...

  • Page 27: Renaming Floor Calls

    Functions Rename floor call exit Settings (Only visible when assigned by the installer) Functions Wired floor call Name Cameras Rename floor call Wired floor call 1. Select floor call and tap the name field. The input Image memory screen for renaming appears. Door calls melody_03.wav 2.

  • Page 28: Renaming Switching Actions

    Functions Rename switching action (Only visible when assigned by the installer) back Settings Rename switching action Functions Switching action 1 Name Cameras 1. Select a switching action and tap the name field. Switching action 1 Image memory The input screen for renaming appears. Door calls 2.

  • Page 29: Managing Favourites

    Functions Manage favourites You can set two favourites to be included in the back Settings display’s menu bar. The following illustrates the Functions Light available options using favourite 1 as an example. Cameras Display favourit Favourite 2 is handled accordingly. Image memory Switching actions / light 1.

  • Page 30: Device

    Device Device Activate 30 s screen lock You can lock screen operation (including the exit Settings operating buttons) for 30 seconds in order to clean it. Device Activate 30 s screen lock Press the "Activate 30 s screen lock" switch: A lock Ringtone melodies and button tones screen appears and the countdown triggers Device parameters...

  • Page 31: Setting Ring Tone Melodies And Button Tones

    Device Setting ring tone melodies and button tones exit Settings Ringtone melodies Device Ring tone melodies melody_01.wav Activate 30 s screen lock Ten ring tone melodies are included. You can play melody_02.wav Ringtone melodies and button tones them back and select them. melody_03.wav Device parameters melody_04.wav...

  • Page 32: Setting Device Parameters

    Device Setting device parameters back Settings Screen settings Gerät Screen settings Screen brightness Activate 30 s screen lock The slider adjusts brightness. Ringtone melodies and button tones Factory default: max. brightness Device parameters PIN protection Update Information System version Key vibration back Settings This switch enables/disables the vibration feedback if...
  • Page 33 Device Language back Settings Set the display and menu language here. Device Select language Select a language and confirm your choice. The Deutsch Activate 30 s screen lock language changes automatically. English Ringtone melodies and button tones Espagnol Device parameters Francais PIN protection Italiano...

  • Page 34: Pin Protection

    Device PIN protection exit Settings (Only visible when enabled by the installer) Device PIN protection 1. Enable PIN protection using the switch. Activate 30 s screen lock Activate PIN protection 2. Enter PIN (max. 6 digits) in the input screen and Ringtone melodies and button tones press to confirm.

  • Page 35: Performing Update

    Device Perform update exit Settings (Only visible when enabled by the installer) Device Refer to the notes on microSD cards on page 37. Activate 30 s screen lock Tap "Update" and follow the instructions in the Ringtone melodies and button tones wizard.

  • Page 36: Information

    Review the legal information here. Device parameters Gira Kundenservice Update Contact details Street and number Informationen Here you can find the contact details for the Gira Dahlienstraße 12 System version hotline or the specialised company responsible. Post code Licence agreement 42477...

  • Page 37: Microsd Card

    microSD card microSD card Ring tone melodies General notes Ring tone melodies divide into those for home You will need a microSD card formatted to the stations with a bus power supply and those with an FAT32 file system architecture with a storage additional power supply.
  • Page 38 microSD card Ring tone melody formats Parameters for WAVE files Note the following parameters when using new WAVE files: Sampling rate: 16 kHz Resolution: 16 bits Soundtrack: Mono Parameters for mp3 files The current mp3 formats are supported.

  • Page 39: Inserting A Microsd Card

    microSD card Inserting microSD card Insert the microSD card as shown in the wizard. Prepare SD card Make sure that you feel the microSD card engaging cancle next Follow the instructions in the set order. 1. Format the SD card (format: FAT32) and create the in the SD card slot.

  • Page 40: Care Instructions

    Notes on care Notes on care Cleaning Renovations Wipe the surface-mounted video home station 7 Before starting renovation work (e.g. painting or with a damp cloth (no cleaning agent containing wallpapering), remove the surface-mounted video solvents) or with an antistatic cloth.

  • Page 41: What To Do If

    Ringtone volume change This message is displayed when a door call that was Settings not accepted has automatically stored images in the GIRA Door communication access image memory. Pressing opens the image memory. is permanently lit green with the screen...
  • Page 43 ?... What to do if...
  • Page 44 Gira Giersiepen GmbH & Co KG Electrical installation systems P.O. Box 1220 42461 Radevormwald Germany Phone: +49 2195 602 - 0 Fax: +49 2195 602 - 191 info@gira.com www.gira.de...
