Gira 511 00 Installation Instructions

en
Installation
instructions
System 106 flush-mounted
housing1-gang to 5-gang
5511 00
5512 00
5513 00
5514 00
5515 00
5518 00
For your safety
Electrical devices may only be
installed and connected by
a qualified electrician.
These instructions are part of the product and
mus tremain with the end customer. Read the
instructions before use and observe the notes

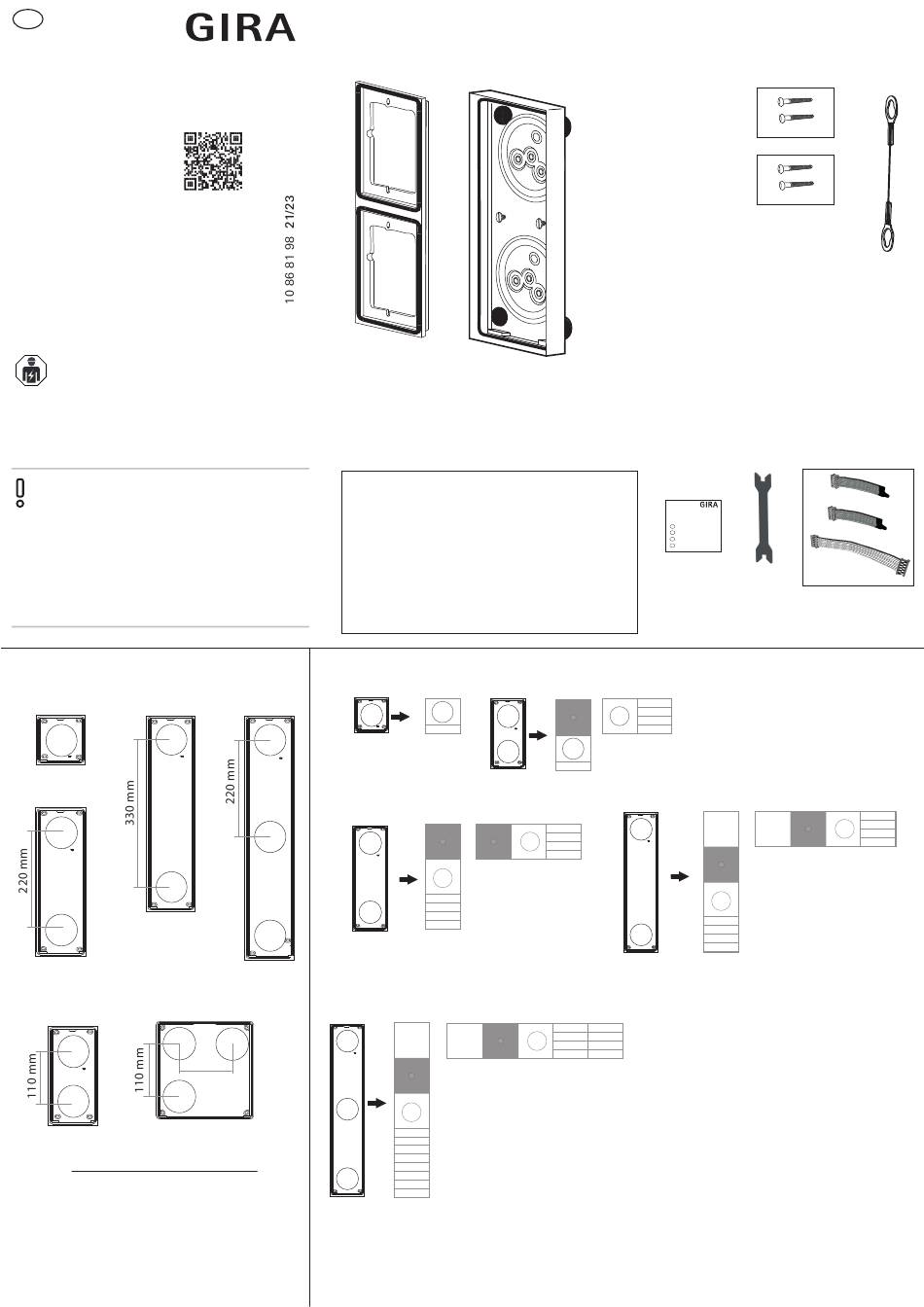

Mounting example: surface-mounted housing, 2-gang.
Flush-mounting in a front module
The instructions only describe the flush mounting
of the housing in a front module. The front module
must be mounted in balance on site before the
housing is mounted. Later alignment is not possible.
For mounting on a metal front, observe the
instructions enclosed with the installation box
for the metal front.
Dimensions
1 x 1 1 x 4
b
a
1 x 3
1 x 2
110 mm
a
1 x 1 = 106,5 x 106,5 mm
1 x 2 = 106,5 x 213,0 mm
2 x 2 = 213,0 x 213,0 mm
1 x 3 = 106,5 x 319,5 mm
1 x 4 = 106,5 x 426,0 mm
1 x 5 = 106,5 x 532,5 mm
Scope of supply
01
02
03
04
05
06
07
Mounting examples
1 x 5
2 x 2
b
01 0 2
1 x Function carrier
1 x Housing
2 x Schrauben (ø 6 mm)
1 x
Screws
1 x System cables and
terminating resistors
(from 2-gang housing)
1 x
Bit holder and bit
1 x
Montageanleitung
22 22
0 3
07 06 05
de Gehäuse1 bis 5fach
nl Ghäuse 1 bis 5fach
fr Gehäuse 1 bis 5fach
en Gehäuse 1 bis 5fach
22 22
04
