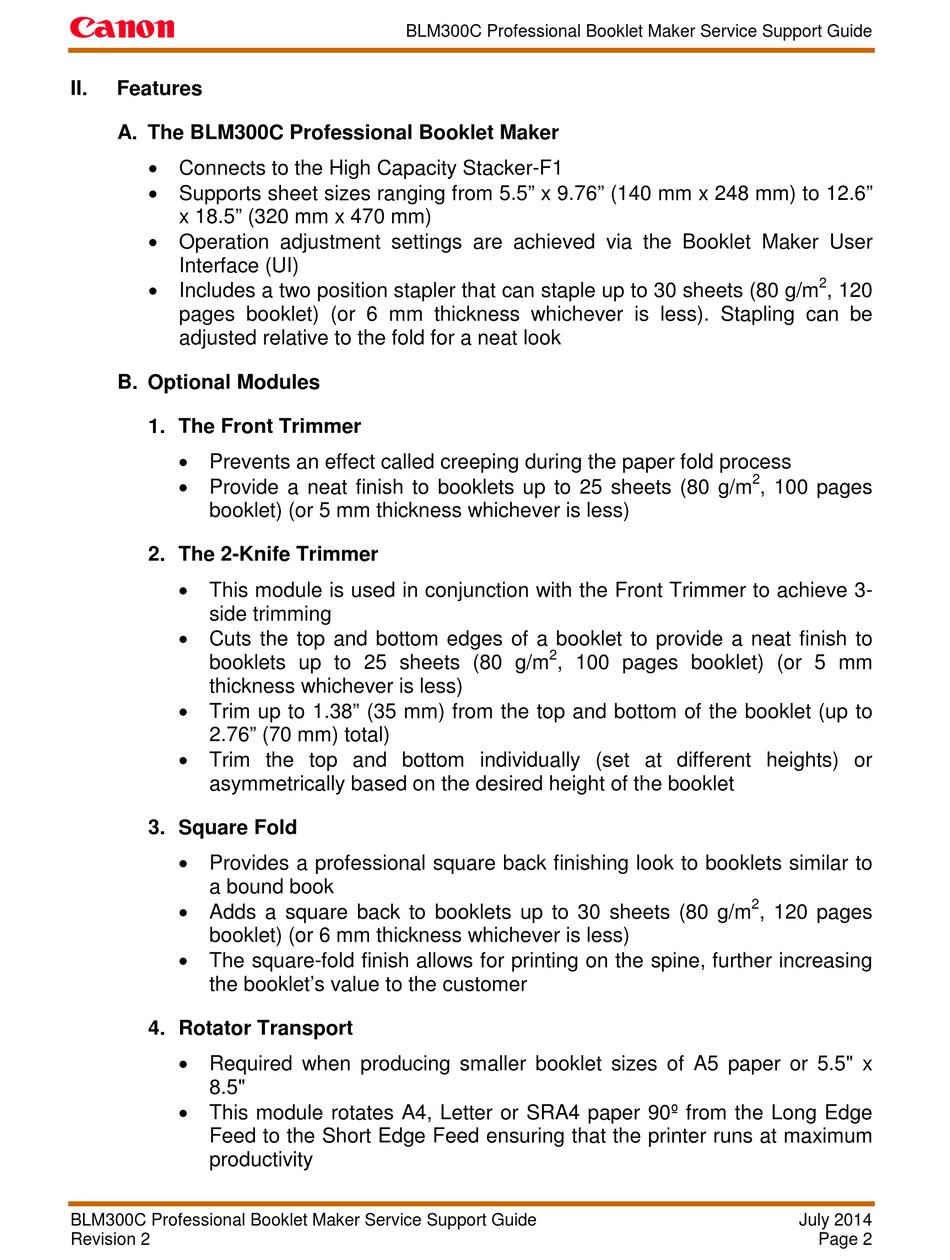

II.

Features

A. The BLM300C Professional Booklet Maker
 Connects to the High Capacity Stacker-F1
 Supports sheet sizes ranging from 5.5" x 9.76" (140 mm x 248 mm) to 12.6"
x 18.5" (320 mm x 470 mm)
 Operation adjustment settings are achieved via the Booklet Maker User
Interface (UI)
 Includes a two position stapler that can staple up to 30 sheets (80 g/m
pages booklet) (or 6 mm thickness whichever is less). Stapling can be
adjusted relative to the fold for a neat look
B. Optional Modules

1. The Front Trimmer

 Prevents an effect called creeping during the paper fold process
 Provide a neat finish to booklets up to 25 sheets (80 g/m
booklet) (or 5 mm thickness whichever is less)

2. The 2-Knife Trimmer

 This module is used in conjunction with the Front Trimmer to achieve 3-
side trimming
 Cuts the top and bottom edges of a booklet to provide a neat finish to
booklets up to 25 sheets (80 g/m
thickness whichever is less)
 Trim up to 1.38" (35 mm) from the top and bottom of the booklet (up to
2.76" (70 mm) total)
 Trim the top and bottom individually (set at different heights) or
asymmetrically based on the desired height of the booklet

3. Square Fold

 Provides a professional square back finishing look to booklets similar to
a bound book
 Adds a square back to booklets up to 30 sheets (80 g/m
booklet) (or 6 mm thickness whichever is less)
 The square-fold finish allows for printing on the spine, further increasing
the booklet's value to the customer

4. Rotator Transport

 Required when producing smaller booklet sizes of A5 paper or 5.5" x
8.5"
 This module rotates A4, Letter or SRA4 paper 90º from the Long Edge
Feed to the Short Edge Feed ensuring that the printer runs at maximum
productivity
BLM300C Professional Booklet Maker Service Support Guide
Revision 2
BLM300C Professional Booklet Maker Service Support Guide
2
, 100 pages booklet) (or 5 mm
2
, 120
2
, 100 pages
2
, 120 pages
July 2014
Page 2
