10. Install the black liner back to the camera.
11. Align the bubble with the camera and tighten the screws to fix the bubble.

2.3 Image and Focus Adjusting

Steps:
1. 3-axis adjustment.
1). View the camera image using the monitor.
2). Rotate the panning table to adjust the panning position of the camera.
3). Push the dome drive forward or backward to adjust the tilting position of
the camera.

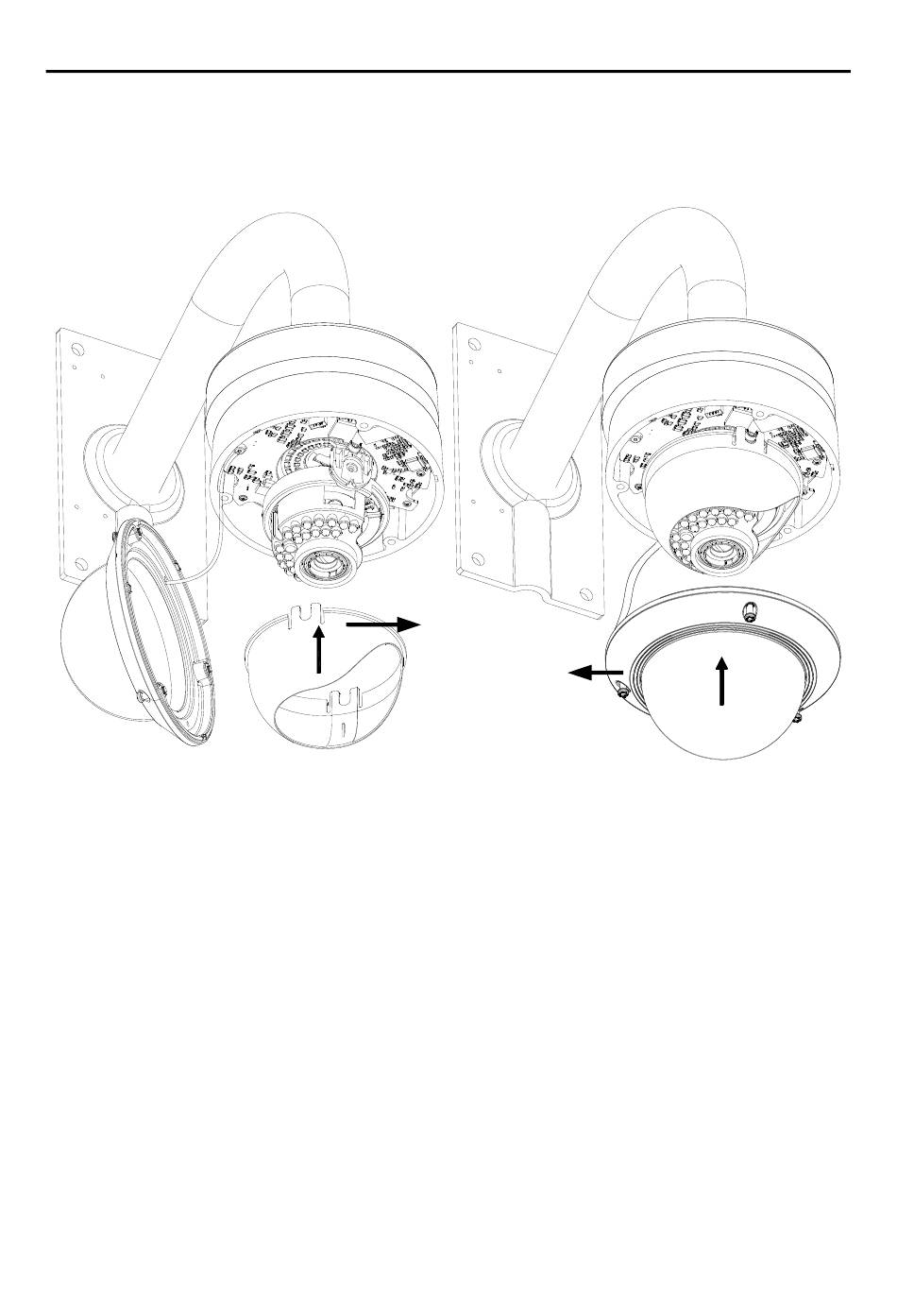

Figure 2-14 Secure Black Liner and Bubble
Black Liner
Lower Dome
