9. Install the inner black liner back to the camera.
10. Align the lower dome with the camera.
11. Tighten the screws to secure the lower dome with the camera as shown in
Figure 2-10.

2.2.3 Wall Mounting

For the wall mounting, you have to purchase a wall mount.
Steps:
1. Disassemble the camera. Refer to the section 2.1.
2. Install the wall mount and mounting adapter as shown in Figure 2-11.
3. Align the screw holes of the mounting base with the corresponding screw
holes of the mounting adapter.

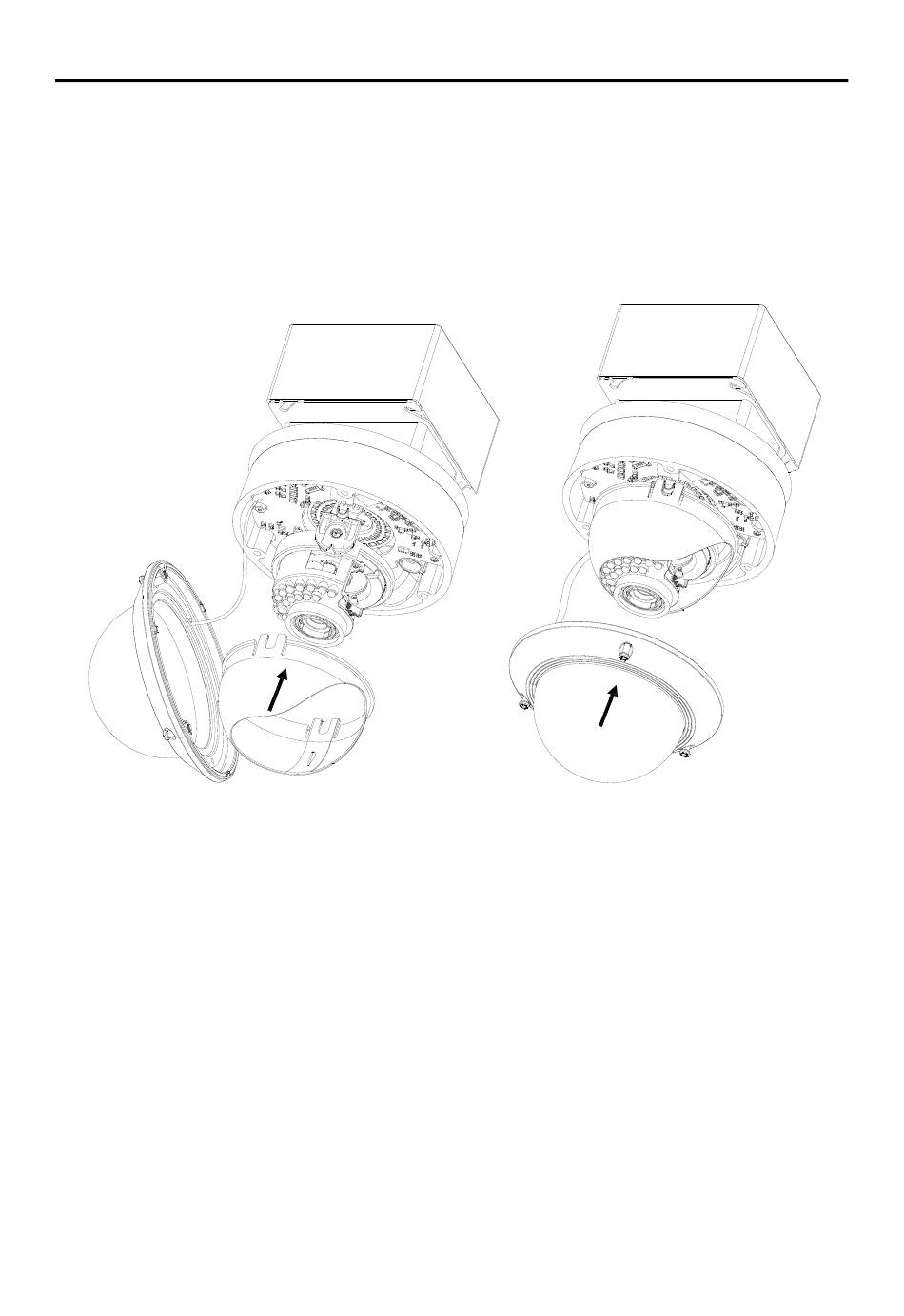

Figure 2-10 Secure Lower Dome
