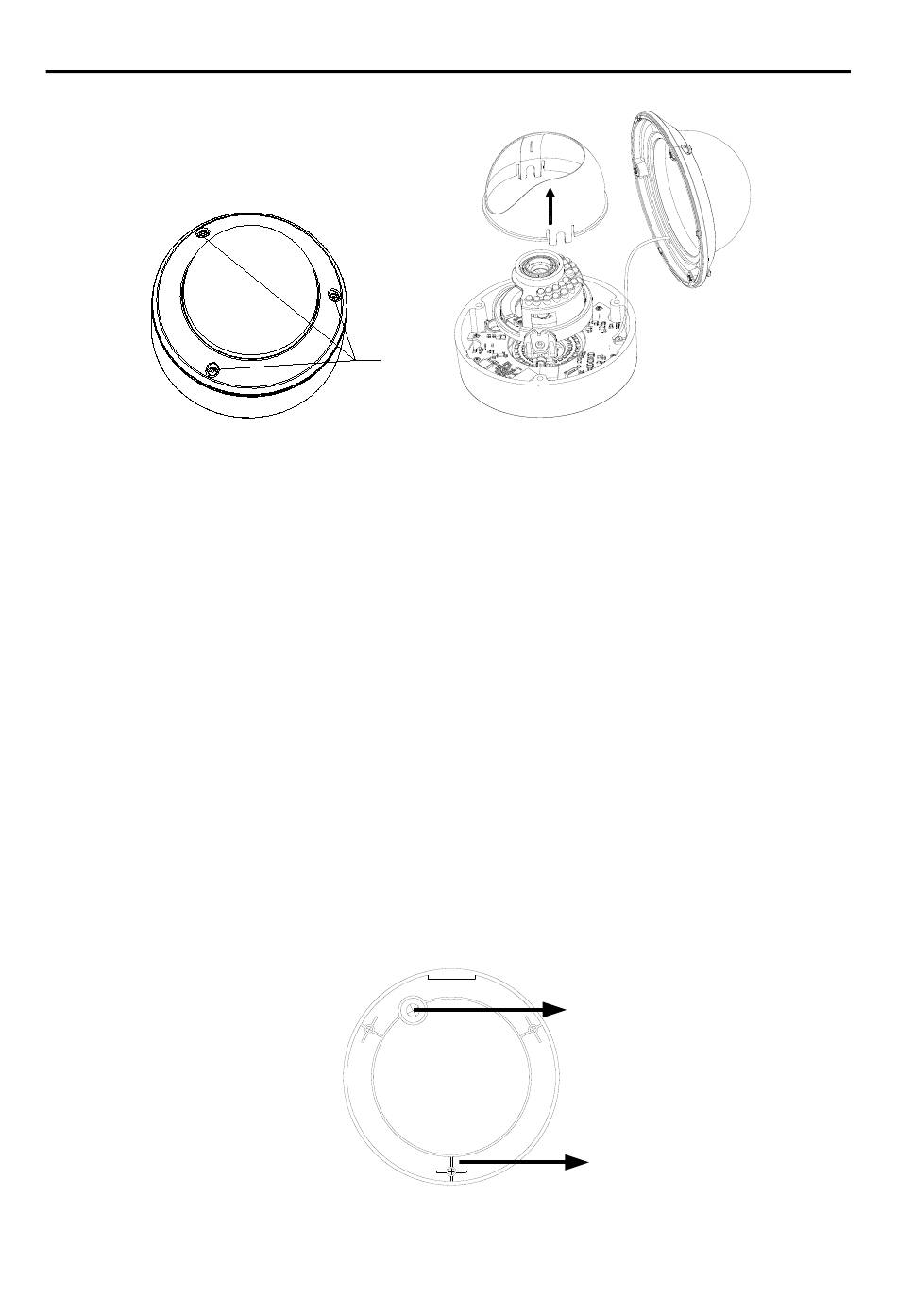

Figure 2-1 Open the Bubble and Remove the Black Liner

2.2 Mounting

2.2.1 Ceiling mounting

Steps:
1. Disassemble the camera. Refer to the section 2.1.
2. Attach the drill template (supplied) to the place where you want to fix the
camera.
3. Drill three screw holes in the ceiling according to the drill template as shown in
Figure 2-2.
Black Liner
Screws
Drill Template
Figure 2-2 The Drill Template
12
Cable Hole
Screw Hole
Bubble
