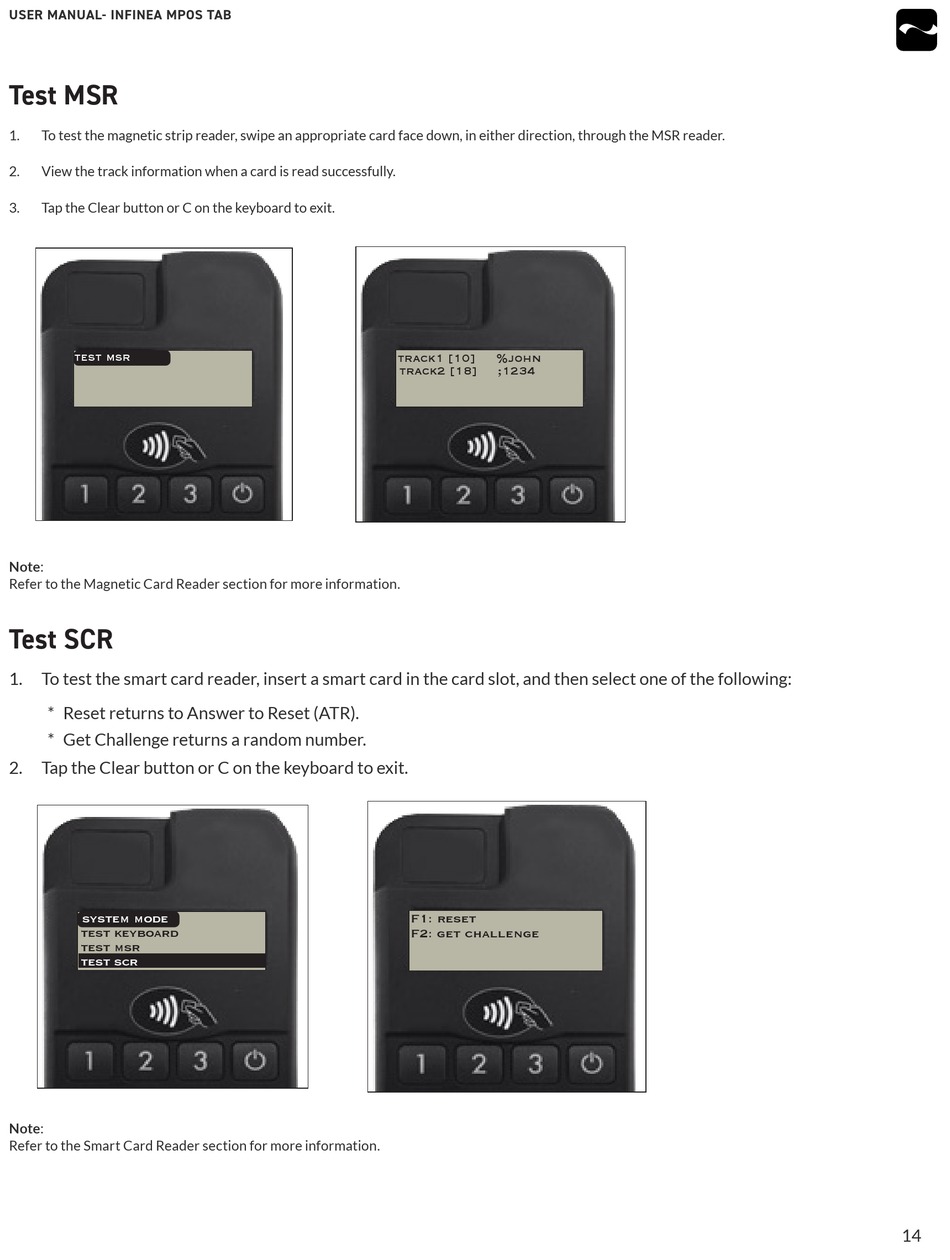

USER MANUAL- INFINEA MPOS TAB
Test MSR
1.
To test the magnetic strip reader, swipe an appropriate card face down, in either direction, through the MSR reader.
2.
View the track information when a card is read successfully.
3.
Tap the Clear button or C on the keyboard to exit.
test msr
Note:
Refer to the Magnetic Card Reader section for more information.
Test SCR
1.
To test the smart card reader, insert a smart card in the card slot, and then select one of the following:
* Reset returns to Answer to Reset (ATR).
* Get Challenge returns a random number.
2.
Tap the Clear button or C on the keyboard to exit.
system mode
test keyboard
test msr
test scr
Note:
Refer to the Smart Card Reader section for more information.
track1 [10]
%john
track2 [18]
;1234
F1: reset
F2: get challenge
14
