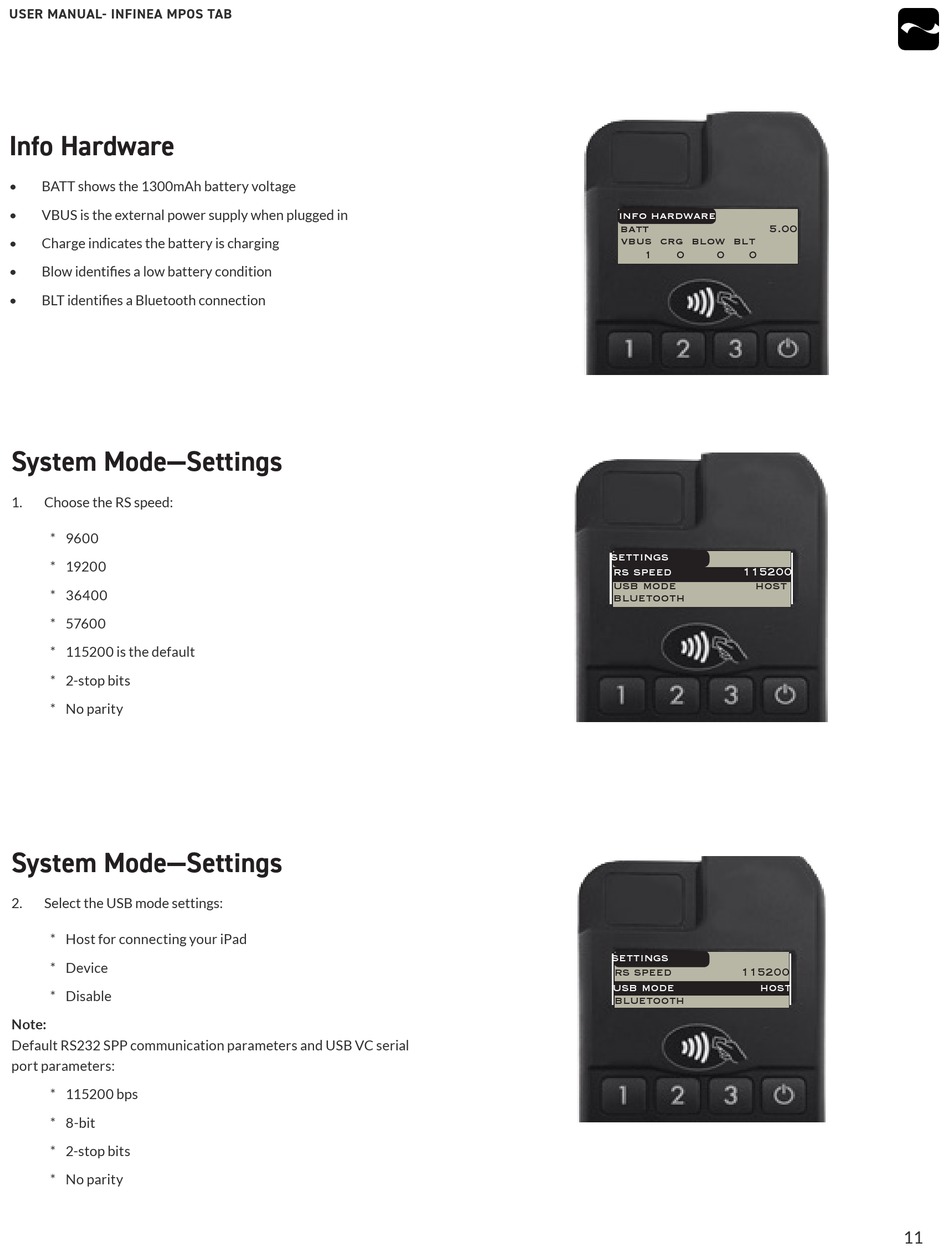

USER MANUAL- INFINEA MPOS TAB
Info Hardware
• BATT shows the 1300mAh battery voltage
• VBUS is the external power supply when plugged in
• Charge indicates the battery is charging
• Blow identifies a low battery condition
• BLT identifies a Bluetooth connection
System Mode—Settings
1. Choose the RS speed:
* 9600
* 19200
* 36400
* 57600
* 115200 is the default
* 2-stop bits
* No parity
System Mode—Settings
2. Select the USB mode settings:
* Host for connecting your iPad
* Device
* Disable
Note:
Default RS232 SPP communication parameters and USB VC serial
port parameters:
* 115200 bps
* 8-bit
* 2-stop bits
* No parity
info hardware
batt 5.00
vbus crg blow blt
1 0 0 0
settings
rs speed 115200
usb mode host
bluetooth
settings
rs speed 115200
usb mode host
bluetooth
