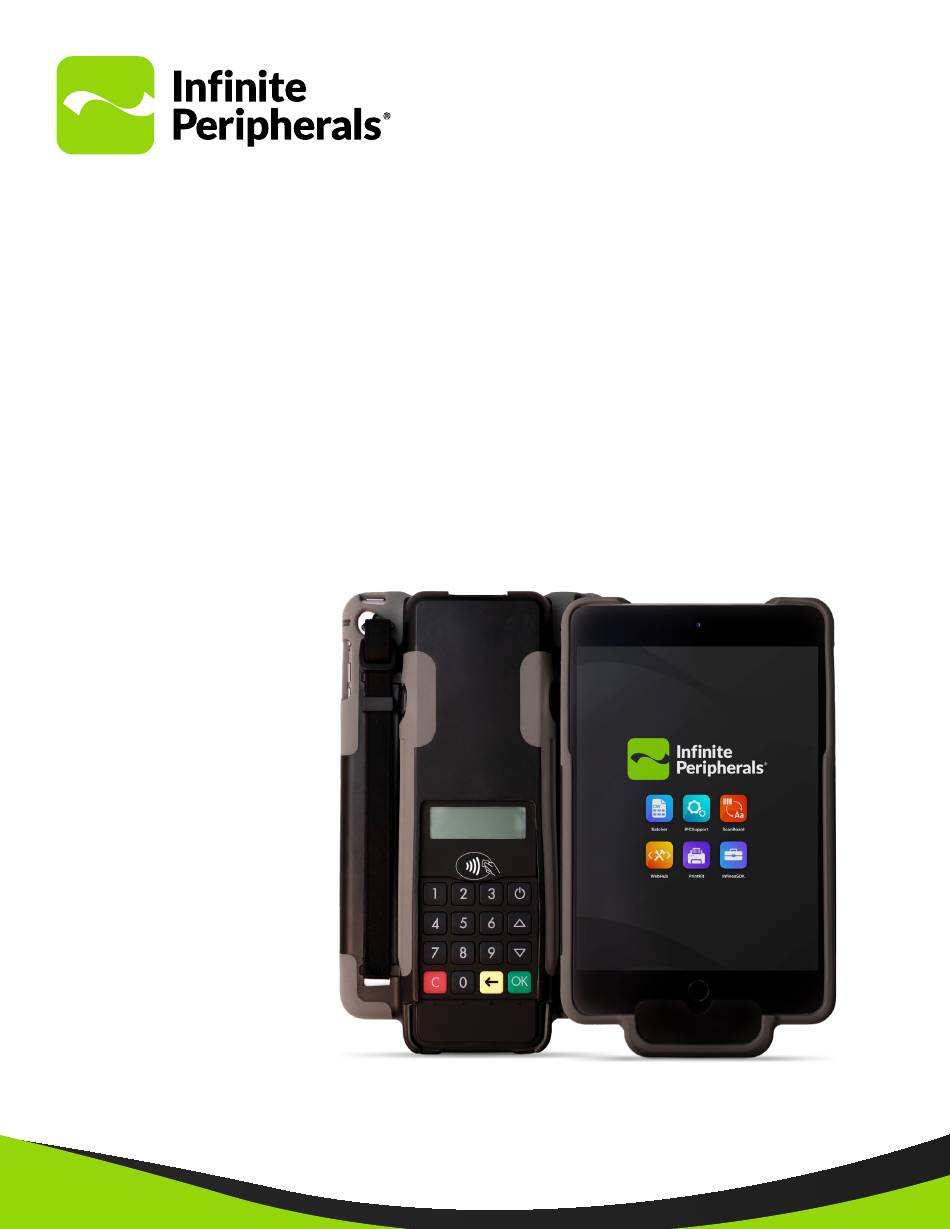

- Page 1 USER MANUAL Infinea mPOS Tab ® ® For iPad mini™ 4...
- Page 2 Please note that the use of this accessory with an iPad mini 4 may affect wireless performance. Compatible Devices iOS Compatibility iPad mini 4 Trademarks Infinite Peripherals, Mobilize Your Enterprise, Linea Pro, Infinea, Infinea Tab, and Infinea Omni are trademarks of Infinite Peripherals, Inc. All other trademarks are the property of their respective owners.
-
Page 3: Table Of Contents
Table of Contents NFC LED Status Indicators Overview Scan Barcodes Technical Data Accept NFC Payments Before Using Your Infinea mPOS Tab Read Smart Cards Getting Started Read Magnetic Stripe Cards Product Description Servicing the Infinea mPOS Turn on the Infinea mPOS Tab... -
Page 4: Overview
Overview The Infinea mPOS Tab is a hand-held PIN pad with an integrated smart card reader and magnetic stripe card reader, offering advanced security and smart card processing capabilities. Infinea mPOS Tab supports both symmetric encryption algorithms (DES, 3DES, and AES) and asymmetric encryption (RSA). - Page 5 USER MANUAL- INFINEA MPOS TAB Connectivity Connectivity NFC Payment Applications/Contactless Card Reader Apple Lightning™ connector AMEX ExpressPay MagStripe and EMV Discover ZIP and D-PAS Barcode Scanner MasterCard PayPass Magstripe and M/Chip VISA PayWave MSD and qVSDC Newland 2D high-speed imager and supports all major 1D/2D...
-
Page 6: Before Using Your Infinea Mpos Tab
USER MANUAL- INFINEA MPOS TAB Before Using Your Infinea mPOS Tab • Before using your Infinea mPOS Tab, remove the unit and any included accessories from the shipping carton and verify contents against your packing list. • Retain all packing materials, invoice, and bill of lading. These may be required to return the unit for servicing later, or to process a claim with the carrier. -
Page 7: Product Description
USER MANUAL- INFINEA MPOS TAB Product Description The back panel of the Infinea mPOS Tab: The front panel of the Infinea mPOS Tab: Barcode Scanner Opening for iPad Camera iOS Volume Scan Scan Button Access Button Button Label Keypad 9-Pin Lightning... -
Page 8: Turn On The Infinea Mpos Tab
To turn on the Infinea mPOS, tap the Power button on the top, right corner of the keypad. The name and version of the Secure Boot Loader and firmware appear. Connect Your iPad mini To connect your iPad mini 4 with the Infinea mPOS Tab, insert the iPad into the grooves of the Infinea mPOS Tab. Slide the iPad onto the Lightning connector. -
Page 9: Battery Charging
USER MANUAL- INFINEA MPOS TAB Battery Charging You can charge the Infinea mPOS Tab with a micro USB adapter and USB cable or by using a charging station. The time to fully charge a depleted unit is approximately 3 hours. -
Page 10: Operational Modes
• Application Download Note: Service and Application Download modes should only be accessed by Infinite Peripherals. Selecting specific keys or options in these modes may render the unit unusable and require reactivation of the Infinea mPOS. System Mode Navigation Turn on the Infinea mPOS, and then tap System Mode on the keyboard. The menu options available are: •... - Page 11 USER MANUAL- INFINEA MPOS TAB Info Hardware • BATT shows the 1300mAh battery voltage • VBUS is the external power supply when plugged in info hardware batt 5.00 vbus crg blow blt • Charge indicates the battery is charging •...
- Page 12 USER MANUAL- INFINEA MPOS TAB Bluetooth Mode Select the Bluetooth mode: * Enabled * Disabled Enter the Mac address. The Bluetooth name and password appears mode: enabled addr: 68AAD201C831 name: pp1115000104 pass: 0000 Select the PAIR - Hidden or Discoverable.
- Page 13 USER MANUAL- INFINEA MPOS TAB 8. Auto Off - Select one of the following: * Disabled * 1min, 5min, 10min,15min, 30min, 45min * 60min - default, 120min, 180min, 240min 9. HotSync - Select Disabled or Enabled. Note: settings auto off...
- Page 14 USER MANUAL- INFINEA MPOS TAB Test MSR To test the magnetic strip reader, swipe an appropriate card face down, in either direction, through the MSR reader. View the track information when a card is read successfully. Tap the Clear button or C on the keyboard to exit.
-
Page 15: Pair With A Bluetooth Compatible Device
USER MANUAL- INFINEA MPOS TAB Test Font0 and Font1 • To test the fonts loaded on the Infinea mPOS, tap the Clear button to exit. test font0 test font1 next: [a] next: [a] exit: [c] exit: [c] Pair with a Bluetooth Compatible Device Once the unit is charged, tap the Power button to turn it on. -
Page 16: Nfc Led Status Indicators
USER MANUAL- INFINEA MPOS TAB NFC LED Status Indicators Status/ Description Visual Indicator Event Not ready Reader is not turned on or power is not available Idle First indicator blinks every five seconds. Reader powers on, but not ready to read a card. -
Page 17: Accept Nfc Payments
USER MANUAL- INFINEA MPOS TAB Accept NFC Payments The Infinea mPOS built-in tag/card reader allows you to accept near- field communication (NFC) payments. Place a NFC tag/card over the transmitter/receiver NFC label on the front of the unit. Tap the reading NFC card button on the application. Data is sent from the unit to the iOS device. -
Page 18: Read Magnetic Stripe Cards
• Do not allow the battery to fully discharge • Do not attempt to remove the battery from the unit Note: If the battery is fully depleted and in Tamper Detect mode, contact your Infinite Peripherals account representative for reactivation. -
Page 19: Troubleshooting
Troubleshooting The following troubleshooting guidelines assist you in the successful installation and configuration of your Infinea mPOS Tab. If you have issues, verify your unit is turned on and sufficiently charged. After power and battery charge are both confirmed, review the appropriate sections for troubleshooting options. -
Page 20: Develop Infinea Mpos Apps
Warranty Infinite Peripherals does not warrant, and is not responsible for, any damage to the Infinea mPOS Tab (“Product”) or the assembled iOS device as a result of liquid or solid particle intrusion into the Product, or damaged caused by dropping the Product with the assembled iOS device. If a material or workmanship defect arises with regard to any Infinite Peripherals product, and a valid claim is received within the Warranty Period, Infinite Peripherals (at our sole discretion) will repair the Product using new or refurbished parts, or replace the Product with a new or refurbished Product. -
Page 21: Disclaimer
Infinite Peripherals, Inc does not assume any product liability arising out of or in connection with the application or use of any product or application described herein. -
Page 22: Federal Communications Commissions
USER MANUAL- INFINEA MPOS TAB...
