H84.0.02.6C-01
As of version 1. 0

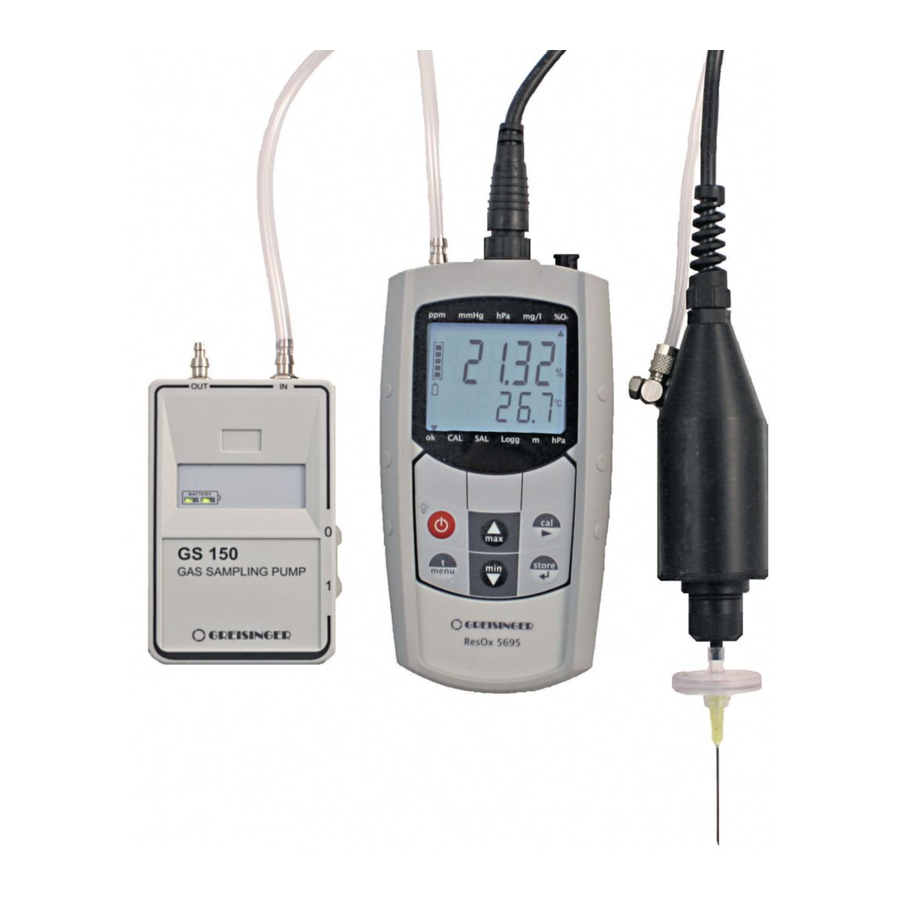

Water-Proof oxygen meter for oxygen in gases
with Integrated temperature and pressure
Please carefully read these instructions before
use!
Please consider the safety instructions!
Please keep for future reference!
GHM GROUP - Greisinger
GHM Messtechnik GmbH | Hans-Sachs-Str. 26 | 93128 Regenstauf | GERMANY
Tel.: +49 9402 9383-0 |
measuring and data logger
info@greisinger.de
| www.greisinger.de
Operating manual
ResOx 5695
WEEE-Reg.-Nr. DE 93889386
Advertisement
Table of Contents
Related Manuals for GREISINGER ResOx 5695
Summary of Contents for GREISINGER ResOx 5695
- Page 1 Please carefully read these instructions before use! Please consider the safety instructions! WEEE-Reg.-Nr. DE 93889386 Please keep for future reference! GHM GROUP - Greisinger GHM Messtechnik GmbH | Hans-Sachs-Str. 26 | 93128 Regenstauf | GERMANY Tel.: +49 9402 9383-0 | info@greisinger.de | www.greisinger.de...
-
Page 2: Table Of Contents
H84.0.15.6C-01 Operating manual ResOx 5695 Page 2 of 22 _____________________________________________________ _____________________________________________________________________________ Contents SAFETY ..................................3 ..............................3 ENERAL NOTE ............................... 3 NTENDED USE ..............................3 UALIFIED STAFF ..........................3 AFETY SIGNS AND SYMBOLS ........................4 EASONABLY FORESEEABLE MISUSE .............................. 4 AFETY GUIDELINES PRODUCT DESCRIPTION ............................ -
Page 3: Safety
H84.0.15.6C-01 Operating manual ResOx 5695 Page 3 of 22 _____________________________________________________ _____________________________________________________________________________ 1 Safety 1.1 General note Read this document attentively and make yourself familiar to the operation of the device before you use it. Keep this document in a ready-to-hand way in order to be able to look up in the case of doubt. -
Page 4: Reasonably Foreseeable Misuse
Product description 2.1 Scope of supply The scope of supply includes: Handheld instrument ResOx 5695 with 2 AAA-Batteries (oxygen sensor usually is ordered separately. For choice please refer to chapter 6 The oxygen sensor) Operating manual ... -
Page 5: Operation And Maintenance Advice
H84.0.15.6C-01 Operating manual ResOx 5695 Page 5 of 22 _____________________________________________________ _____________________________________________________________________________ 2.2 Operation and maintenance advice Battery operation: If „BAT“ is shown in the lower display the battery has been used up and needs to be replaced. However, the device will operate correctly for a certain time If „BAT“... -
Page 6: Pushbuttons
H84.0.15.6C-01 Operating manual ResOx 5695 Page 6 of 22 _____________________________________________________ _____________________________________________________________________________ 4.2 Pushbuttons On / off key, backlight “press shortly“: Activate backlight or switch on instrument ”press longer“: Switch off instrument Set/Menü ”press for 2 sec“ (menu): Invoke configuration menu ”press shortly“:... -
Page 7: Pop-Up Clip
H84.0.15.6C-01 Operating manual ResOx 5695 Page 7 of 22 _____________________________________________________ _____________________________________________________________________________ 4.4 Pop-up clip Handling • Pull at label “open” in order to swing open the pop-up clip. • Pull at label “open” again to swing open the pop-up clip further. -
Page 8: Configuration
H84.0.15.6C-01 Operating manual ResOx 5695 Page 8 of 22 _____________________________________________________ _____________________________________________________________________________ Configuration Some menu points depend on current device settings (e.g. some points are locked if logger memory contains data sets). To change device’s settings, press for 2 seconds. This will activate the configuration menu (main display “SET“). - Page 9 H84.0.15.6C-01 Operating manual ResOx 5695 Page 9 of 22 _____________________________________________________ _____________________________________________________________________________ Base address for serial interface communication (ex works 0 1, 1 1,2 1, … 9 1 setting 01) [ONC Analog output is corresponding to concentration in % DA.,N Analog output is corresponding to partial pressure in hPa or P.
-
Page 10: The Oxygen Sensor
H84.0.15.6C-01 Operating manual ResOx 5695 Page 10 of 22 _____________________________________________________ _____________________________________________________________________________ The oxygen sensor 6.1 General notes about the oxygen sensor 6.1.1 Life time At the end of the life time, the signal of the sensor is dropping rapidly. The sensor evaluation in % therefore can only be taken as a relative measure. -
Page 11: Sensor Elements
H84.0.15.6C-01 Operating manual ResOx 5695 Page 11 of 22 _____________________________________________________ _____________________________________________________________________________ 6.2 Sensor elements Unsuitable for underwater-diving-application e.g. Rebreather. 6.2.1 GOEL 370 acidic electrolyte Integrated in GGO 570, GGA 570, GOO 570. Recommended application areas 0...35 Vol. % O (above, the measuring accuracy is reduced). -
Page 12: Exchanging The Sensor Element
The sensor housings are consisting of two halves (1) and (4) and can be opened by screwing up: GGO/GGA housing GOO housing GOG / ResOx 5695 housing Changeable part is the sensor element (3). Important when reassembling: - First screw in sensor (3) in part (1). Do not forget O-Ring (2) Unscrew the sensor carefully e.g. -
Page 13: Calibration Of The Oxygen Sensor
H84.0.15.6C-01 Operating manual ResOx 5695 Page 13 of 22 _____________________________________________________ _____________________________________________________________________________ Calibration of the oxygen sensor In order to compensate for ageing of the sensor, the sensor has to be calibrated at regular intervals. The device is equipped with an easy-to-use calibration function. -
Page 14: Evaluation Of Sensor State "Ele
H84.0.15.6C-01 Operating manual ResOx 5695 Page 14 of 22 _____________________________________________________ _____________________________________________________________________________ 9.3 Evaluation of sensor state “ELE[“ shortly once, display shows ”xx% ELE[“ for a short time. Watch sensor state: press This shows the sensor state resulting of the last successful calibration carried out. -
Page 15: Automatic Recording With Selectable Cycle Time "Fvnc
H84.0.15.6C-01 Operating manual ResOx 5695 Page 15 of 22 _____________________________________________________ _____________________________________________________________________________ 10.2.3 Delete manual recording If there are data saved, they could be deleted by ressing the button store: Press 2 seconds: Call ”delete-menu“ Change the recording: Clear nothing (cancel menu) -
Page 16: Adjustment Of Temperature Input
H84.0.15.6C-01 Operating manual ResOx 5695 Page 16 of 22 _____________________________________________________ _____________________________________________________________________________ 11 Adjustment of temperature input The temperature input can be adjusted with offset and scale. A reasonable adjustment presumes reliable references (e.g. ice water, controlled precision water bath, etc.). If the inputs are adjusted (i.e. offset and scale are different from default settings) the device will shortly display ”(ORR“... -
Page 17: Alarm "Al
H84.0.15.6C-01 Operating manual ResOx 5695 Page 17 of 22 _____________________________________________________ _____________________________________________________________________________ 13 Alarm “AL.“ There are 3 possible settings: off “AL.OFF“, on with buzzer “AL. ON“, on without buzzer “AL. NO.SO“. Alarm is given in the following cases if alarm active (ON or NO.SO): Lower alarm boundary (A 1.LO) under-run... -
Page 18: Analog Output
H84.0.15.6C-01 Operating manual ResOx 5695 Page 18 of 22 _____________________________________________________ _____________________________________________________________________________ The device has 4 channels: - Oxygen concentration in % Vol. O - Oxygen partial pressure in hPa or mmHg. - Temperature value at the time of recording in °C or °F. -
Page 19: Inspection Of The Accuracy/ Adjustments Aervices
H84.0.15.6C-01 Operating manual ResOx 5695 Page 19 of 22 _____________________________________________________ _____________________________________________________________________________ 16 Inspection of the accuracy/ adjustments aervices The instrument can be sent to the manufacturer for adjustment and function test. Only the manufacturer can check all systems on correct them if necessary. -
Page 20: Error And System Messages
H84.0.15.6C-01 Operating manual ResOx 5695 Page 20 of 22 _____________________________________________________ _____________________________________________________________________________ 18 Error and System Messages Display Meaning Remedy low battery voltage, device will continue to work replace battery for a short time If mains operation: wrong voltage replace power supply, if fault continues to... -
Page 21: Reshipment And Disposal
H84.0.15.6C-01 Operating manual ResOx 5695 Page 21 of 22 _____________________________________________________ _____________________________________________________________________________ 19 Reshipment and disposal 19.1 Reshipment All devices returned to the manufacturer have to be free of any residual of measuring media and other hazardous substances. Measuring residuals at housing or sensor may be a risk for persons or environment Use an adequate transport package for reshipment, especially for fully functional de-vices. - Page 22 H84.0.15.6C-01 Operating manual ResOx 5695 Page 22 of 22 _____________________________________________________ _____________________________________________________________________________ Housing Non-breakable ABS housing, incl. silicone protective cover Protection class IP65 / IP67 Dimensions Without pressure connection:160 * 86 * 37 incl. silicone protective cover, L*W*H [mm] pressure connection: length 11mm Weight approx.
