UPRtek MK350D User Manual And Warranty page 8

2.2 Taking a Measurement
- 11 -

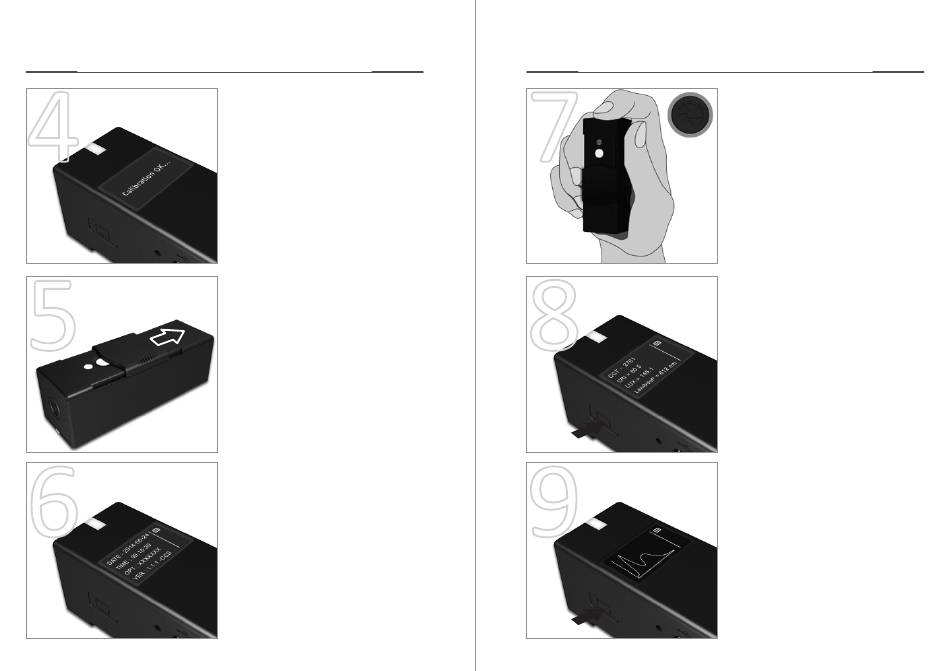

When Dark Calibration is
complete, the screen will
indicate.
Slide the Sensor Cover so that
the Sensor is visible again.
The first screen will display
the Date & Time, Optic
Number and Version Number.
The battery level indicator is
on the right.
2.2 Taking a Measurement
- 12 -
Hold the MK350D as shown
with the Sensor facing toward
the front, in the direction of a
light source and press the
"Measure" button at the top
of MK350D.
After which it will respond
with a beep to indicate
completion.
The screen will display CCT,
CRI, LUX and LambdaP.
Note : you may get a message that the
Micro SD Card is not installed –
disregard this message for now.
Press the On/Off button once
to go to the next screen. The
next screen shows the
Wavelength Spectrum.
