Summary of Contents for E-line VEL90F

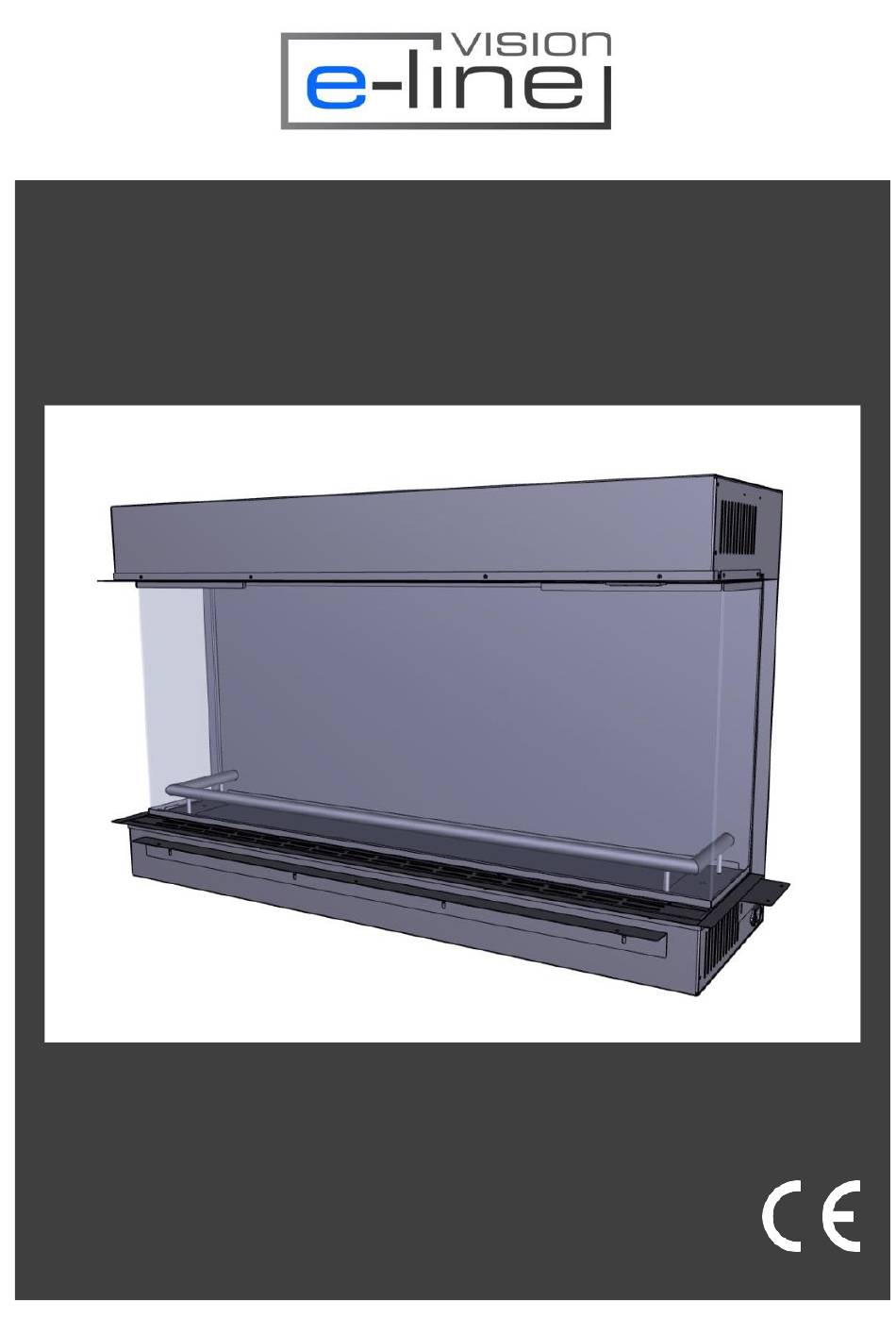

- Page 1 USER AND INSTALLER INSTRUCTION MANUAL FOR ELECTRIC FIRE MODELS: VEL90F - VEL90P - VEL90C PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION AND OPERATION. KEEP THEM IN A SAFE PLACE FOR FUTURE REFERENCE. REV A 11/18...
- Page 2 IMPORTANT INFORMATION WARNING: In order to avoid overheating, do not cover the heater or air vents located on the appliance. CAUTION: Some parts of this product can become very hot and cause burns. This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment.
-
Page 3: Remote Control Battery Information
IMPORTANT INFORMATION This appliance is intended for indoor use only and is not suitable for outdoor operation. Do not use the appliance in rooms with explosive gas (e.g. petrol) or while using inflammable glue or solvent (e.g. when gluing or varnishing parquet floors, PVC etc.). -
Page 4: Manual Control
USER INSTRUCTIONS - OPERATION This appliance can be operated manually (with limited, basic functions only) or by remote control. Manual Control Ensure that the appliance is turned on at the mains. Locate the manual operating buttons situated to the right side of the heater outlet. Power ON/OFF Heater –... - Page 5 USER INSTRUCTIONS - OPERATION Remote Control Current Mode Current Time Battery Level Timer Settings Flame Effect & Timer Mode Heating Mode Temperature Mode Set Date/Time Power/Standby Select Mode...
- Page 6 USER INSTRUCTIONS - OPERATION Remote Control When the appliance is in standby mode, the remote control will show the current time, battery level and operating mode at the top of the screen. The appliance can be turned on by pressing the POWER/STANDBY button on the remote control.
- Page 7 USER INSTRUCTIONS - OPERATION When the appliance is in standby mode, the remote control will show the current time, battery level and operating mode at the top of the screen. Timer Mode In timer mode the appliance can be set to operate and turn off at a set of pre- programmed times.
-
Page 8: Cleaning And Maintenance
USER INSTRUCTIONS - OPERATION The temperature display will now blink. Press +/- buttons to select the correct temperature. Press > to move to the next step. Note: A sound will be heard to indicate you have completed the preset time mode. ... -
Page 9: Installation
INSTALLATION Carefully unpack the appliance and dispose of the packaging responsibly. Keep plastic wrapping away from children. Locating the Appliance This appliance can be installed into an existing chimney breast or a purpose built studwork chimney. If installing into an existing open chimney, precautions must be taken to avoid excessive drafts, moisture or debris that may fall onto the appliance. - Page 10 INSTALLATION Preparing the Appliance The appliance can be modified to offer 3 different styles of fire. VEL90F VEL90C VEL90P 1 x Front Glass Panel 1 x Front Glass Panel 1 x Front Glass Panel 2 x Side Steel Panels 1 x Side Glass Panel...
- Page 11 INSTALLATION Step 2 Next, locate and remove the four screws securing the rail at the bottom of the front glass panel. Remove the rail. Step 3 Remove the front glass panel gently gripping at both sides and carefully pulling forwards from the bottom edge.
- Page 12 INSTALLATION Step 5 Locate the two securing brackets located on the rear of the appliance. Unscrew both, rotate 180 degrees and re-screw onto the appliance as shown in the image. Step 6 Fix the appliance to the wall using the hanging rail supplied.
- Page 13 Replace the glass referring to the process detailed in Steps 2 & 3. If you are using a VEL90F (front glass only) or VEL90C (front and 1 side glass only) you do not need to replace the side glass where a steel side panel will be replaced.
-
Page 14: Troubleshooting
INSTALLATION Shelf/Plinth Fitting When installing a shelf use the long fireplace fixing bracket and two short fireplace fixing brackets. These are screwed to appliance and can be adjusted in height to suite different thicknesses of material. Offer the shelf up to the appliance, sliding onto the fireplace fixing brackets. Secure the shelf by screwing through the holes on the fireplace fixing brackets into the underside of the shelf. -
Page 15: Technical Information
TECHNICAL INFORMATION NICE TOP TO PROVIDE TABLE OF INFORMATION... - Page 16 A brand brought to you by Imperial Point, Express Trading Estate Stone Hill Road, Farnworth, Bolton, BL4 9TN Email: sales@percydoughty.com...
