Getting started
2.2 Configuring
7. In this example, the laser scanner for monitoring the accessible entry area is connected
to channels 1 and 9.

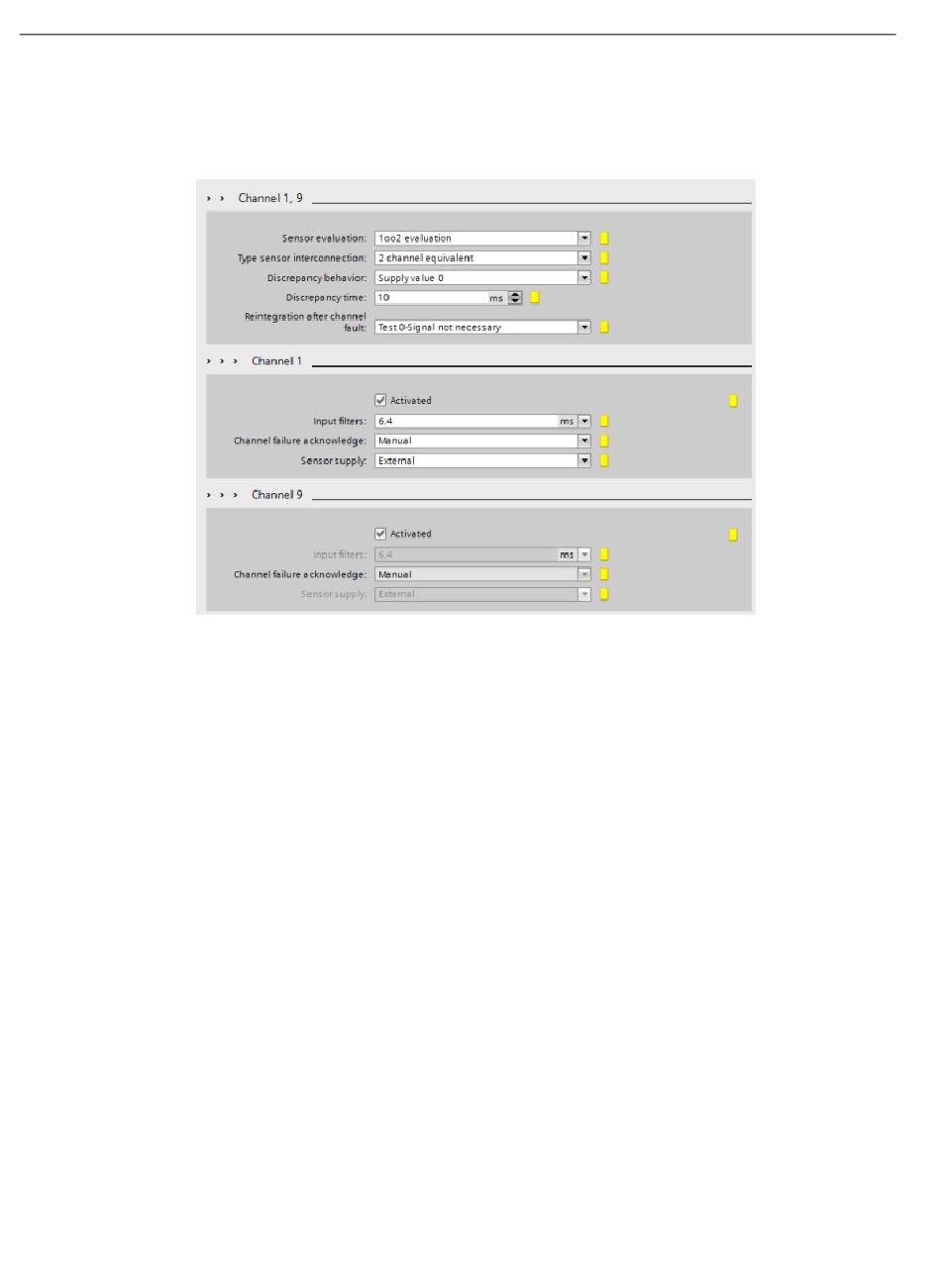

Make the settings as shown in the following figure:
40
S7-1200 Functional Safety Manual
Manual, 02/2015, A5E03470344-AA
