Operating the Getting Started example
This interactive graphic gives you the opportunity to become familiar with how the example
functions in this Getting Started.
Note
Before you try to operate the example, ensure that you have loaded the required Adobe
software (Page 26) on your computer.

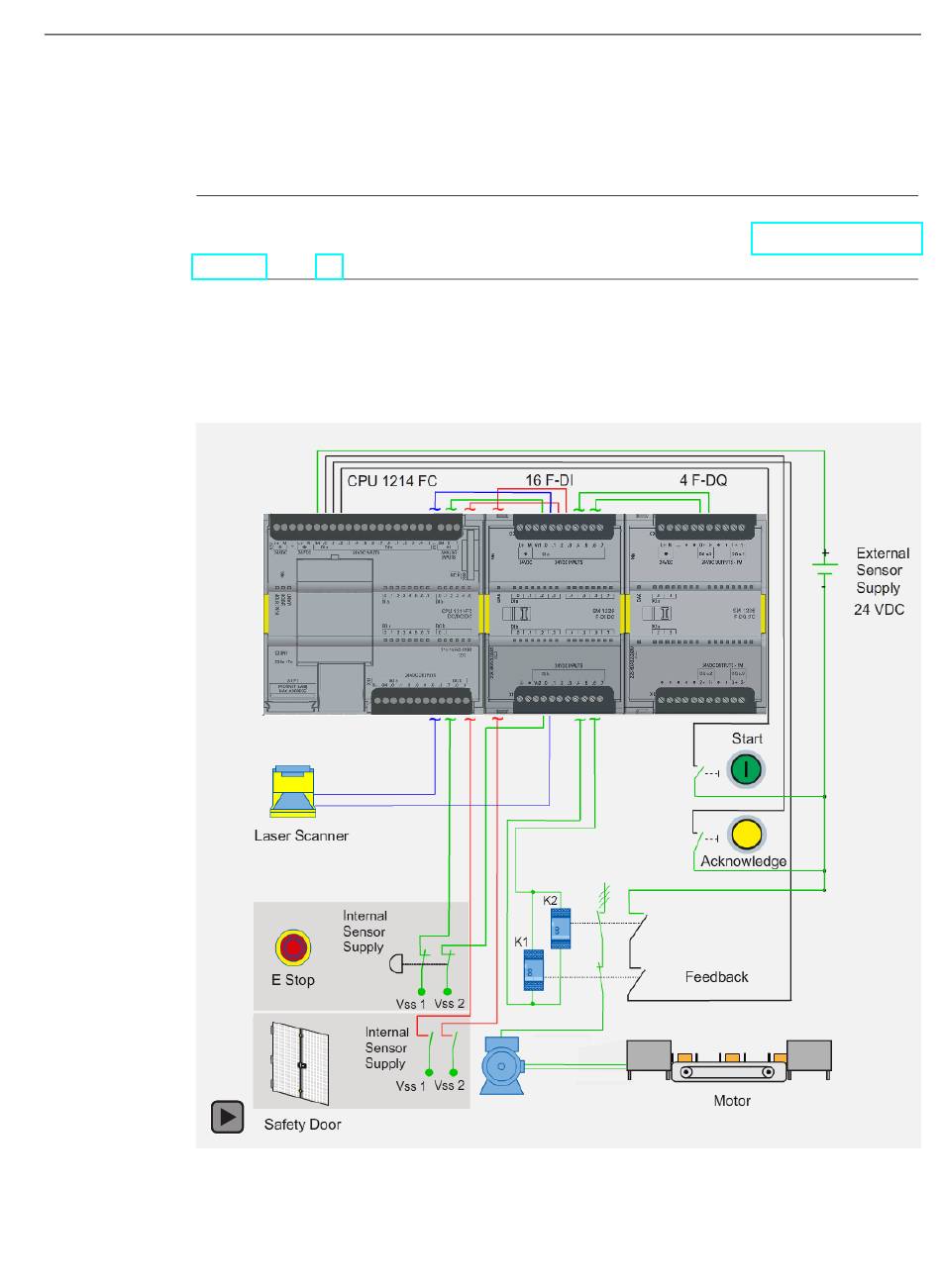

Click the "Play" button to start the animation file and the control elements to operate the
example. You can switch the Laser Scanner, E Stop, or Safety Door on and off to simulate
an unsafe condition. However, you must press the "Acknowledge" button to notify the system
that you have returned to a safe state. Then, you can press the "Start" button to operate the
system again.
