Application Guide
Using Q-SYS with Dolby® Atmos
Rev. A, 28 January 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q-SYS Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for QSC Q-SYS Series

Summary of Contents for QSC Q-SYS Series

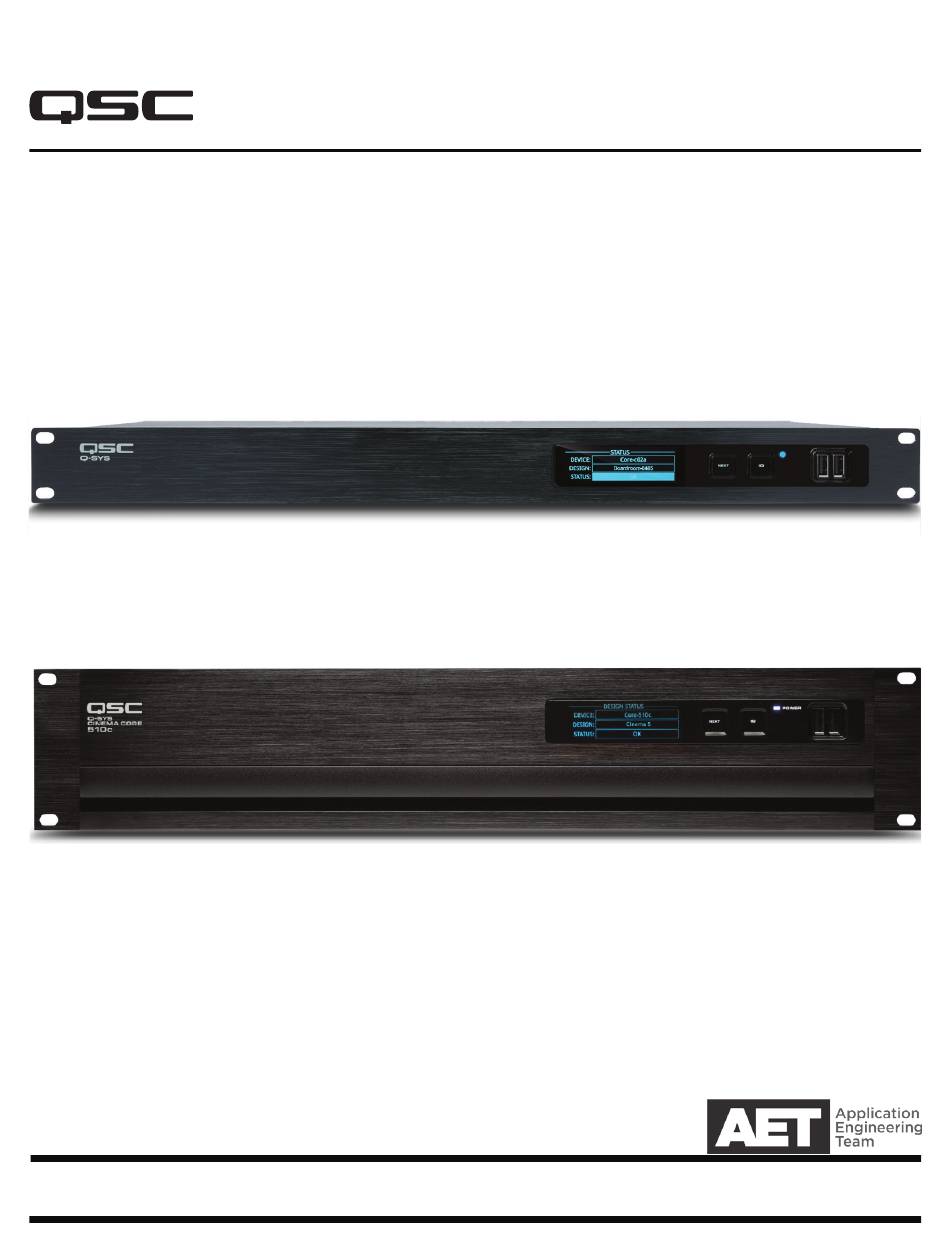

  • Page 1 Application Guide Using Q-SYS with Dolby® Atmos Rev. A, 28 January 2019...
  • Page 2 The versatility and processing power of Q-SYS and Q-SYS Core Processors make them an ideal cinema audio infrastructure to implement a Dolby Atmos system on. The QSC cinema core processor family comprises two models, the Core 110c and the Core 510c.
  • Page 3 3. Click the core processor. Click Network Services. 4. A window will open showing all the network services available for or configured for the core processor. Click Edit and then clear Q-SYS Audio Enabled Peripherals on LAN B. Click Save. QSC,LLC Application Guide...
  • Page 4 NOTE: Make sure you have Dolby Atmos and AES67 enablement licenses or keys in the CP850 or IMS3000. These are installed or enabled through a Key Delivery Message (KDM). Contact Dolby for information. QSC, LLC Using Q-SYS with Dolby® Atmos...
  • Page 5 • Dolby CP850 processor • Q-SYS Core 110c • QSC DPA-Q power amplifiers • Managed switches separating Q-SYS and management into separate VLANs. Use separate switches for each LAN if you do not have the IT support resources available to set up VLANs on managed switches.
  • Page 6 • Dolby CP850 processor • Q-SYS Core 510c • QSC DPA-Q power amplifiers • Managed switches separating Q-SYS and management into separate VLANs. Use separate switches for each LAN if you do not have the IT support resources available to set up VLANs on managed switches.
  • Page 7 Reliability strategies can employ varying degrees of redundancy to suit various cost targets and a range of available resources. For more information, please see the QSC white paper on Q-LAN architecture and redundancy at https://www.qsc.com/ resource-files/whitepapers/q_wp_sys_dn_qsys_qlan_networkredundancy.pdf.
  • Page 8 Outside the U.S. +1 (714) 754-6175 1675 MacArthur Boulevard Fax: +1 (714) 754-6174 Costa Mesa, CA 92626 USA © 2018 QSC, LLC. All rights reserved. QSC, and the QSC logo are registered trademarks in the U.S. Patent and Trademark Office and other countries.

This manual is also suitable for:

Q-sys core cinema 110cQ-sys cinema core 510c
