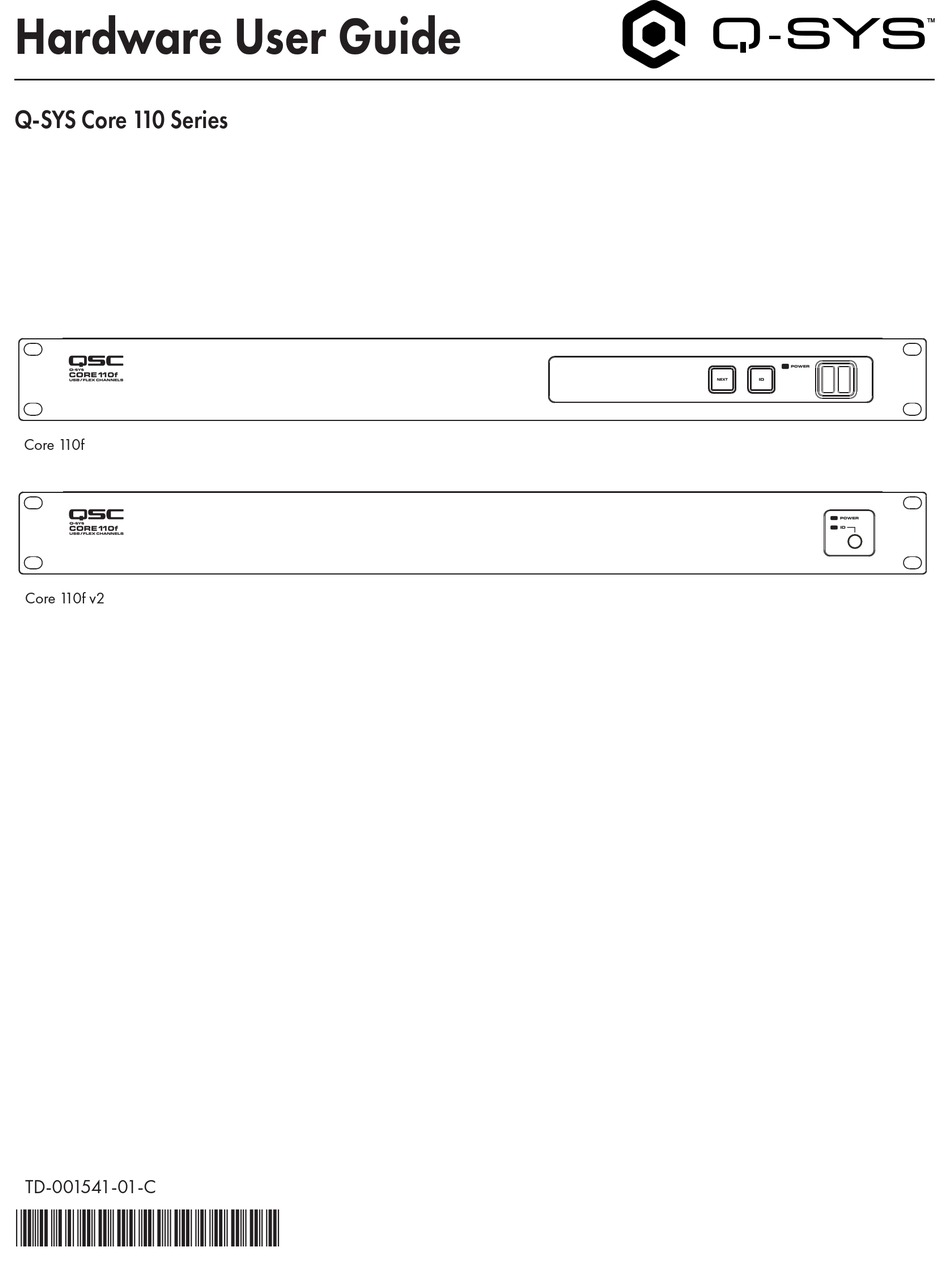

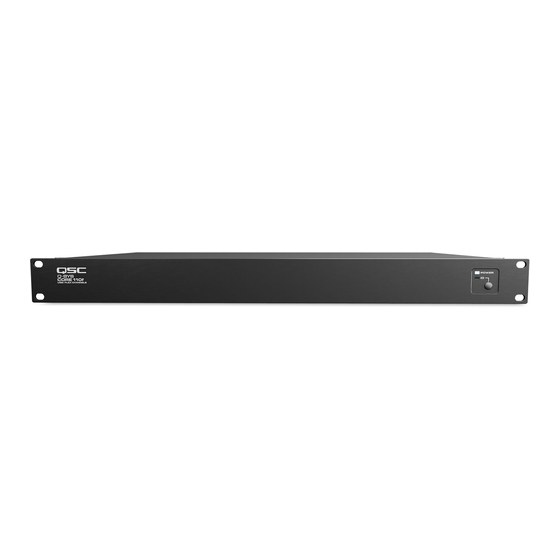

- Page 1 Hardware User Guide Q-SYS Core 110 Series Core 1 10f Core 1 10f v2 TD-001541-01-C *TD-001541-00*...
-
Page 2: Important Safety Instructions
EXPLANATION OF TERMS AND SYMBOLS The term “WARNING!” indicates instructions regarding personal safety. If the instructions are not followed the result may be bodily injury or death. The term “CAUTION!” indicates instructions regarding possible damage to physical equipment. If these instructions are not followed, it may result in damage to the equipment that may not be covered under the warranty. -
Page 3: Maintenance And Repair
QSC authorized service station or an authorized QSC International Distributor. QSC is not responsible for any injury, harm or related damages arising from any failure of the customer, owner or user of the apparatus to facilitate those repairs. -
Page 4: Industry Canada
The QSC Q-SYS Core 1 10 Series is in compliance with European Directive 201 1/65/EU – Restriction of Hazardous Substances (RoHS2). The QSC Q-SYS Core 1 10 Series is in compliance with “China RoHS” directives. The following chart is provided for product use in China and its territories: QSC Q-SYS Core 1 10 Series 部件名称... -
Page 5: Package Contents
Flex Channels Mic/Line Out External Power (orange) (blue) (green) (green) RS232 Tx/Rx Core 1 10 Series QSC Warranty Rubber feet (green) Hardware User TD-000453 Guide TD-001541 * Not applicable to Core 1 10f v2 Installation The following steps are written in the recommended installation order. - Page 6 Front Panel – Core 110f DESIGN STATUS DEVICE: <Core Name> DESIGN: <Design Name> STATUS: <Status> — Figure 1 — OLED Display – displays information about the core's settings 3. ID button – locates the Core in Q-SYS Designer GUI and and status.
- Page 7 Rear Panel (left side) All audio inputs and outputs use one 3-position, 3.5mm Euro connector for each channel. GPIO uses one 10-position 3.5mm Euro connector for each row (not applicable to the Core 1 10f v2). All inputs and outputs are configured in Q-SYS Designer Software. —...
-
Page 8: Input/Output Connectors
Core 110 Series Audio Connections Input / Output Connectors Balanced Unbalanced Figure 5 – Figure 8 3-Pin, color-coded, Euro Connectors • Mic/Line Inputs (8 orange) — Figure 5 — — Figure 6 — • Flex Channels (8 blue) • Mic/Line Outputs (8 green) CAUTION!: A single channel consists of three pins. - Page 9 Core 110 Series Communication and Power Connectors Make the following connections as required. Refer to Figure 9. Telephone Cable, RJ12,6-Conductor 2-pin Euro connector – for +12VDC 10A 3-pin Euro connector – for RS232 TX and RX USB Type B – for external devices, not supplied RJ45/Cat5E –...
- Page 10 System Status SYSTEM STATUS Refer to Figure 1 1 < rmware number> FIRMWARE: • Firmware – A three-section number identifying the major release, minor release, and maintenance release. For example, 5.0.06. <temperature in Celsius > TEMP: • Temp – The current chassis temperature of the Core. ◦...
-
Page 11: Specifications And Dimensions
Specifications and Dimensions Product specifications and dimension drawings for the Core 1 10 Series can be found online at qsys.com. Compliance • FCC Part 68 / TIA-968-B (USA) • JATE (Japan) • Industry Canada CS-03 (Canada) • ES203 021, CE, RoHS (Europe) •... -
Page 12: Customer Support
© 2022 QSC, LLC All rights reserved. QSC, the QSC logo, Q-SYS, and the Q-SYS logo are registered trademarks of QSC, LLC in the U.S. Patent and Trademark Office and other countries. Patents may apply or be pending. All other trademarks are the property of their respective owners.
