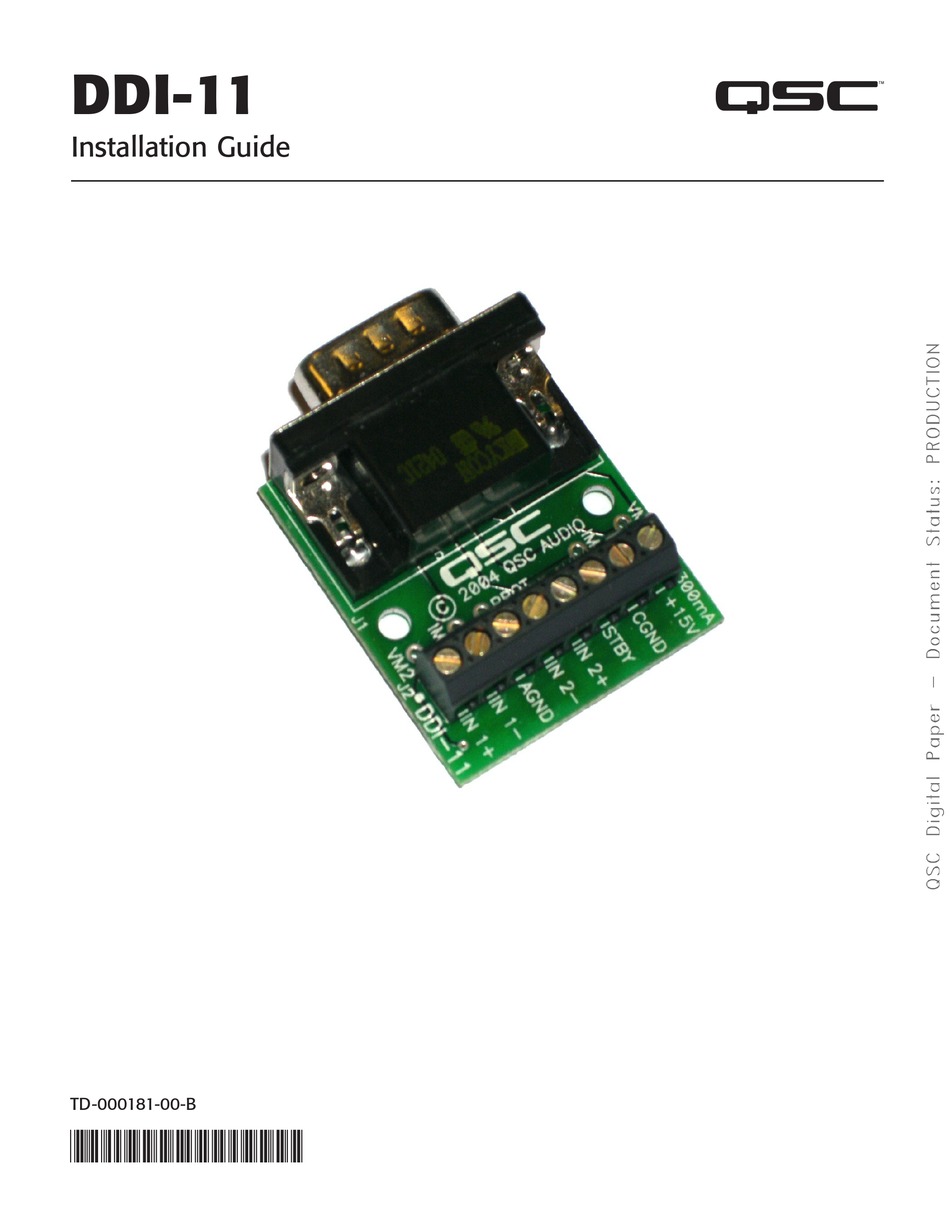

- Page 1 DDI-11 Installation Guide TD-000181-00-B *TD-000181-00*...
-
Page 3: Important Safety Instructions
EXPLANATION OF SYMBOLS The term “WARNING!” indicates instructions regarding personal safety. If the instructions are not followed the result may be bodily injury or death. The term “CAUTION!” indicates instructions regarding possible damage to physical equipment. If these instructions are not followed, it may result in damage to the equipment that may not be covered under the warranty. - Page 4 Damage to, or loss of any software or data residing on the product is not covered. When providing repair or replacement service, QSC will use reasonable efforts to reinstall the product’s original software configuration and subsequent update releases, but will not provide any recovery or...
- Page 5 ISA. Opening the closure will restart the power supply, with no inrush current surge. The standby terminal is isolated through a diode, so you can gang together any number of amplifiers equipped with DDI-11 cards to be controlled by a single switch closure. ISA Series amplifiers, however, do not have this feature.
-
Page 6: Power Supply
2. Plug the card into the DataPort. Use the two screws on each side of the DataPort to secure it; do not overtighten them. 3. To attach wires to the DDI-11 terminal strip, strip about 5 mm (0.2”) of insulation from the wire. Twist the exposed wire strands together and make sure there are no stray ones. - Page 8 © 2011 QSC Audio Products, LLC. All rights reserved. QSC™ and the QSC logo are registered trademarks of QSC Audio Products, LLC in the U.S. Patent and Trademark office and other countries. Tilt-Direct, Intrinsic Correction, DEEP and GuardRail are all trademarks of QSC Audio Products, LLC. powerCON is a registered trademark of Neutrik.
